Photo requirements

Device photo is very important. It tell us a lot of usefull information like:

  • controller name
  • chip type and quantity
  • chip order
  • suggestion about power mode
  • reference to past and future cases
  • potential cause of failure

Please make high quality photo by scanner or camera from both sides of PCB according to this rules:

  • connector to the left
  • full PCB view with connector from top view
  • photo clear, not blurry, not from angle

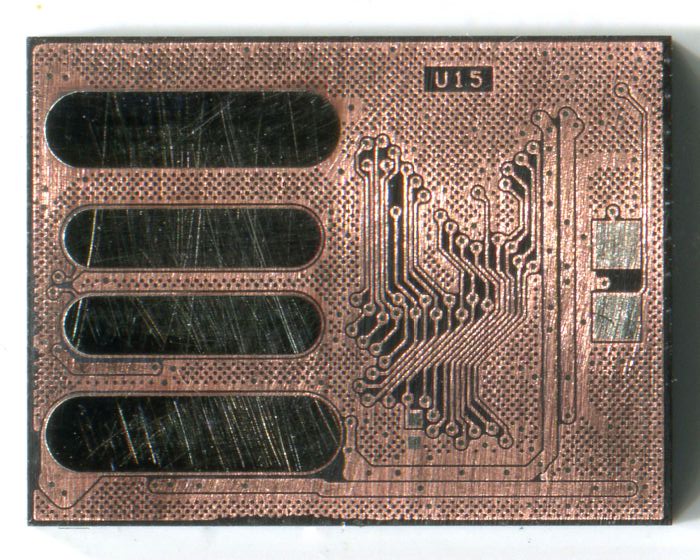

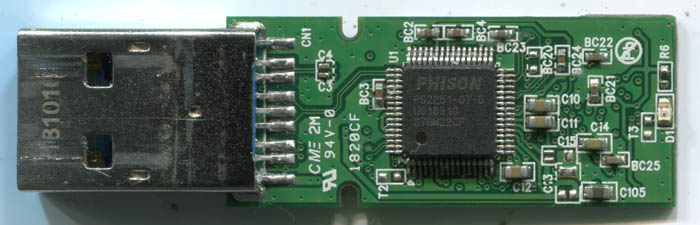

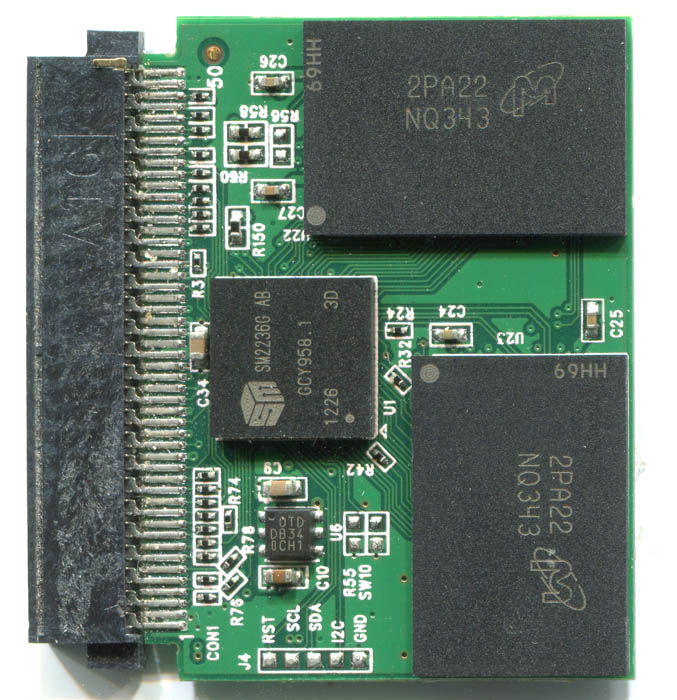

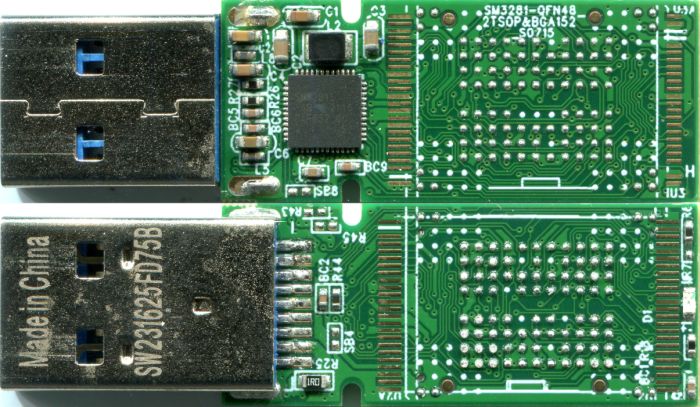

Good photo example


Bad photo example

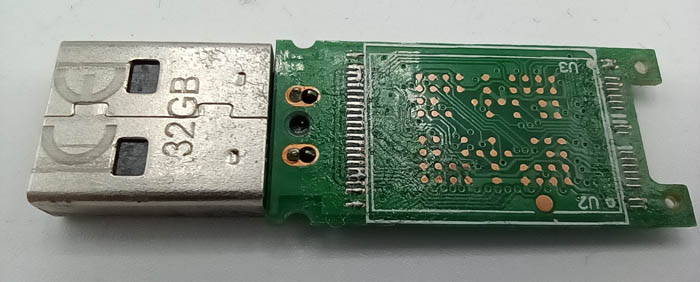

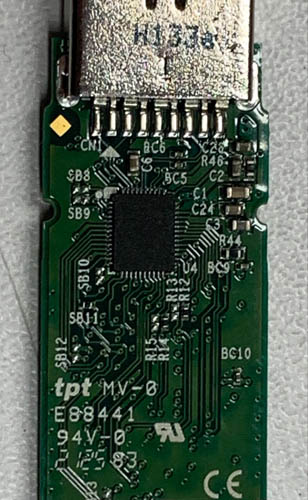

From angle

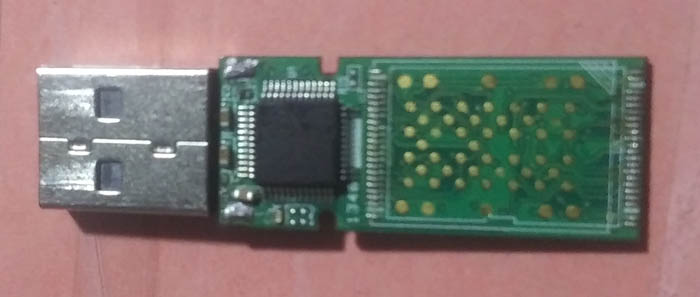

Blurry, from angle

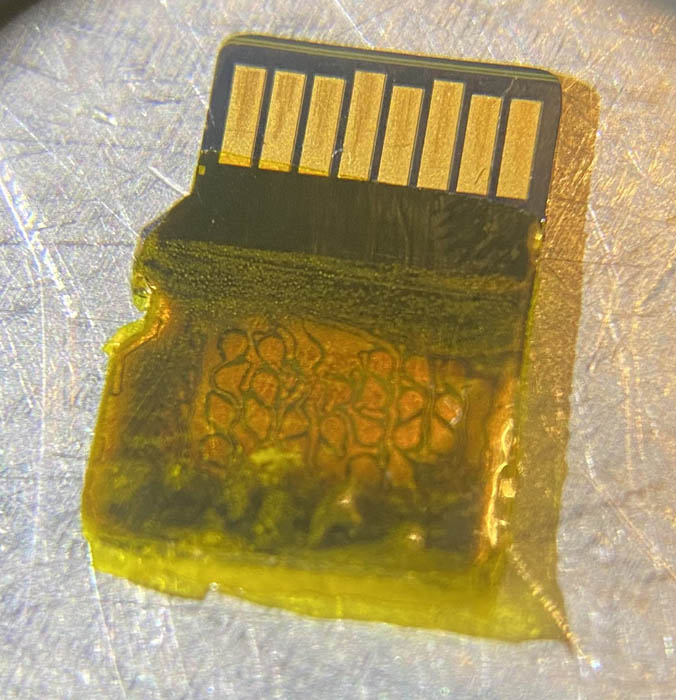

Tape on monolith, from angle


Cutted connector and part of PCB
