Monolith drives are very popular now. We meet a lot of different flashes on market. There is no standard. We want to present monoliths database. At the moment we have about 600 pinouts for monoliths. This list is not full - we don't publish all of the photos. We will try to make updates on the regular basis.

Some information:

  • We are able solve almost all flash cases, even this where TS gave up

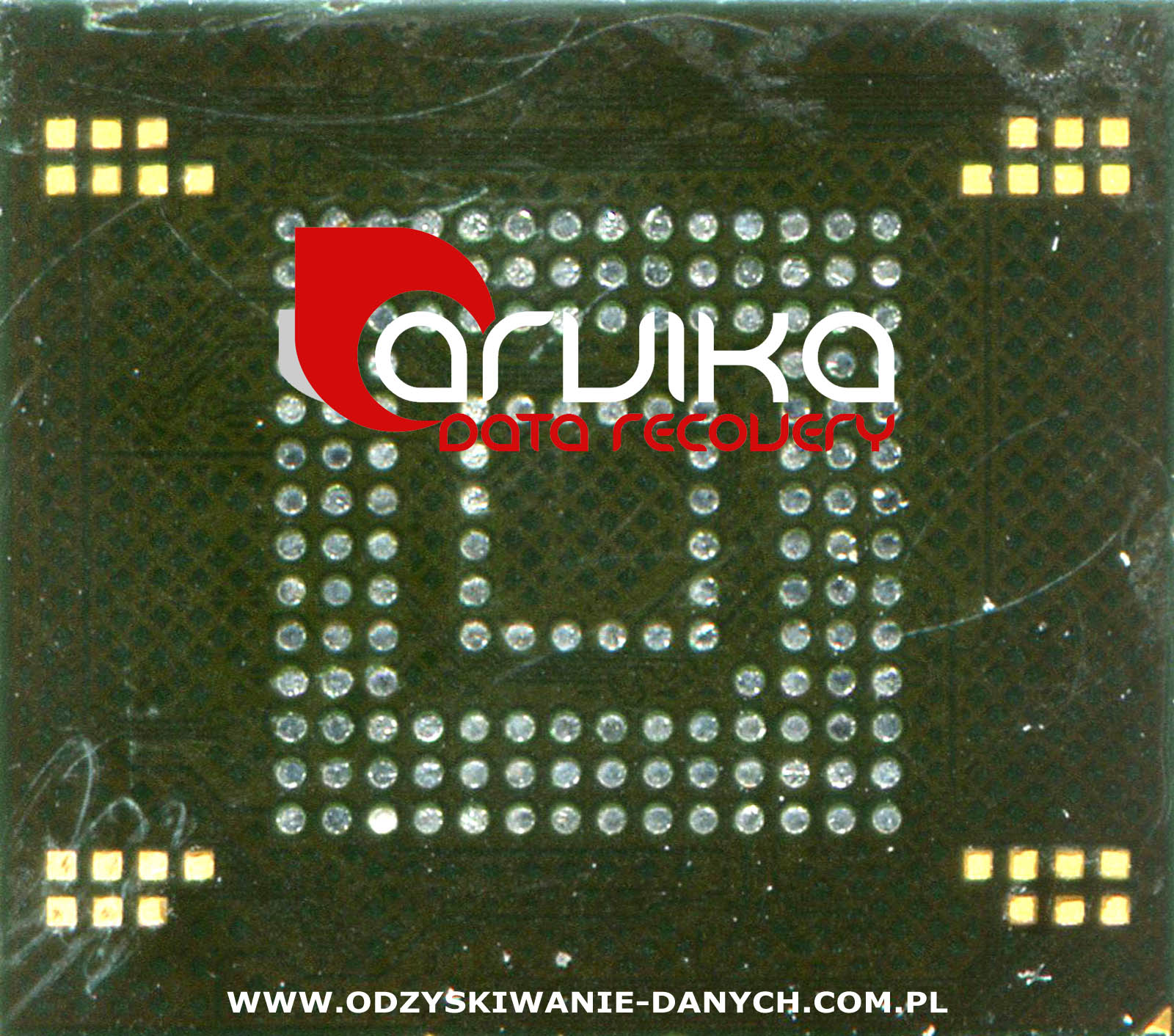

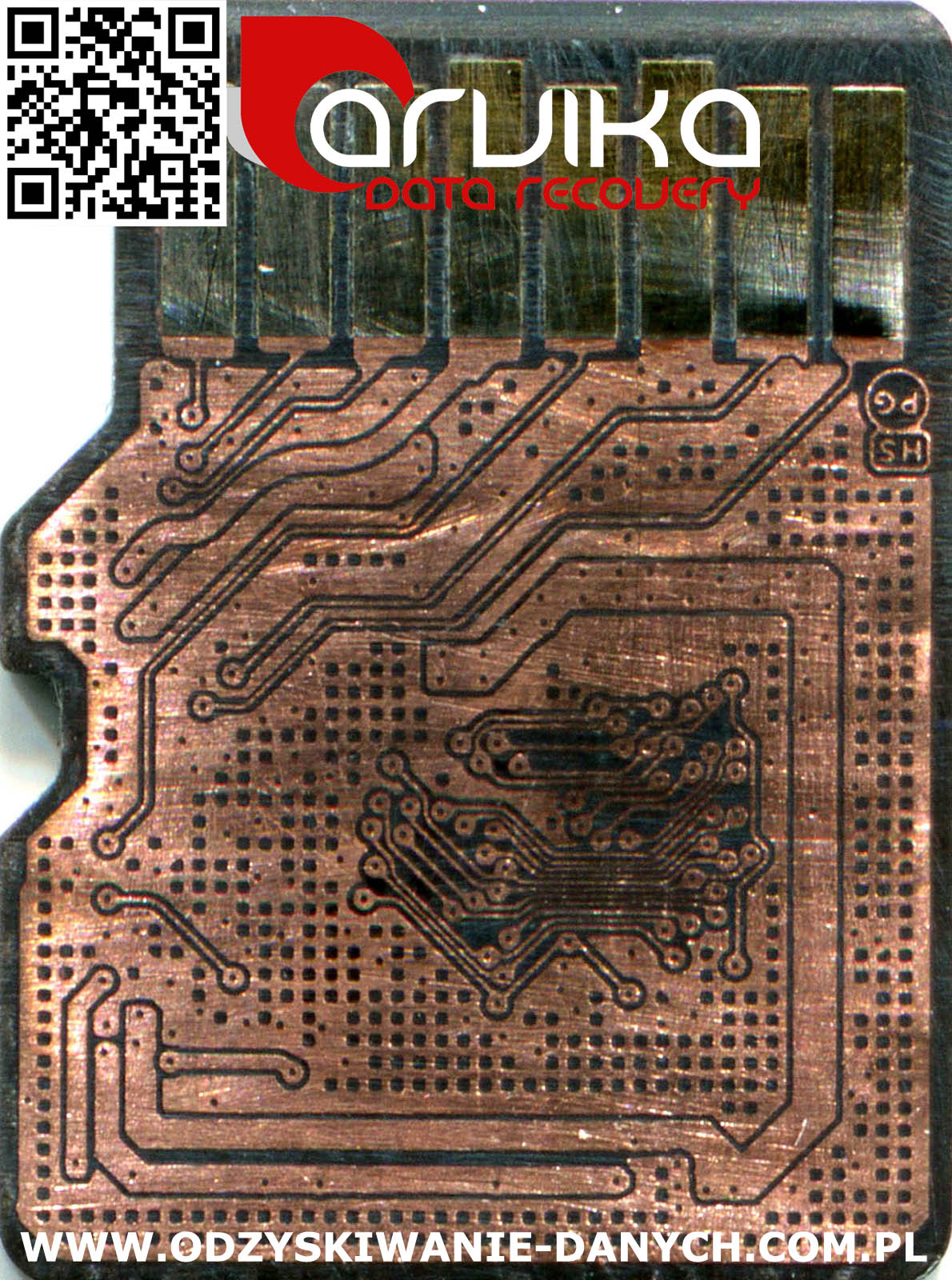

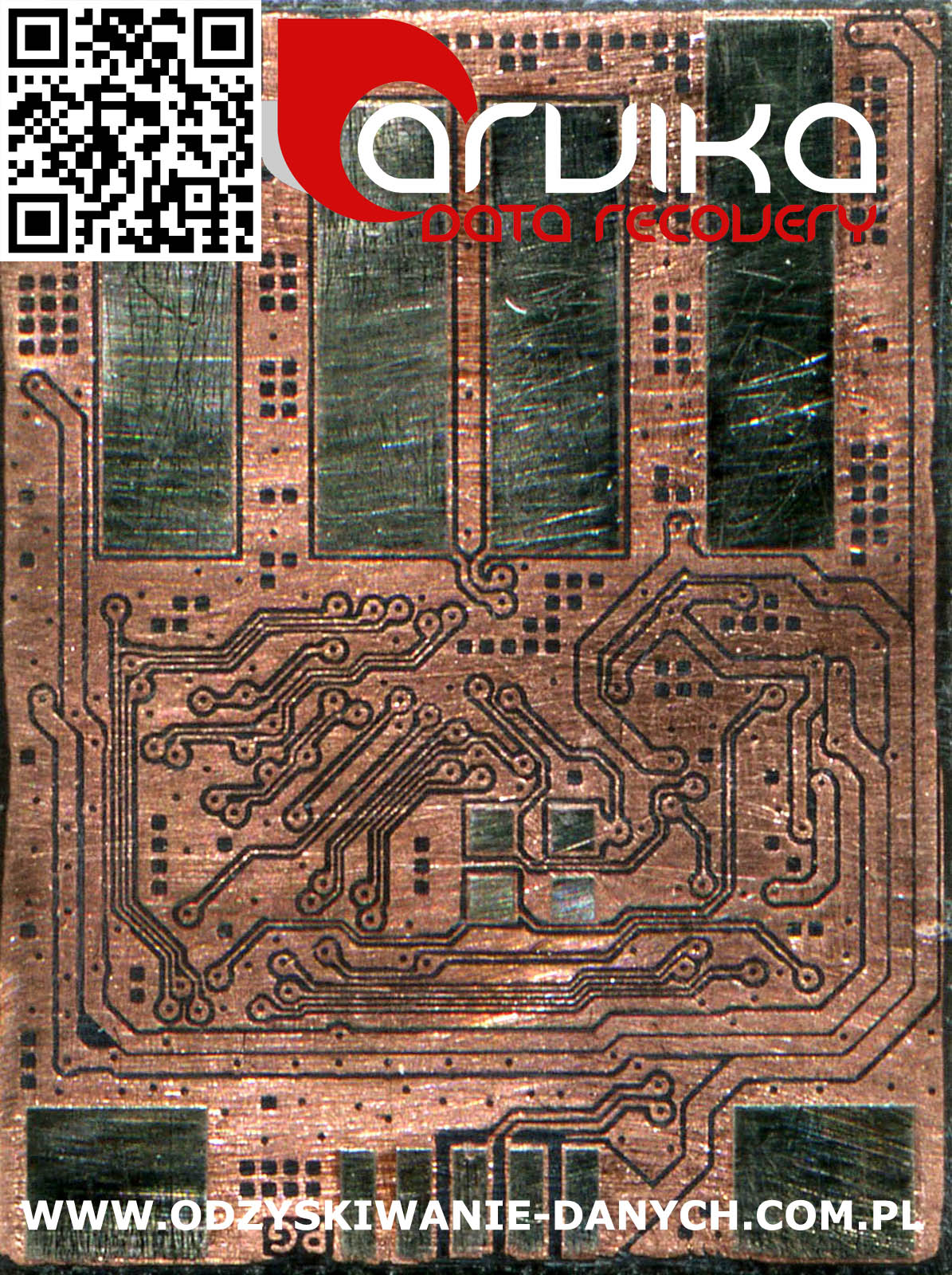

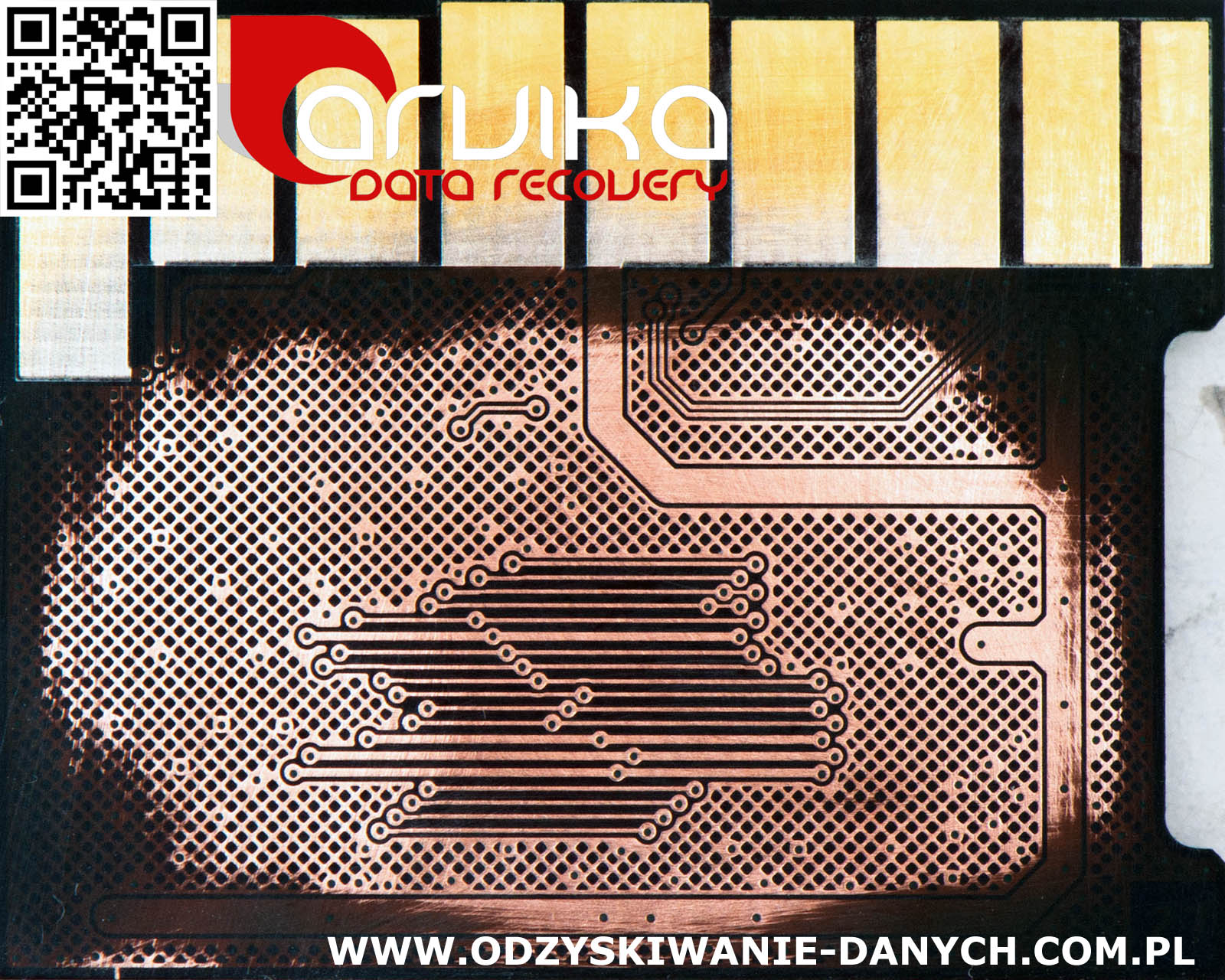

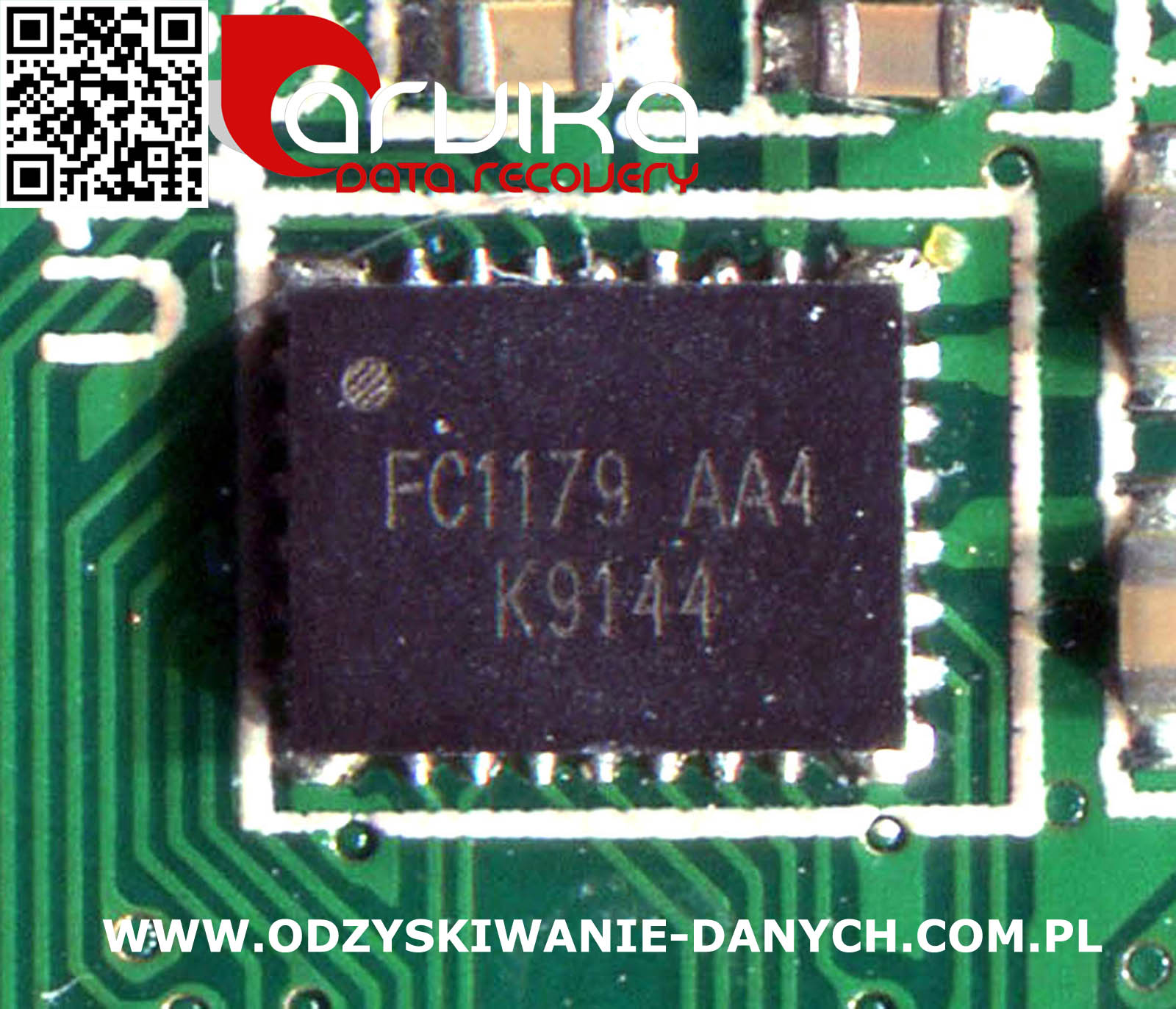

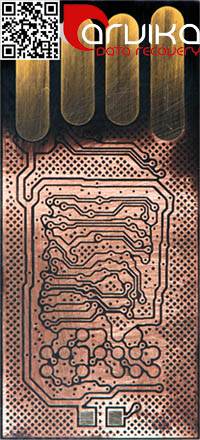

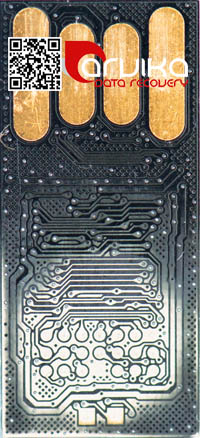

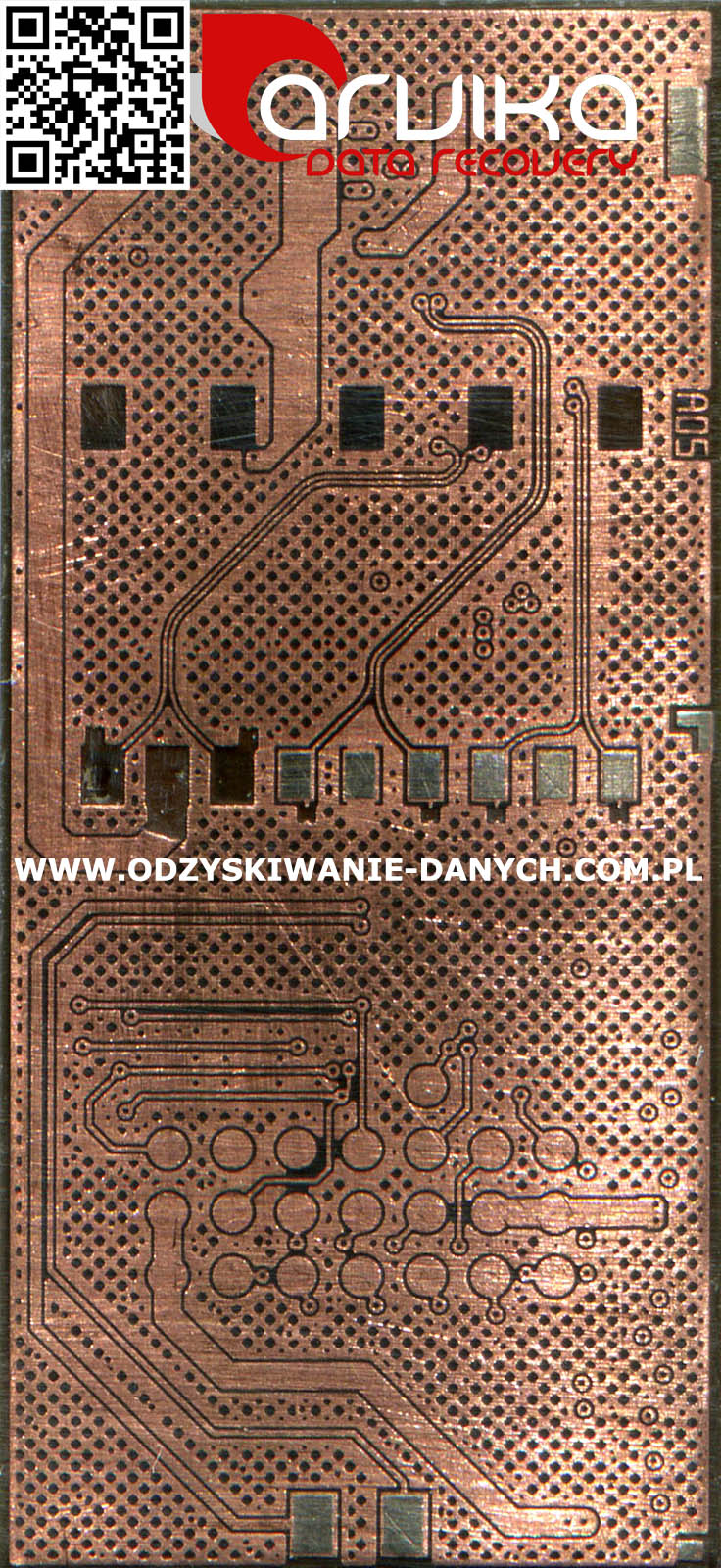

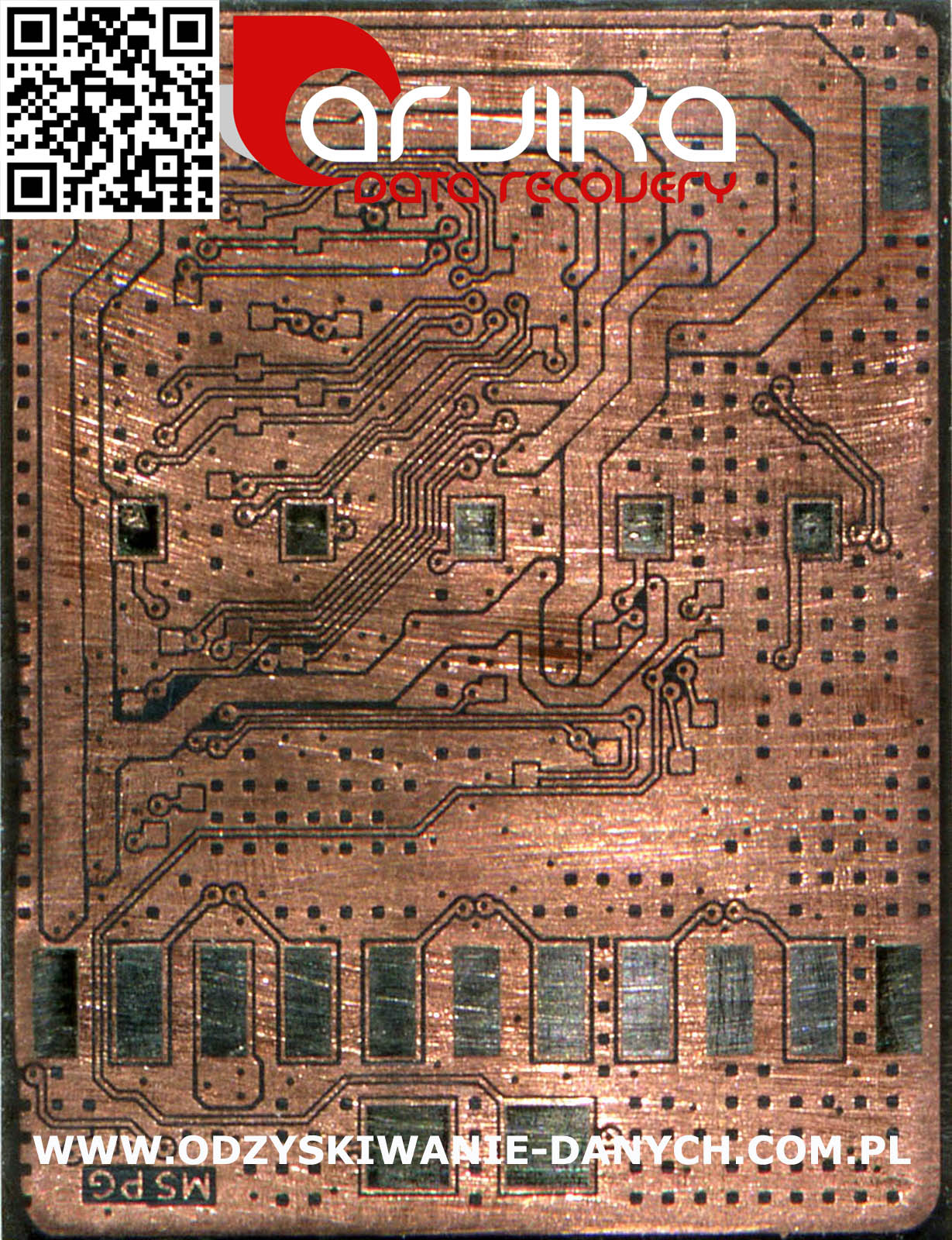

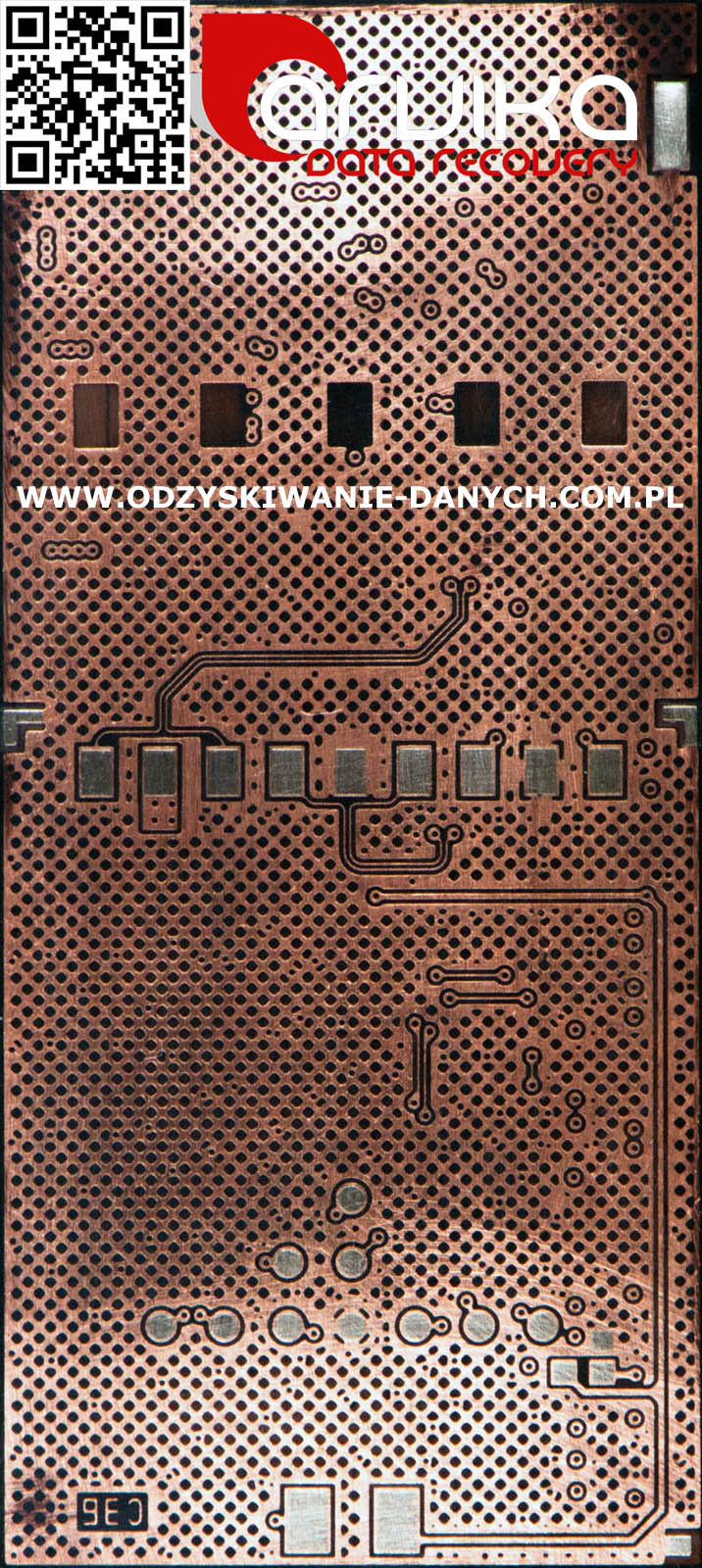

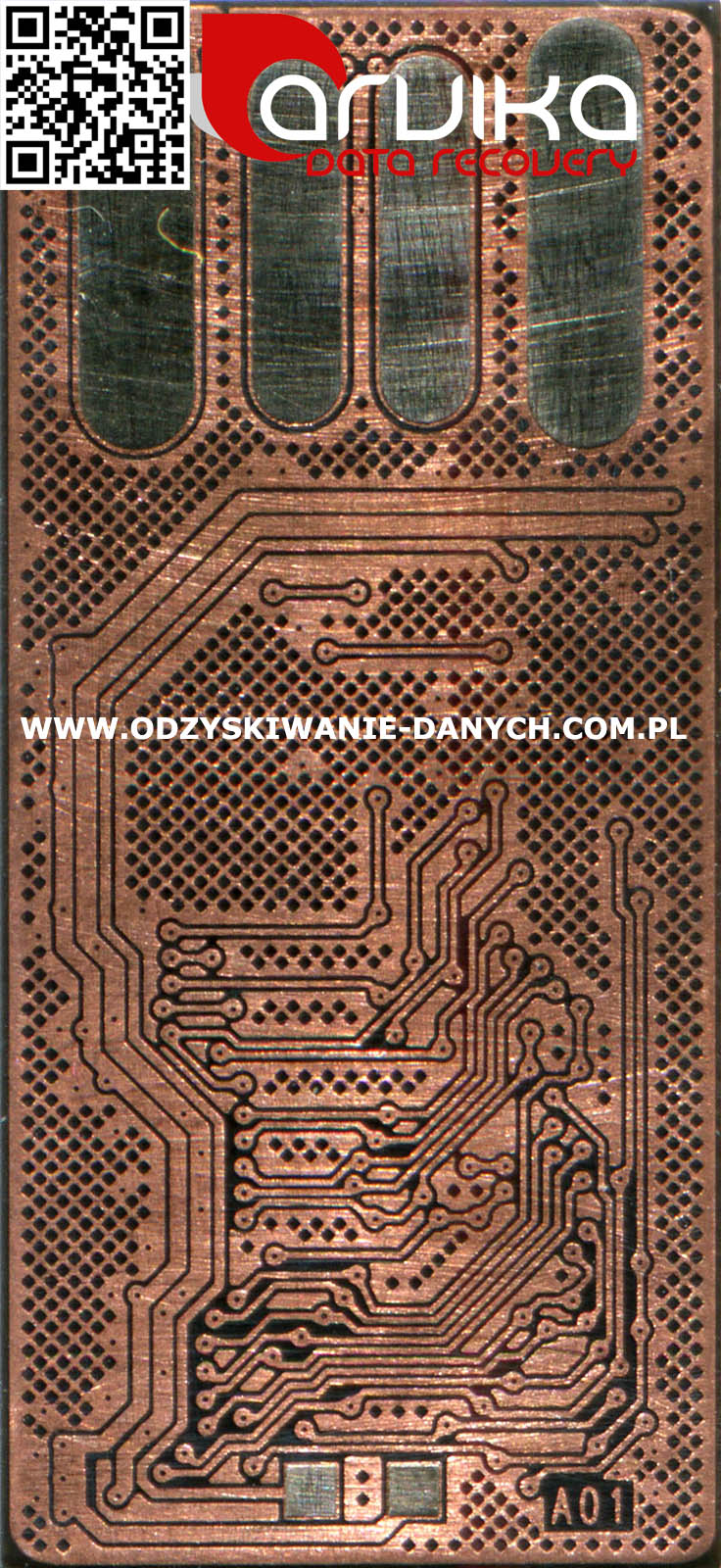

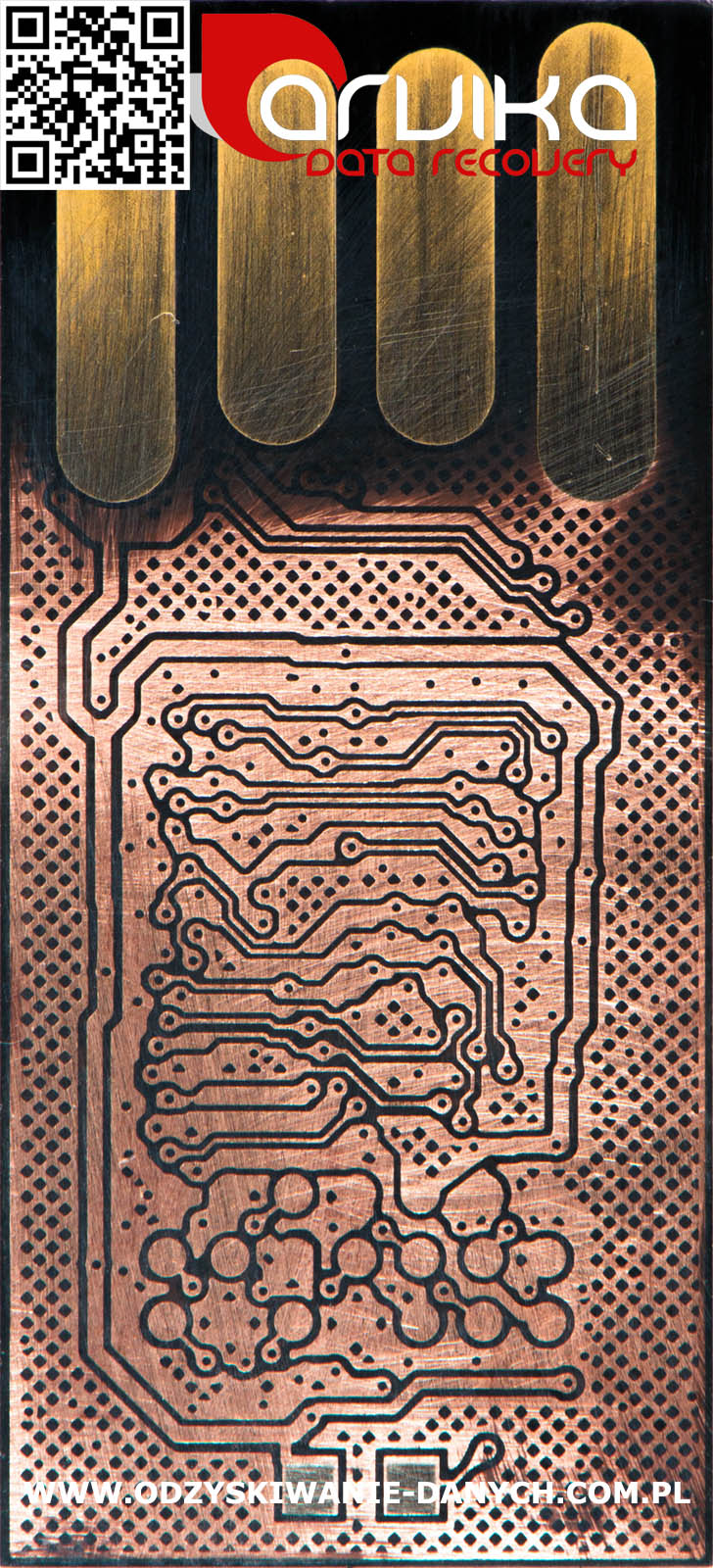

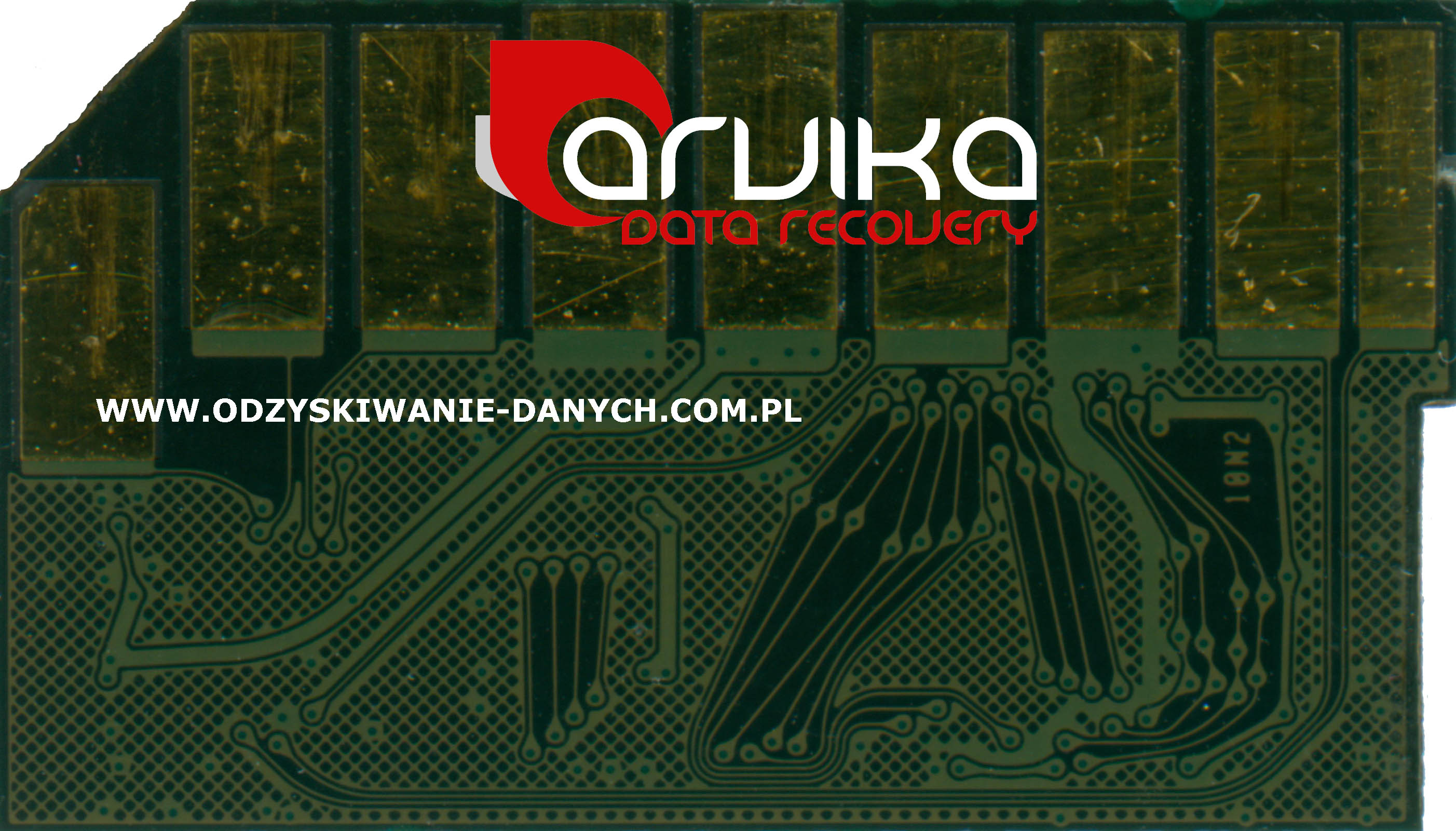

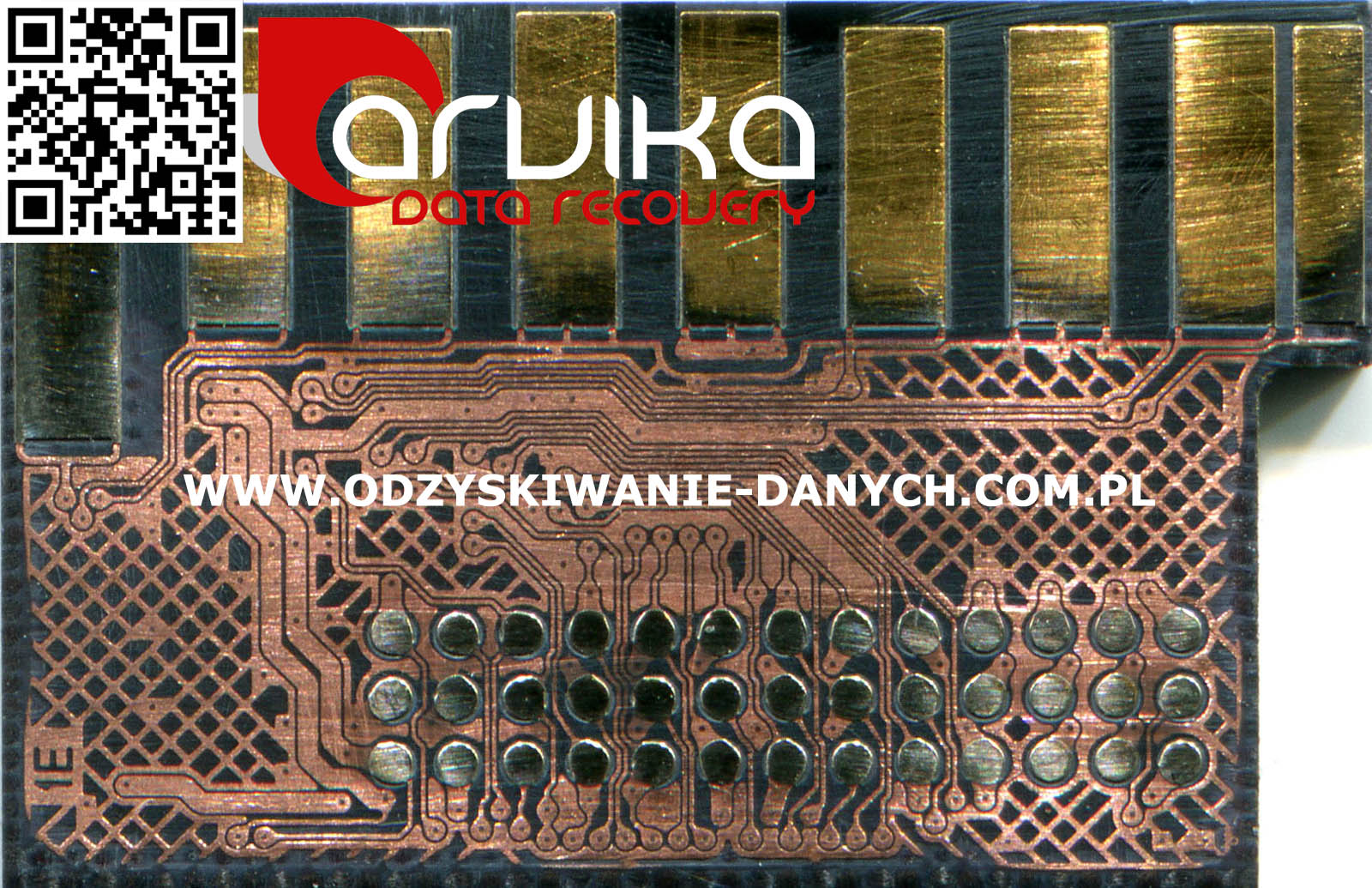

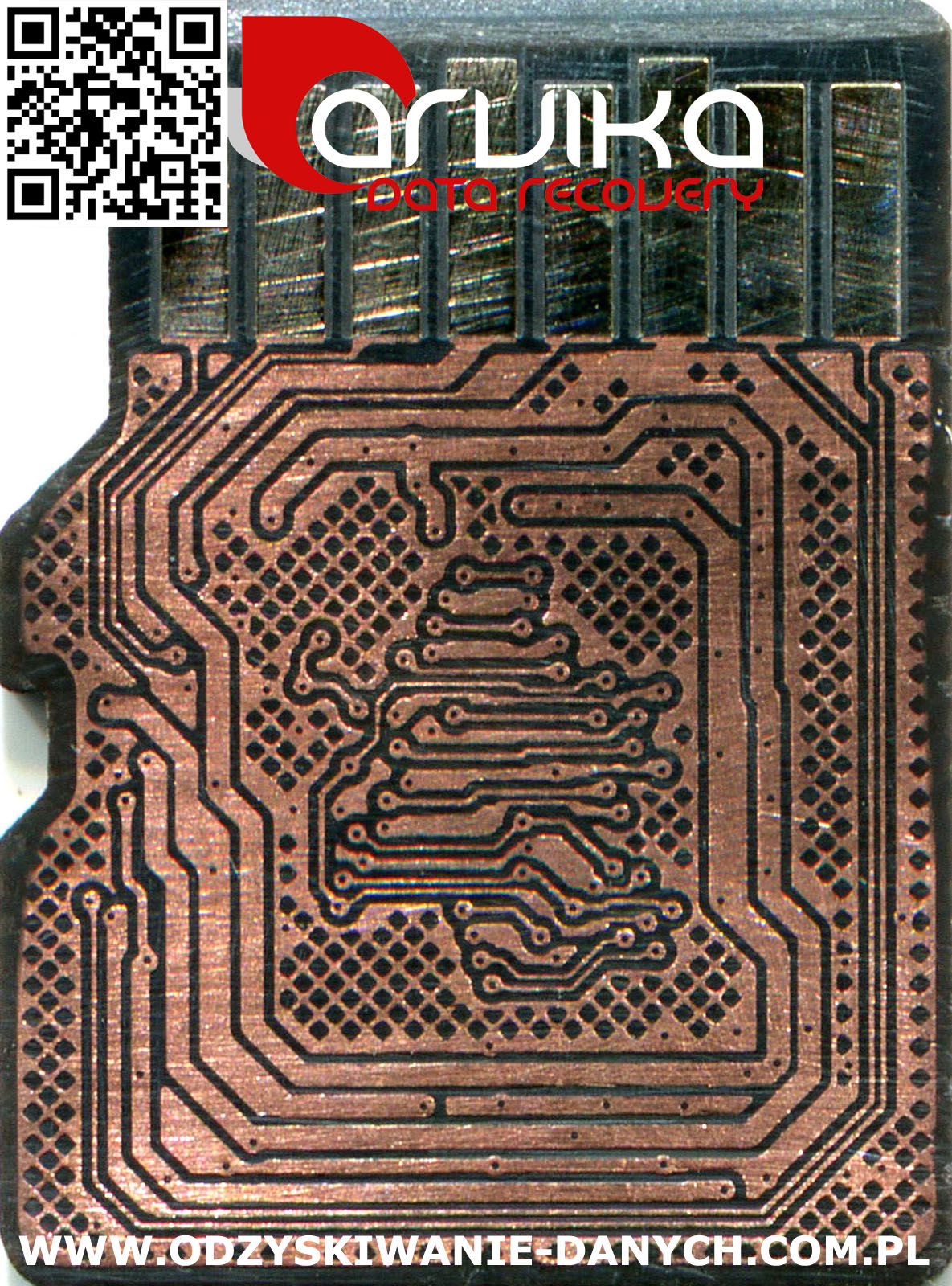

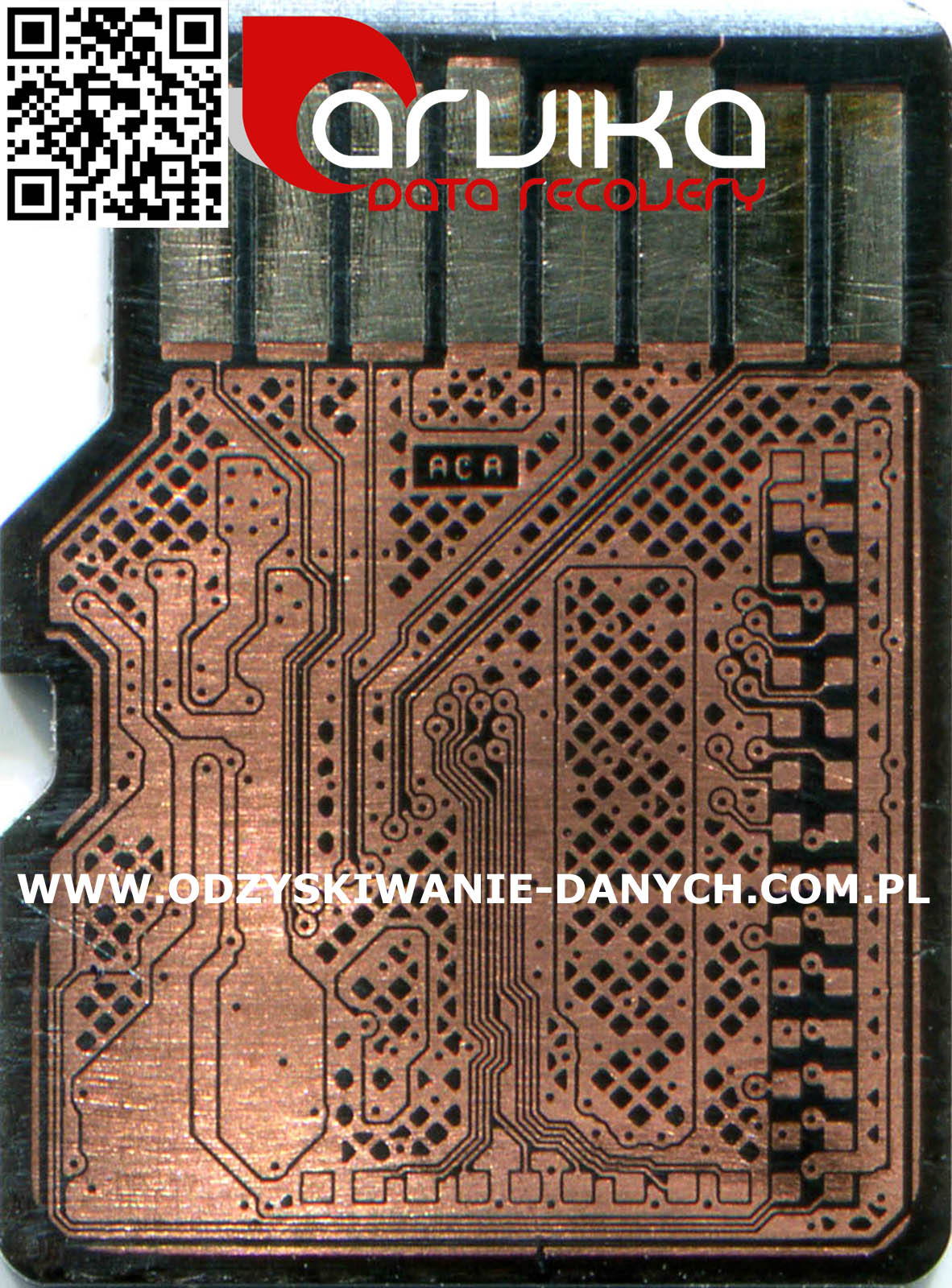

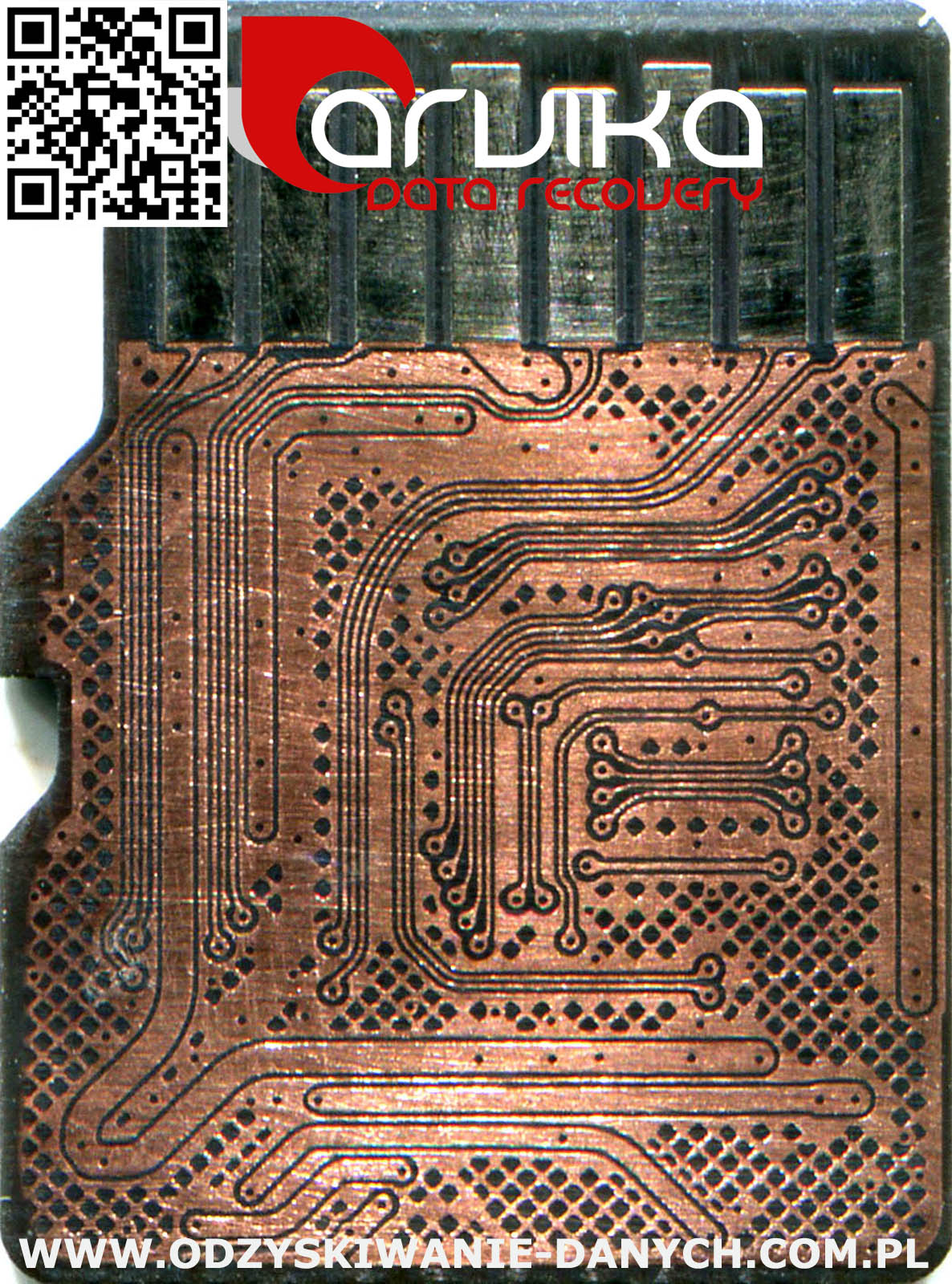

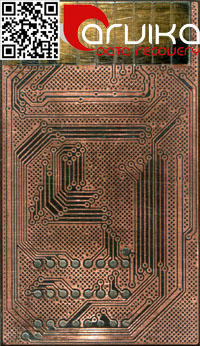

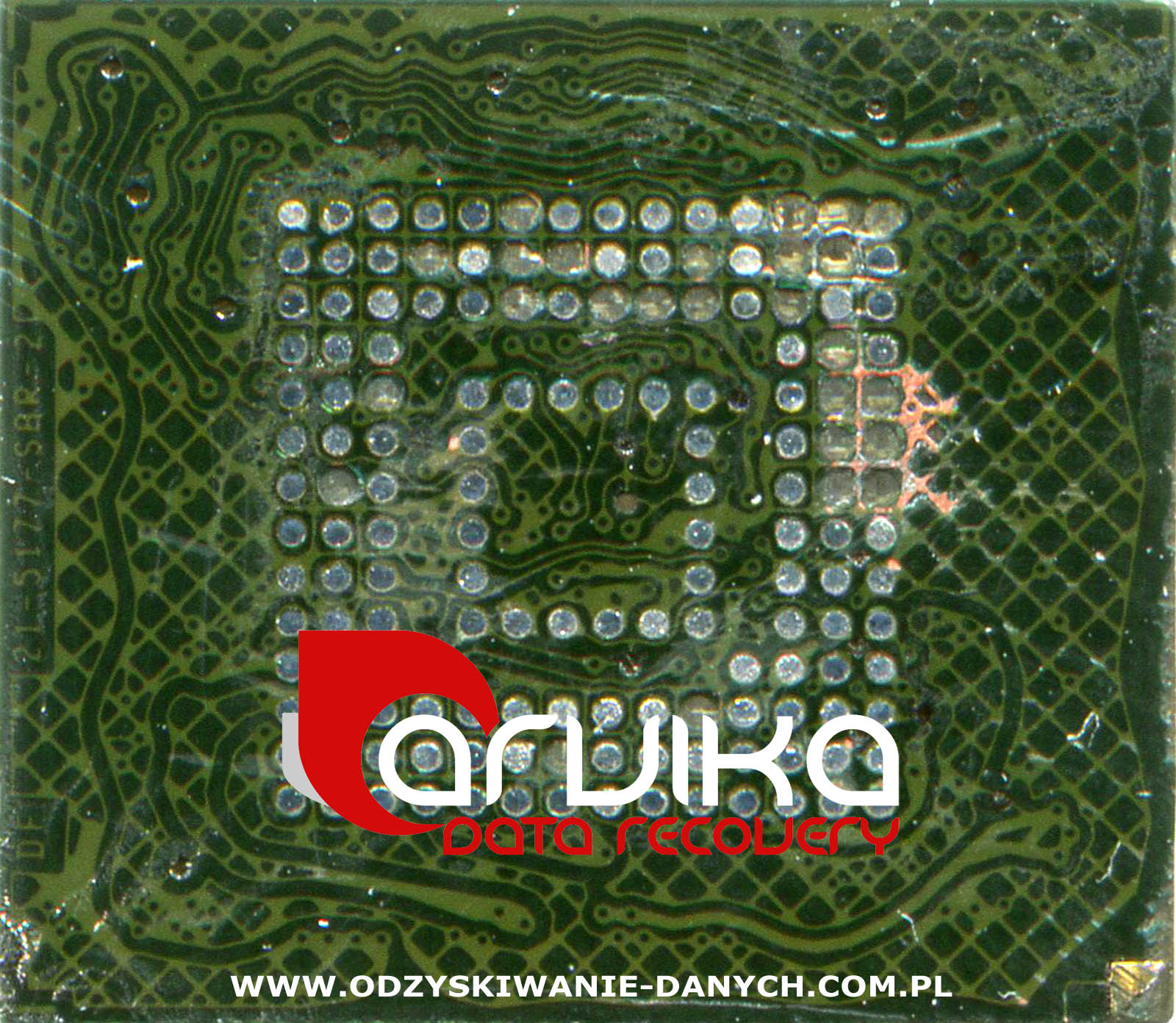

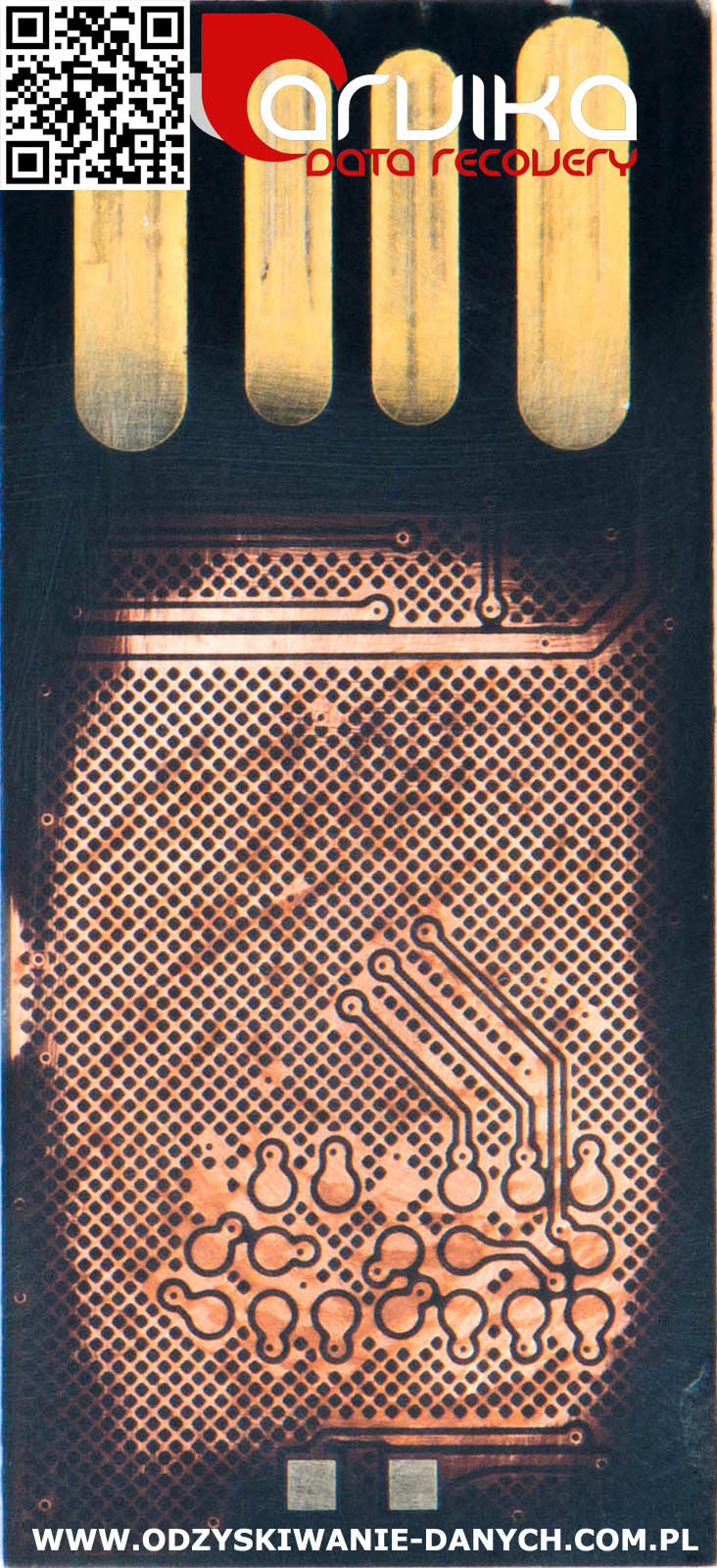

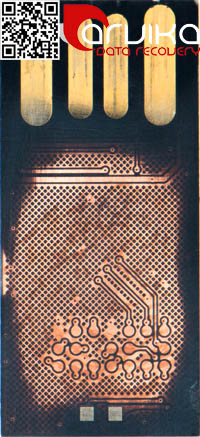

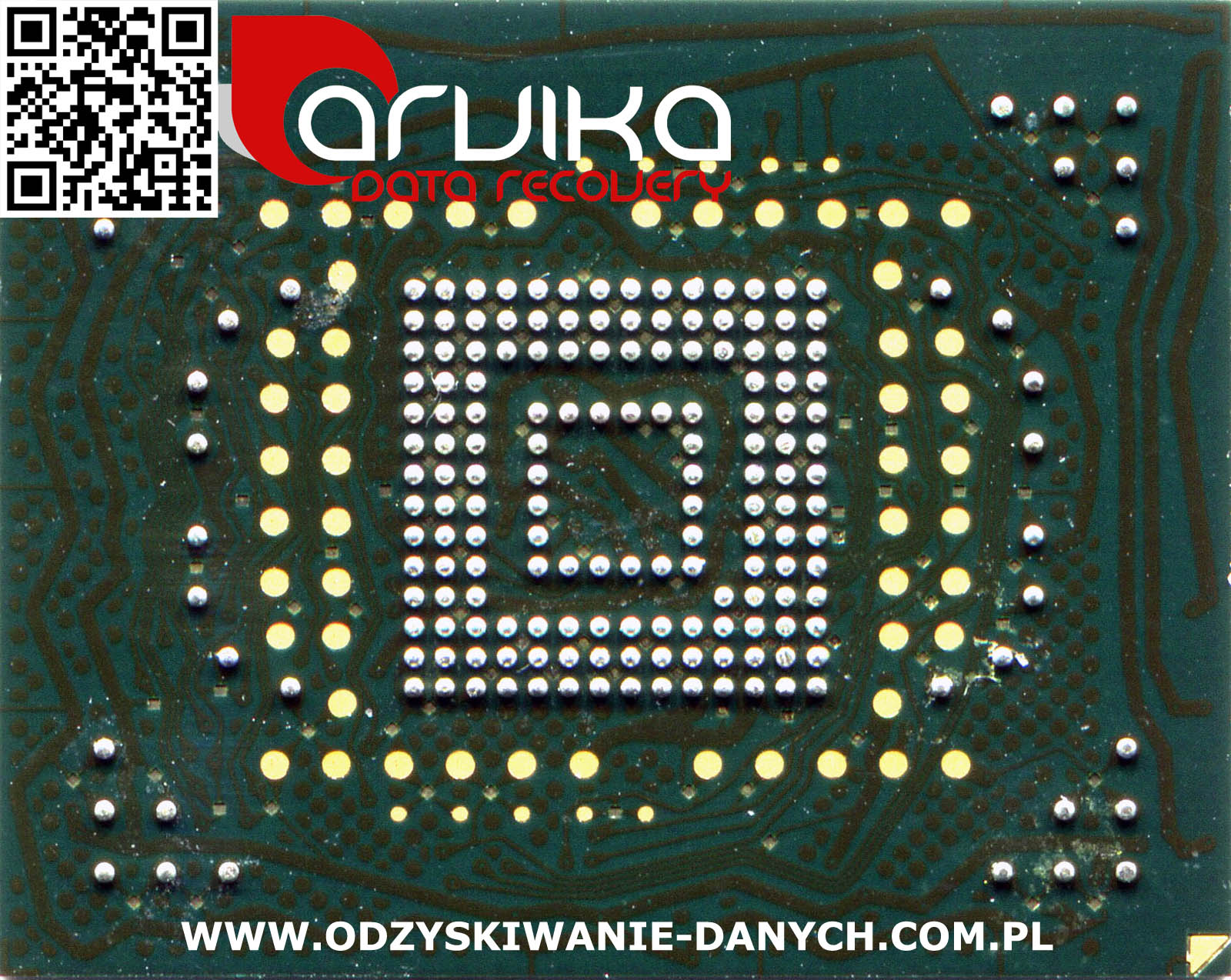

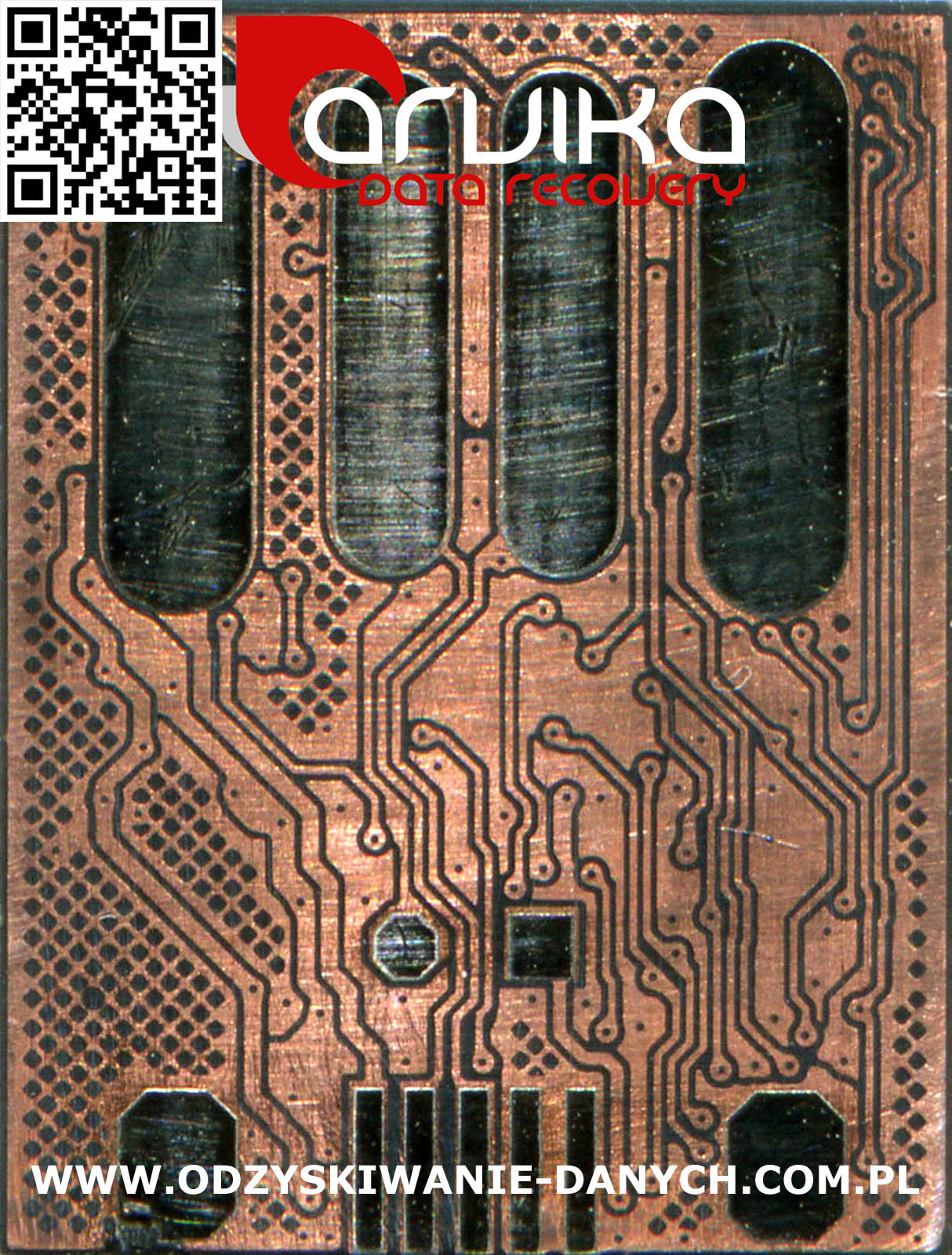

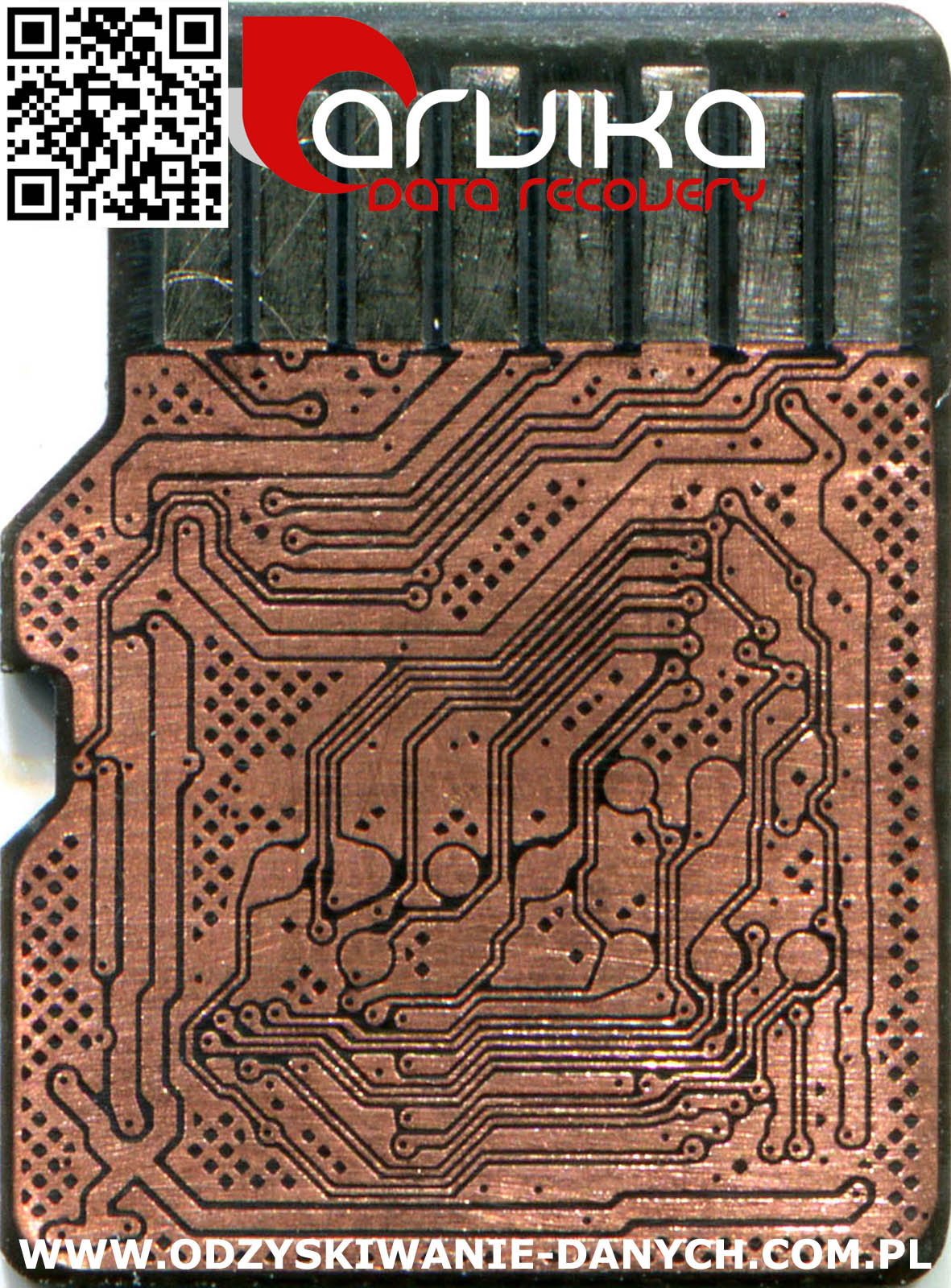

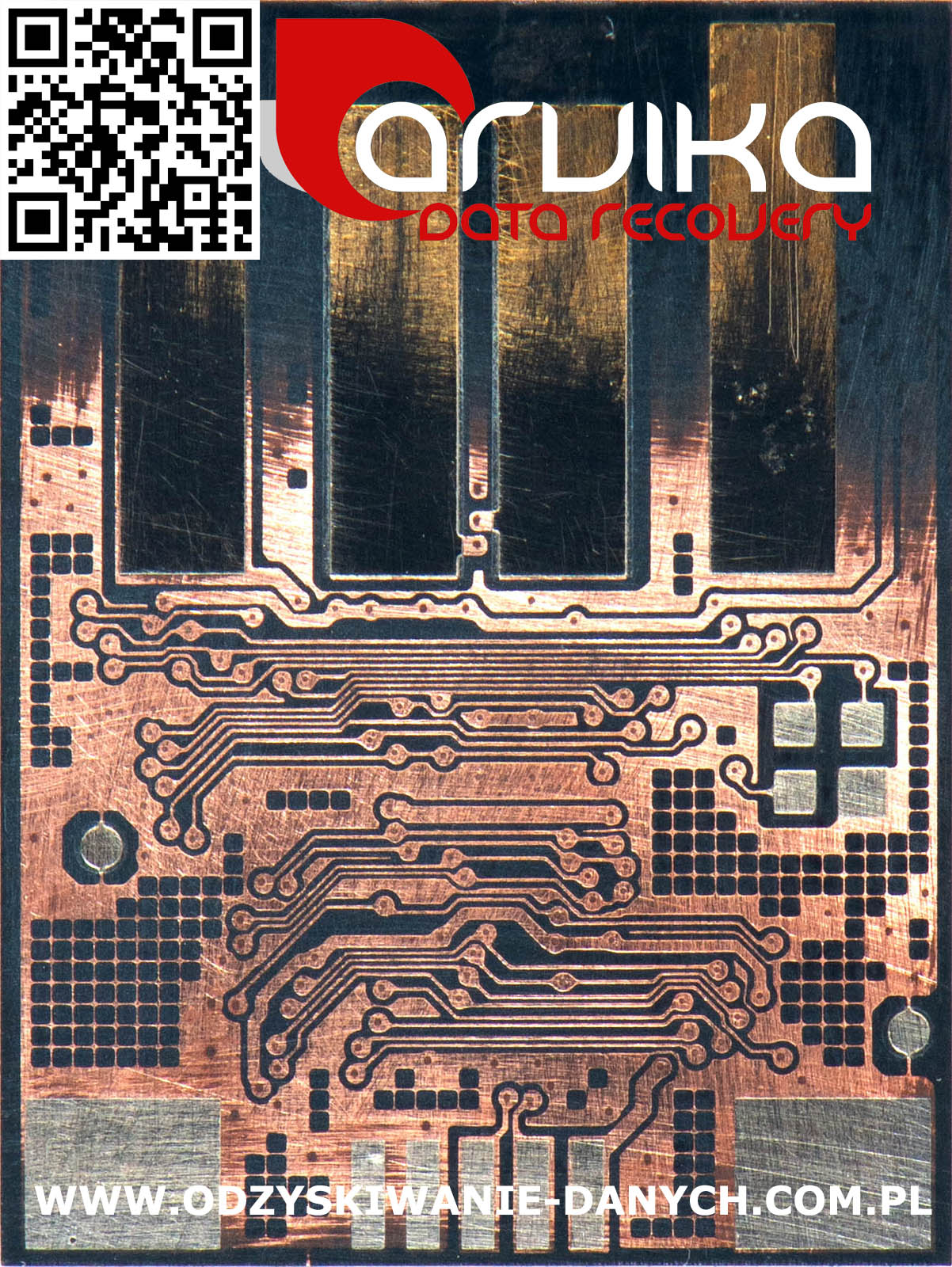

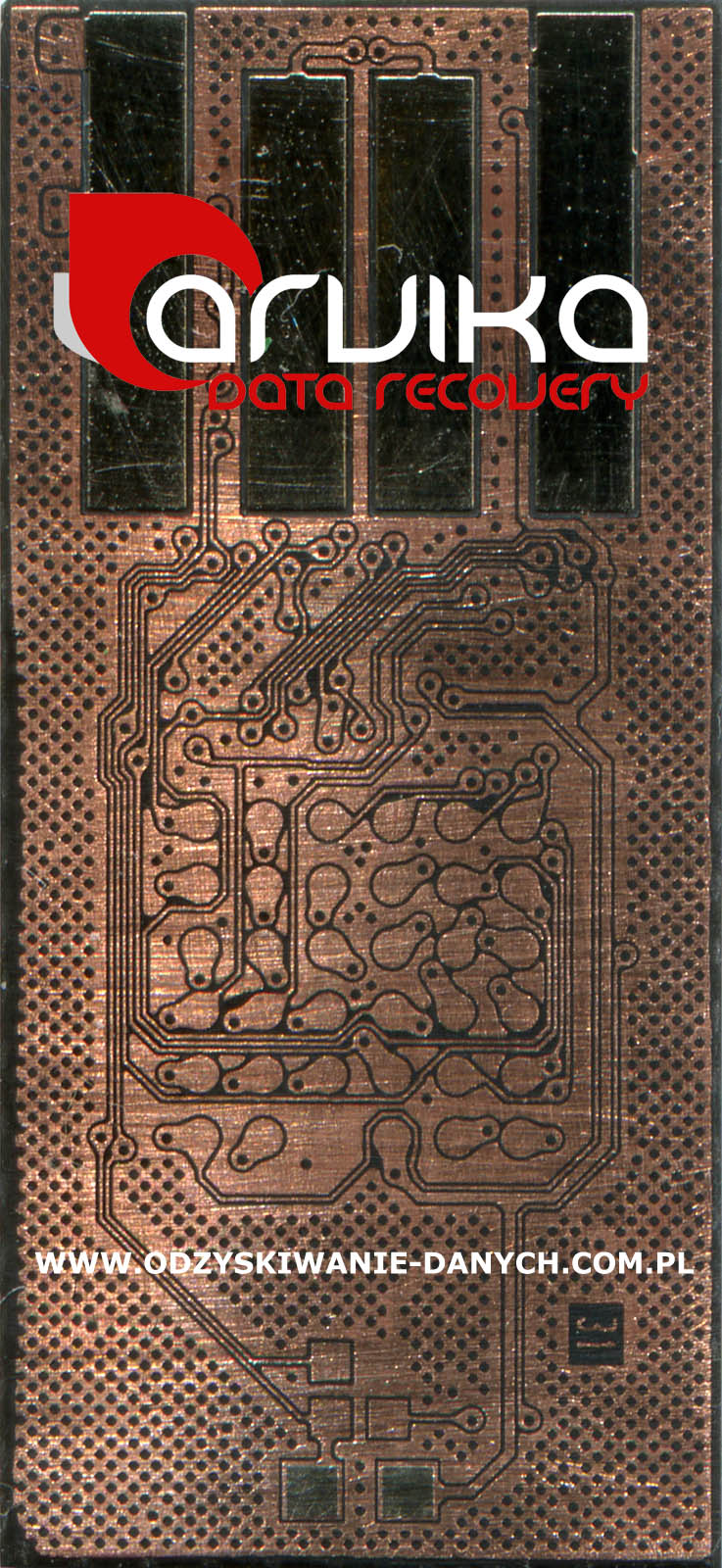

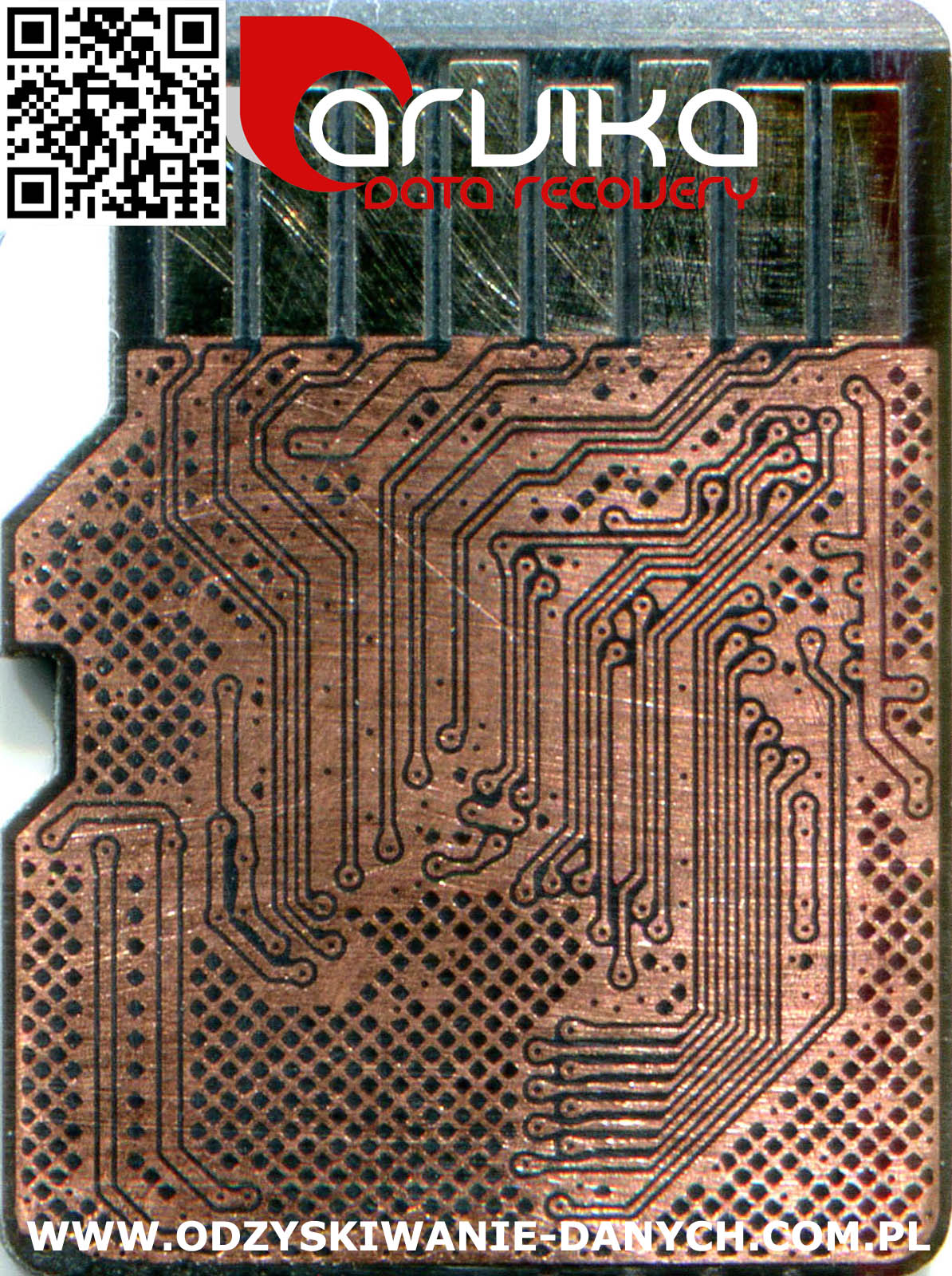

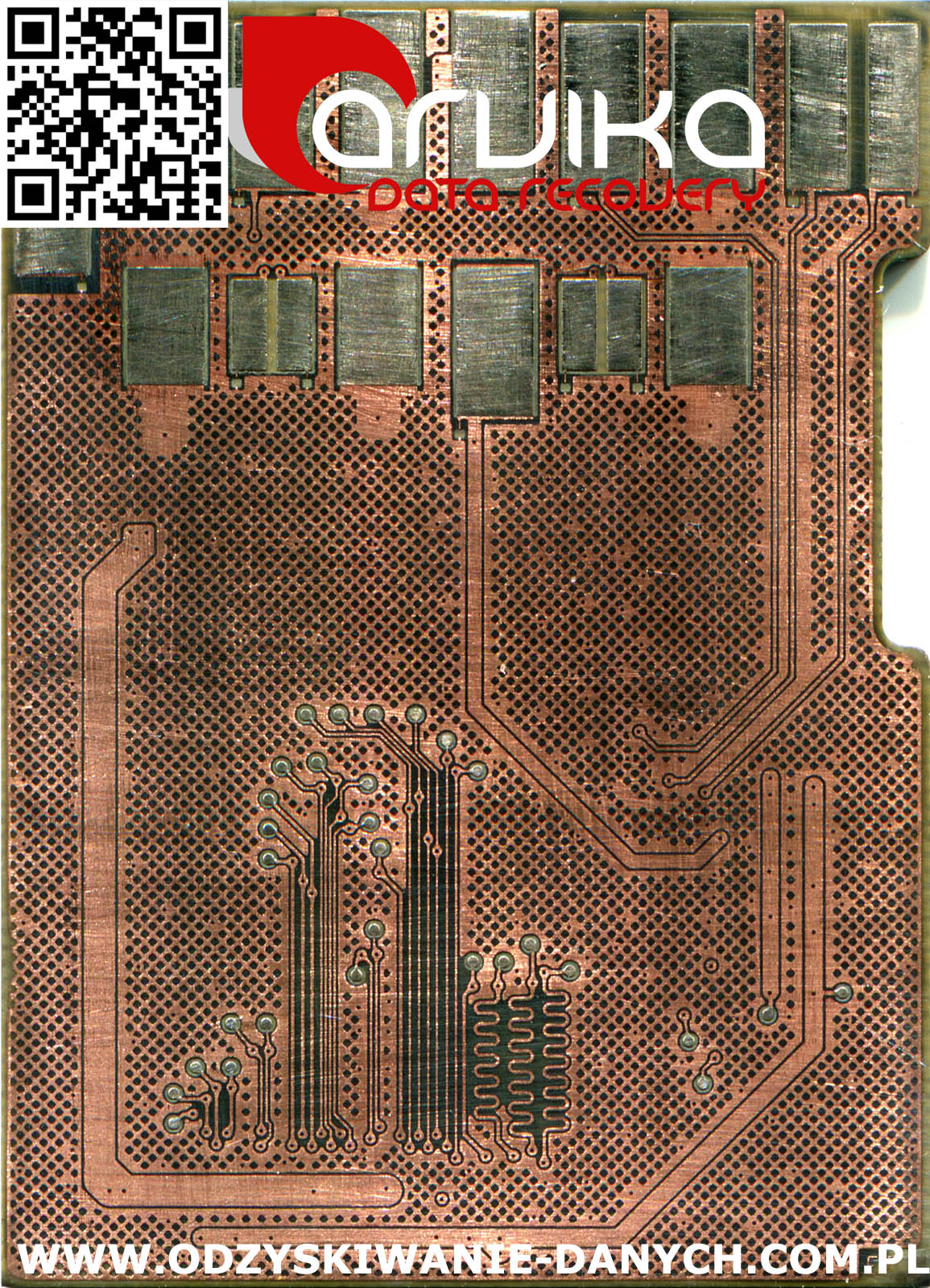

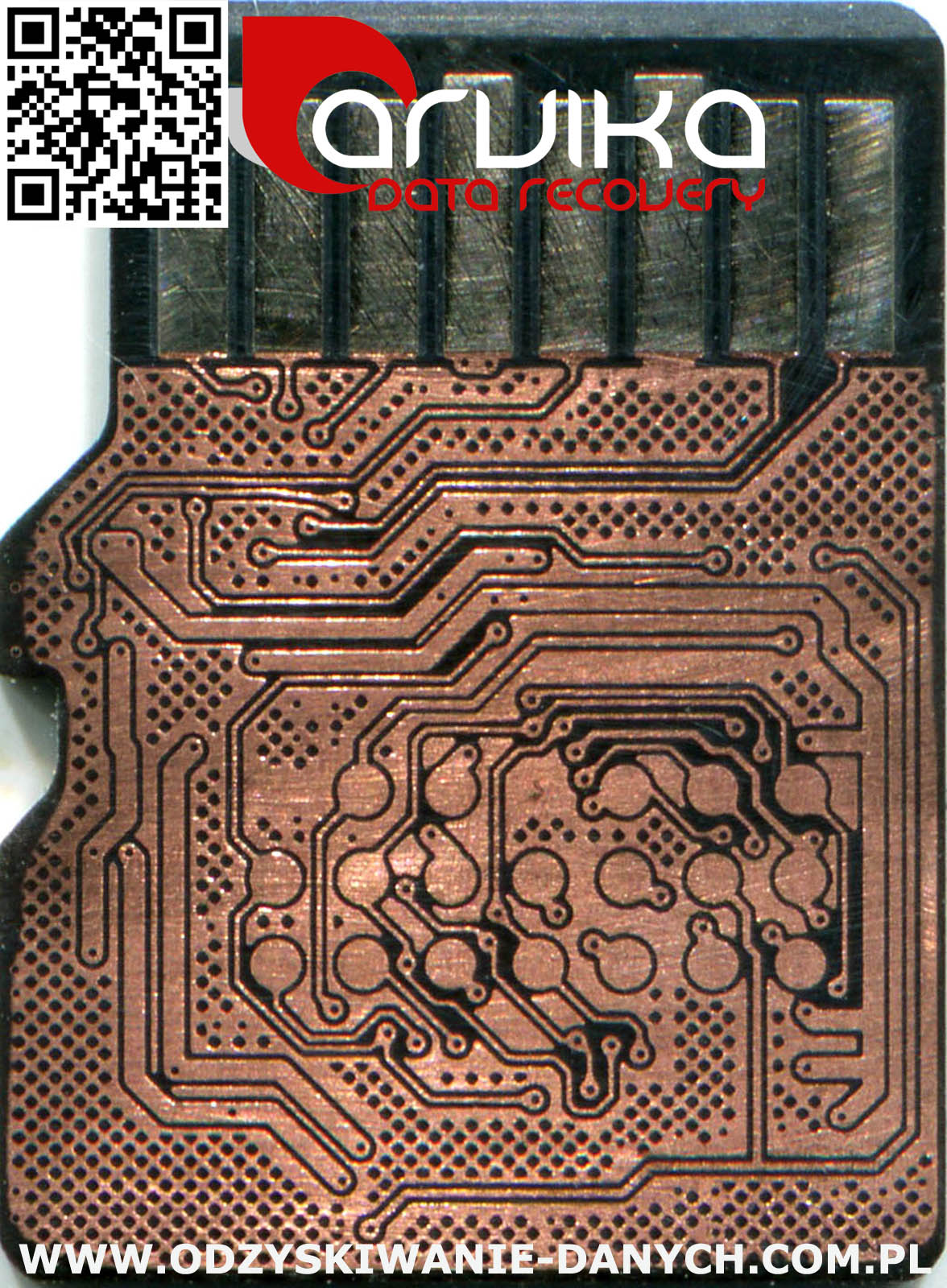

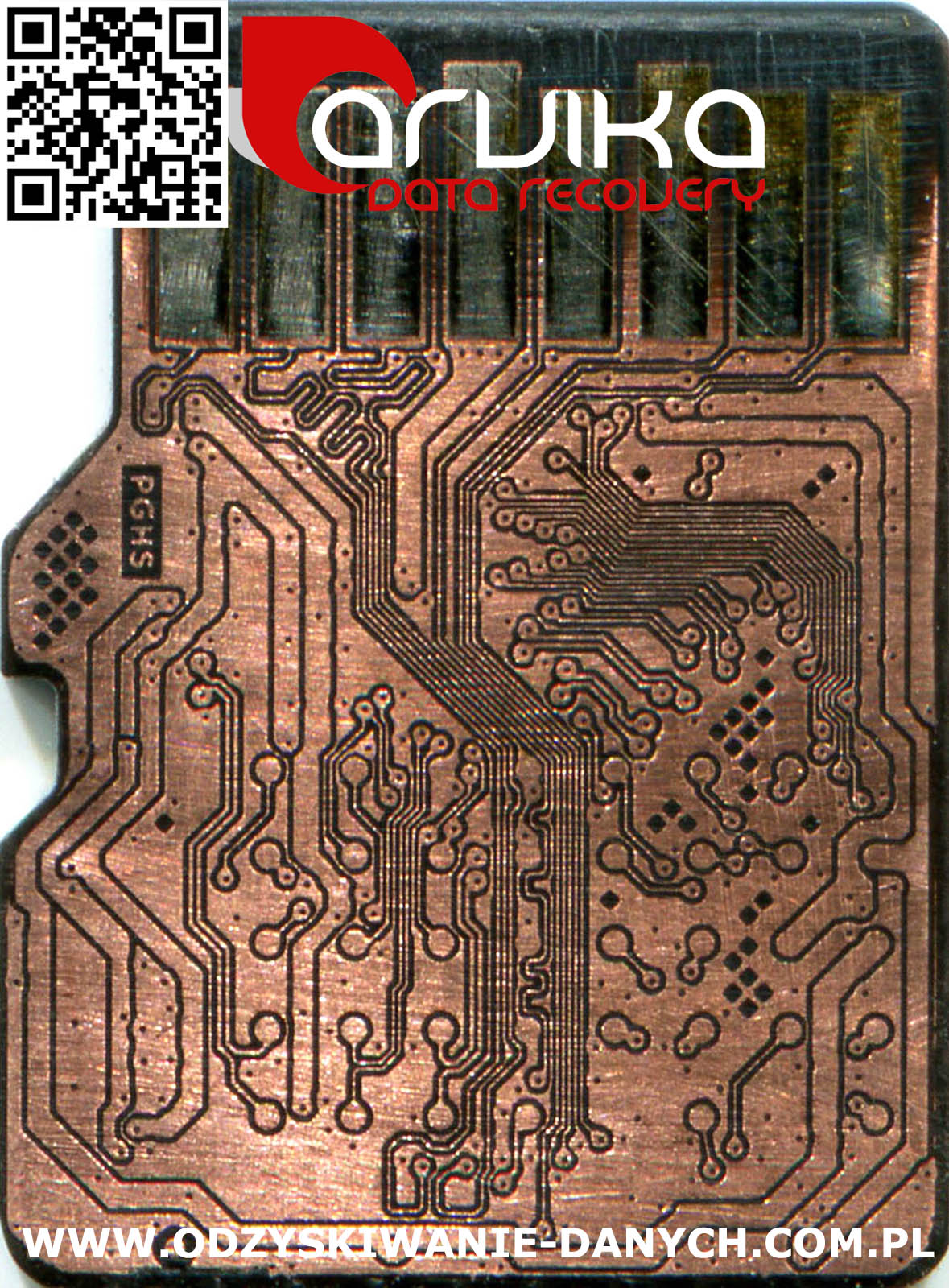

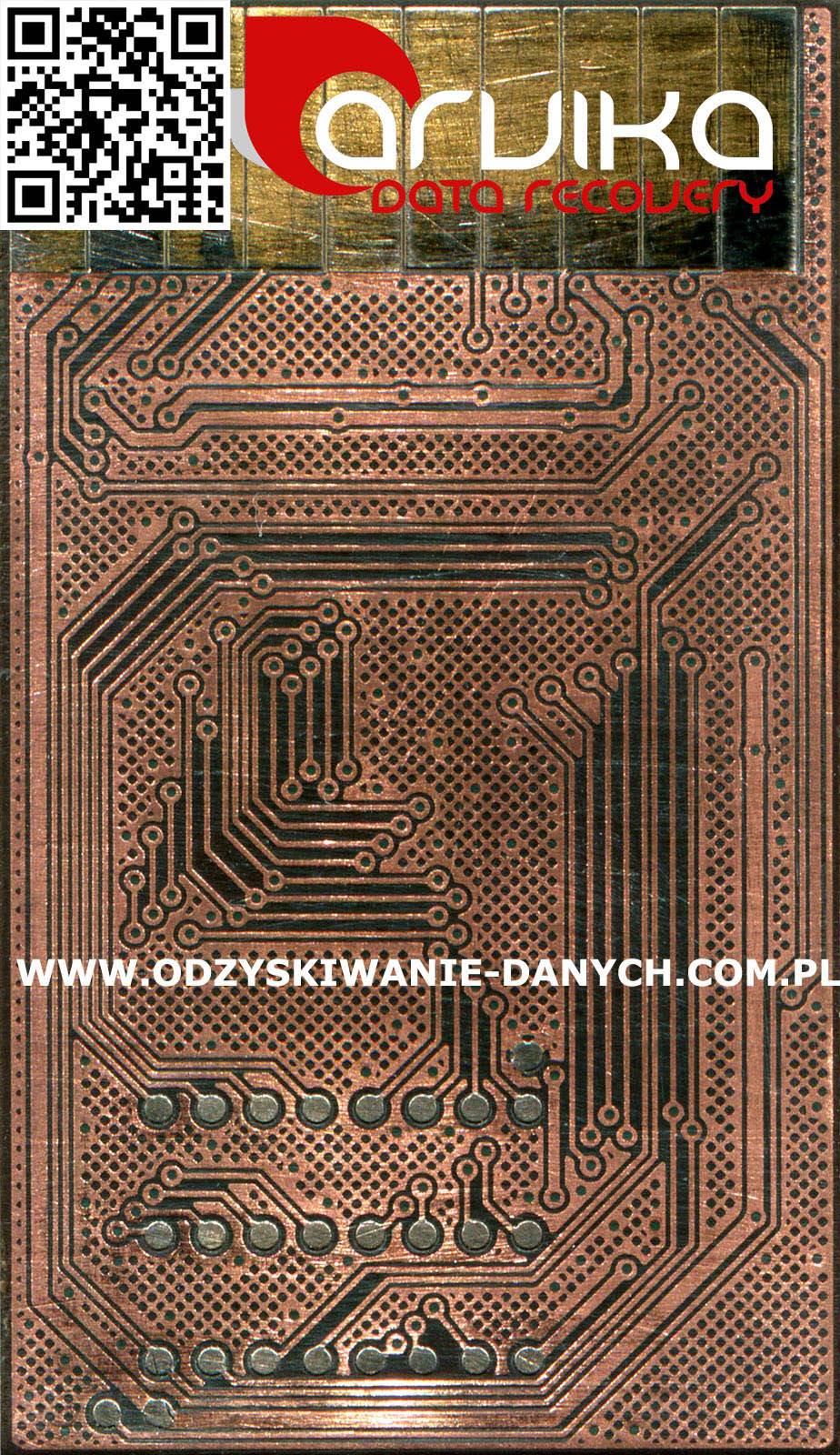

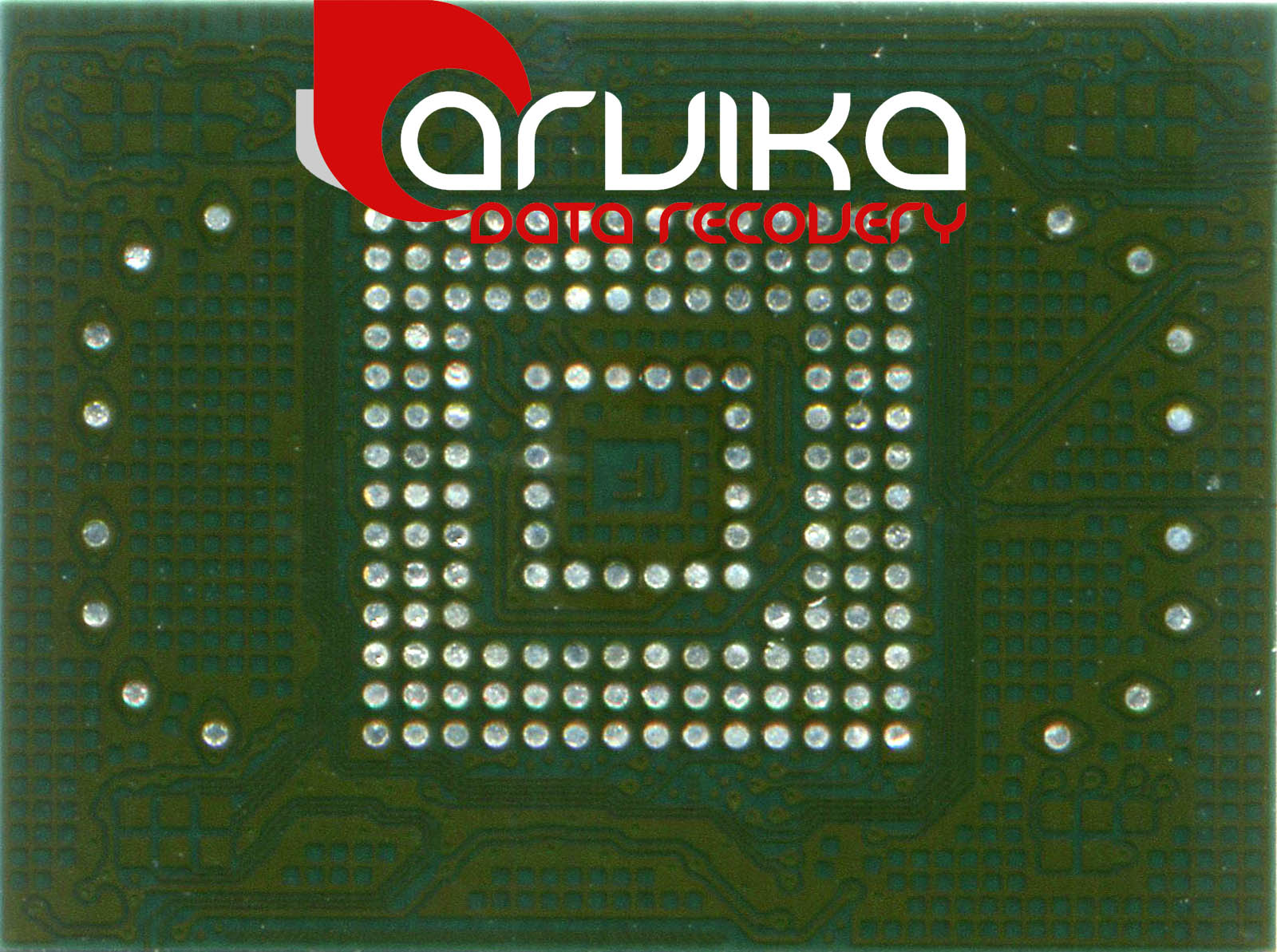

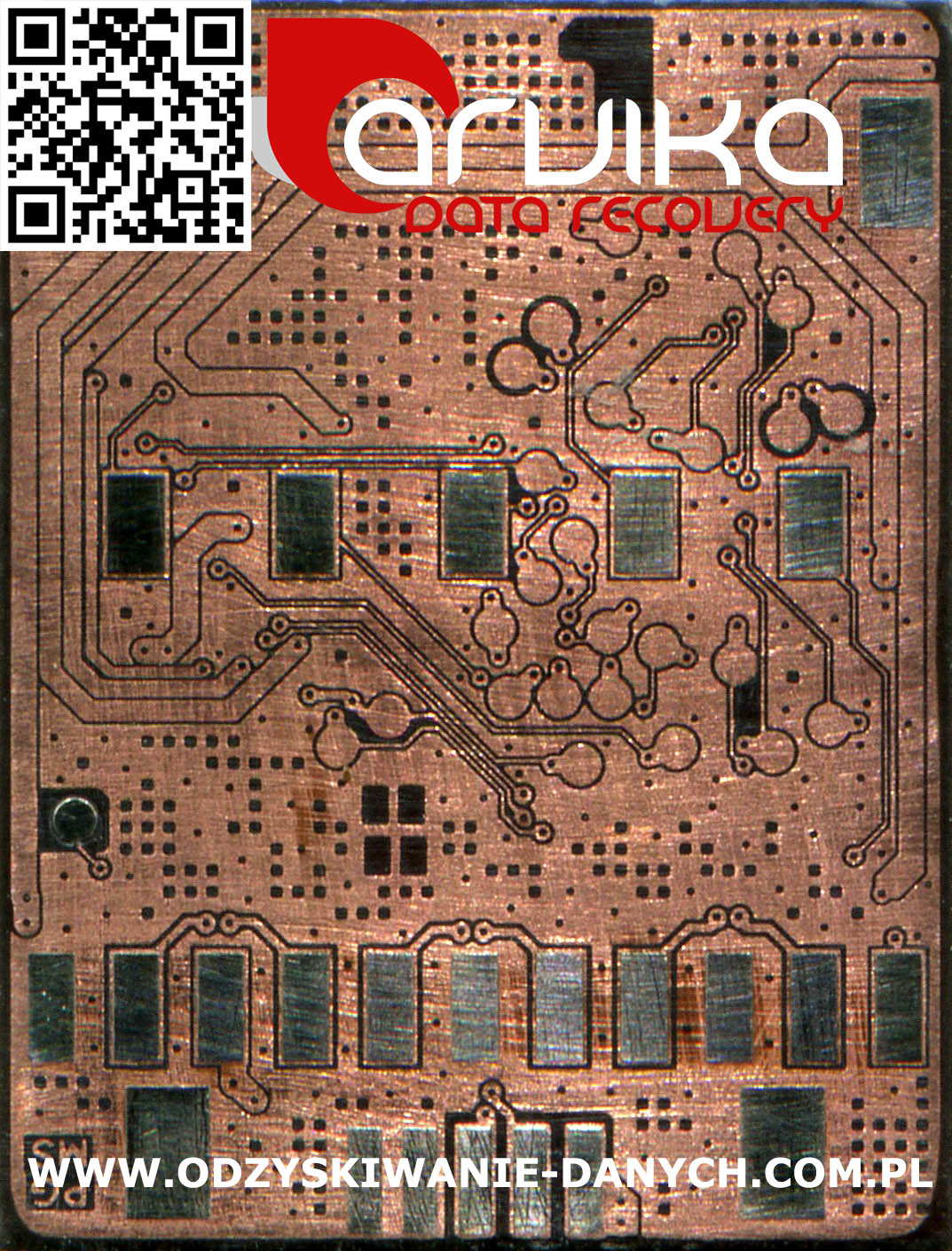

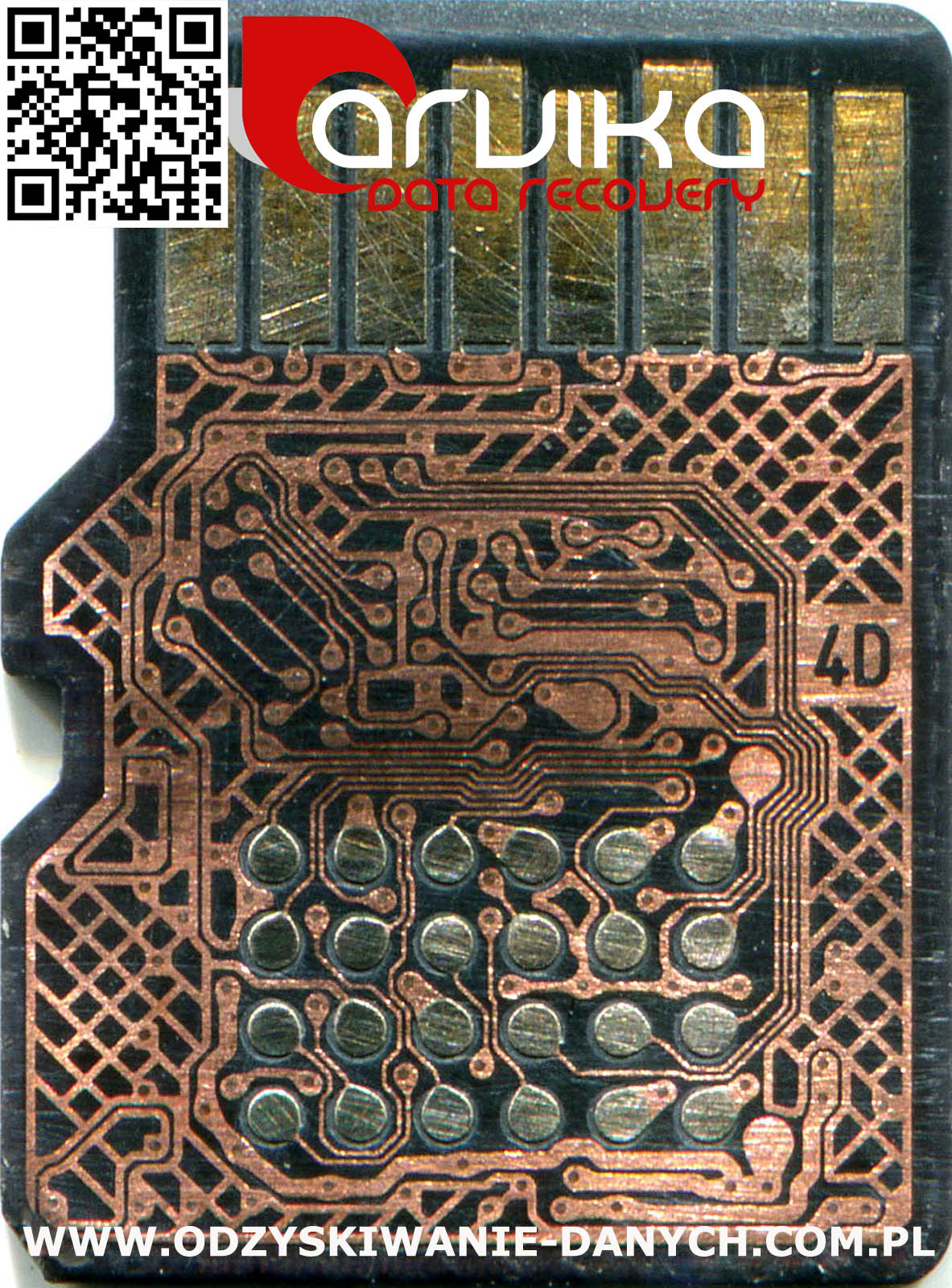

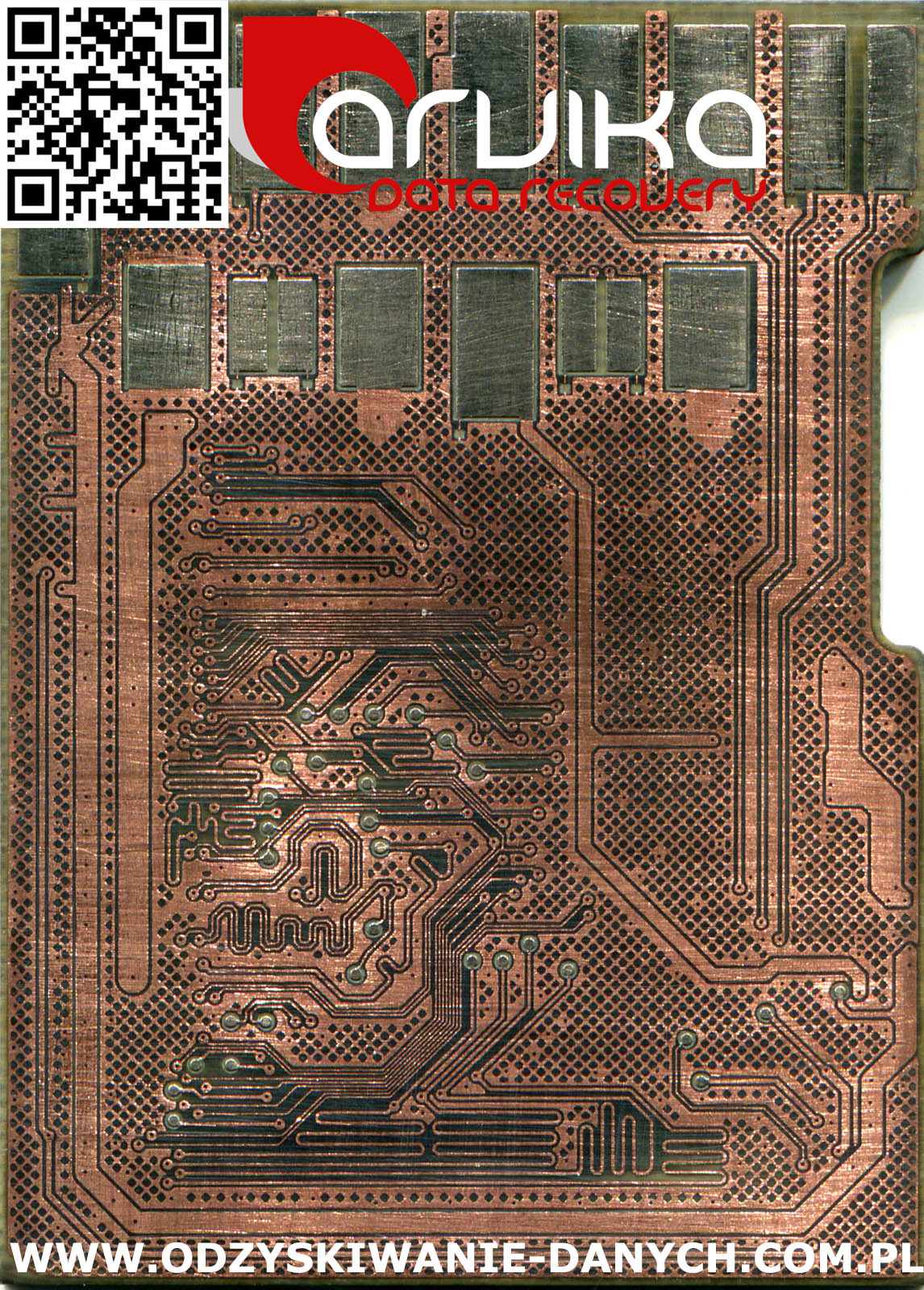

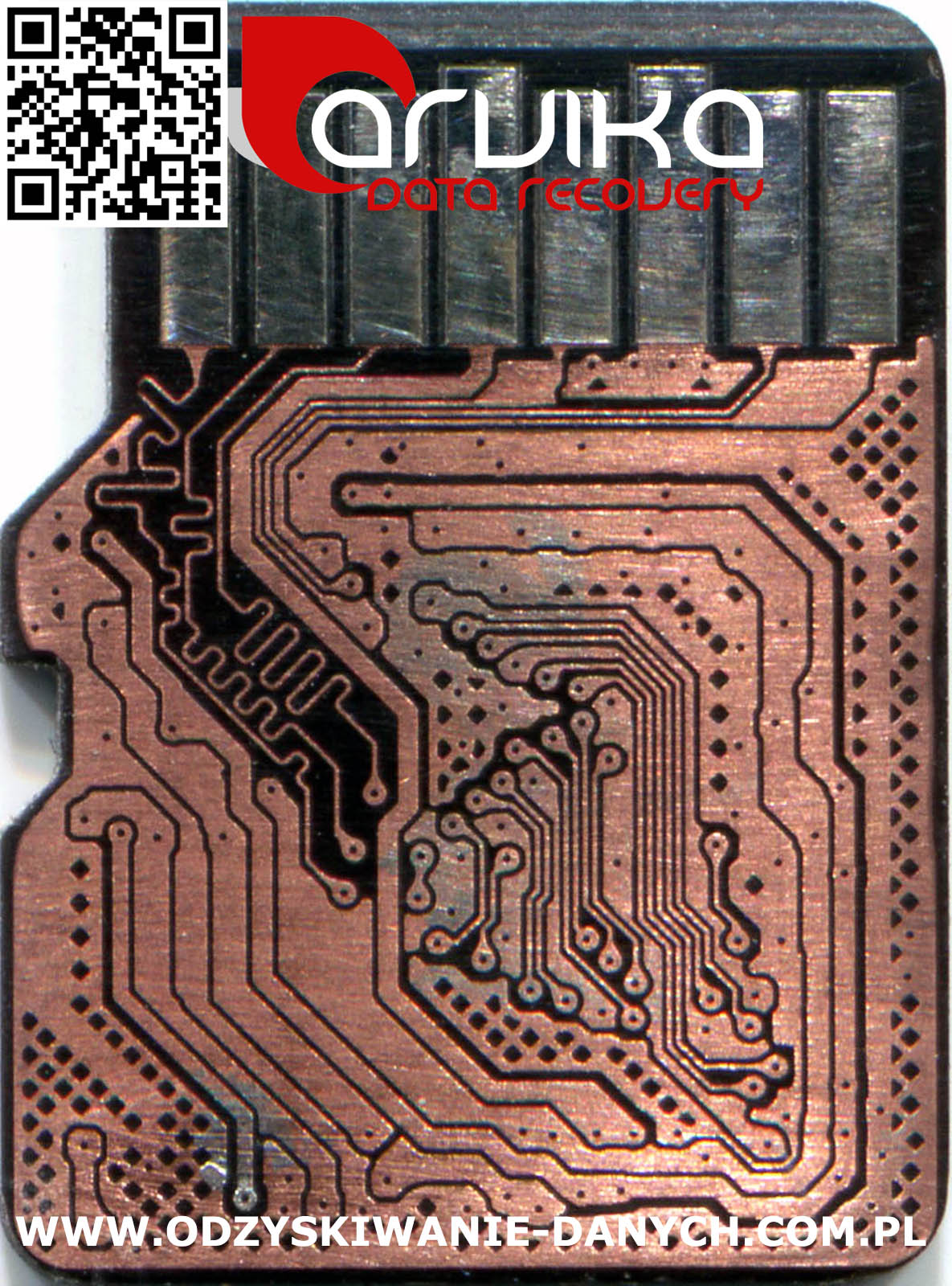

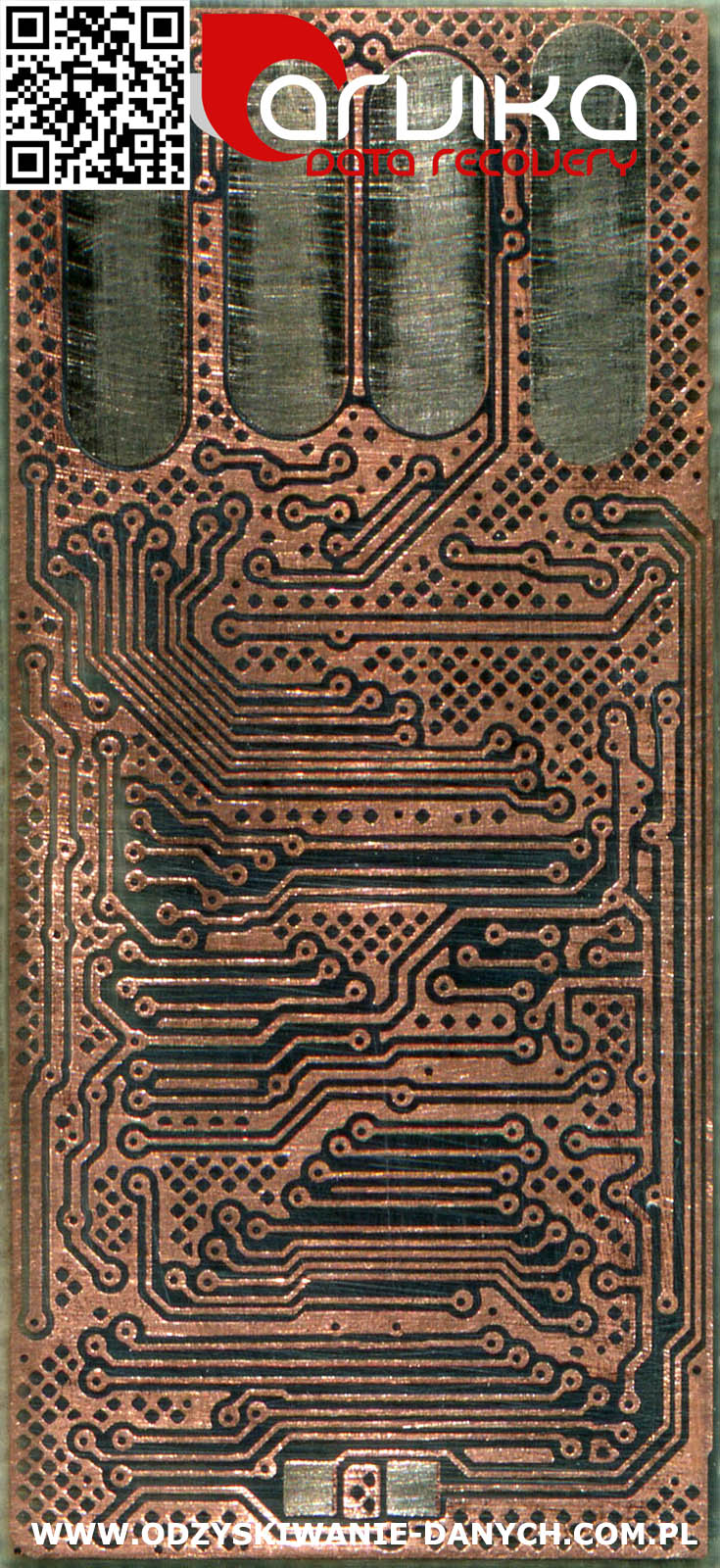

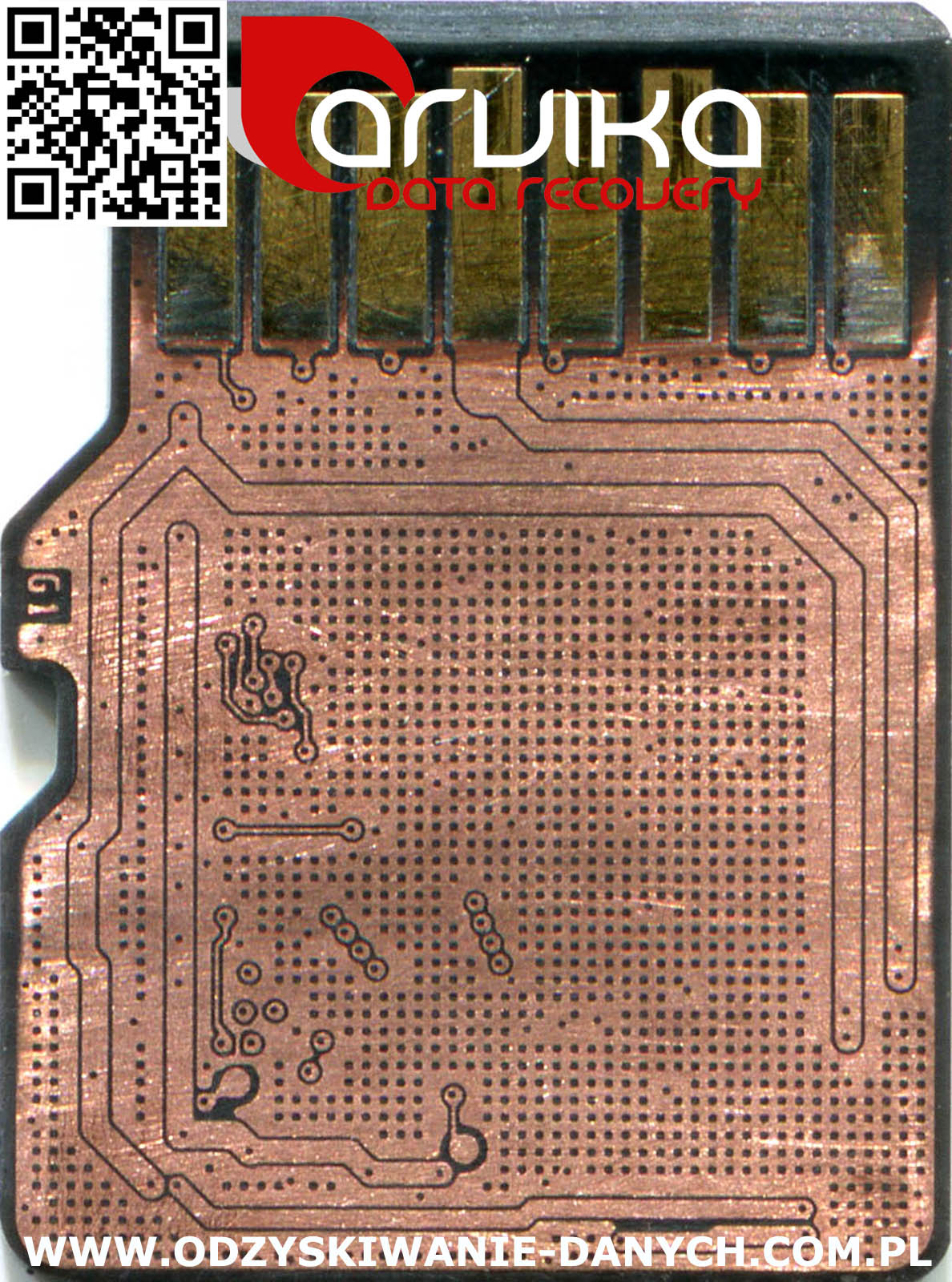

  • Below we present photos of the monolith flashes and cards
  • Photos are for free, you can copy them but please do not change or cut them
  • You can use it for reference
  • We do not share pinouts, please don't ask for it
  • If you meet new monoliths, you can send us photos and description - we will make updates
  • We can solve your case. Flash must be send to our lab. Price depends on the case complexity
  • If we don't have pinout, we can develop it, usually we don't need the same working device
  • Many devices have almost the same design, but different pinout (eg. MicroSD card 4 rows, 6 col)
  • To improve search some typical pinouts use the phraze: 6x4, 3x7, 6x10, 5x8, 2x15, 14-13, 14-14, 15-14, U3x7, 3x10, 2x11, 1x40, 3x13, 4x13, H-line, V-line, X-line, pads, vias and similar

Enjoy!

We have all flash tool (VNR,FE,PC3K Flash,SSD) with active license + many adapters. Sometimes for solve one case need use all together.



UFD MONOLITHS

NR Monolith photo Info
1 Monolith Pinout: yes
Size: 4GB, 8GB
Memory: 29F32G08AAM02, one (4GB) or two banks (8GB)
ID: 89 d7 94 3e
Controller: SM3254
Description: 3230-150763-2109
2 Monolith Pinout: yes
Size: 8GB, 16GB
Memory: 8GB - Toshiba ???, 16GB - H27UCG8T2MYR, two nands
ID: 8GB - 45 de 98 92, 16GB - ad de 94 d2
Controller: 8GB - IT1171, 16GB - IT1167
Description: 8GB - 31001110 12037269 FAB8GBHSMH2IF1K, 16GB - FAB16GHSMH2IC2K, FAB16GHSMH2ID2K
Page structure: 1086_1078
XOR: 988EE1
Notice: it could be problem chip
3 Monolith Pinout: yes
Size: 4GB
Memory: H27UBG8T2ATR
ID: ad d7 94 9a
Controller: SM3254
Page structure: 1066_26
Description: FAB4GBHSMH3SH1B
4 Monolith Pinout: no
Size: 8GB
Memory: unknown
ID: unknown
Controller: unknown
Description: BWIS8G091217 1960507
Notice: need working flash for make pinout
5 Monolith Pinout: yes
Size: 8GB
Memory: TC58NVG6T2HTA00
ID: 98 de 98 92
Controller: PS2251-67
Page structure: 1138_1134, 1109_1103, 1137_1133
XOR: FA9E80
Description: THNU38N00PJ0UIT1MB I61BCTG24108G-036B, I67BBTG19108G-036B
6 Monolith Pinout: yes
Size: 16GB, 32GB
Memory: Sandisk
ID: 45 4c 99 92
Controller: Sandisk
XOR: C634
Page structure: 14_2048_230
Description: 2525CL710072 032G, 2252C6A10054 032G, 3241F3110640 016G
Notice: 2x11
7 Monolith Pinout: yes
Size: 4GB, 8GB, 16GB
Memory: 29F32G08AAMDB, 29F32G08AAM02
ID: 89 68 04 46, 89 d7 94 3e
Controller: UT165
Description: 0936016G2 CNSE93632A, 0940004G CNSE9408LA
Notice: --
8 Monolith Pinout: yes
Size: 8GB
Memory: 29F64G08CBAAA
ID: 2c 88 04 4b
Controller: IT1167
Description: Lacie MU08G-M313MA 01AU 1114-KY ZA71464907A-8G, ZAW0000007-8G, 31001068 12014158
9 Monolith Pinout: yes
Size: 2GB, 4GB
Memory: Intel
ID: 89 d5 94 3e
Controller: unknown
Description: 0833004G, 0823002G S8231072 0824002G S824107D
Notice: Some traces are on second layer
10 Monolith Pinout: yes
Size: 4GB
Memory: unknown
ID: unknown
Controller: unknown
Description: IL111204-1
11 Monolith Pinout: yes
Size: 16GB
Memory: unknown
ID: unknown
Controller: unknown
Description: FAB16GHST...
12 Monolith Pinout: yes
Size: 16GB
Memory: unknown
ID: unknown
Controller: unknown
Description: MM416GS535
13 Monolith Pinout: yes
Size: 8GB
Memory: unknown
ID: unknown
Controller: unknown
Description: IML63A1011A
14 Monolith Pinout: yes
Size: 8GB (not sure)
Memory: unknown
ID: unknown
Controller: SC908NL(FC8908NL)/AU6998NL/AU6989NL
Description: ZX11325
15 Monolith Pinout: yes
Size: 8GB
Memory: unknown
ID: unknown
Controller: unknown
Description: FAB8GBHSMM2CH1B
16 Monolith Pinout: yes
Size: 8GB, 16GB, 32GB
Memory: TC58NVG6T2HTA00
ID: 98 de 98 92, 98 3a a8 92 76 57
Controller: PS2251-67
Page structure: 1137_1133
XOR: FA9E80
Description: Toshiba THNU3EN00PL07, THNU4EP00PLA0, THNU4EP00PL07, THNU5EP00PL07
Notice: 6x6
17 Monolith Pinout: yes
Size: 16GB
Memory: FZBWTHS8TVG8T2JTA20
ID: 98 3a a8 92
Controller: PS2251-67
Page structure: 1138_1134
XOR:FA9E80
Description: N67BBTG19116G-5619 1244-121031288
18 Monolith Pinout: yes
Size: 16GB
Memory: TC58NVG6D2GTA00
ID: 98 de 94 82
Controller: SM3257
Description: TMTU08STE0CD, 8YM4SD20T
Notice: --
19 Monolith Pinout: no
Size: 8GB
Memory: unknown
ID: unknown
Controller: unknown
Description: SM48GS317 FCLM64
Notice: need working flash for make pinout
20 Monolith Pinout: yes
Size: 16GB, 32GB
Memory: FZBW29F128G08EFAAA
ID: 2c 88 08 5f
Controller: SK6226BA
Page structure: 1144_1140_1144
XOR: dynamic BN
Description: FAB16GHSTM2KB2B, FAB16GHSTM2xKB2B, FAB32GHSTM2KB4B, FAB32GHSTM2KB2B
21 Monolith Pinout: no
Size: unknown
Memory: unknown
ID: unknown
Controller: unknown
Description: ---
Notice: need working flash for make pinout
Photo: Alkemist
22 Monolith Pinout: no
Size: unknown
Memory: unknown
ID: unknown
Controller: unknown
Description: ---
Notice: need working flash for make pinout
Photo: Alkemist
23 Monolith Pinout: yes
Size: 4GB
Memory: H27UBG8T2ATR
ID: ad d7 94 9a
Controller: IT1167
Page structure: 1086_1078
XOR: no XOR
Description: FAB4GBHSMH3IC1K
Photo: Alkemist
24 Monolith Pinout: yes
Size: 4GB
Memory: unknown
ID: unknown
Controller: unknown
Description: I50BDHN32104G-019B
Photo: Vladus
25 Monolith Pinout: yes
Size: 8GB, 16GB
Memory: Toshiba
ID: 98 de 98 92, 98 3a a8 92
Controller: TC58NC6623G6F
Page structure: 1140
XOR: C20DC3
Description: THNU4EP00RG07, THNU5EP00RG07, THNU4EP00RF07, THNU3EN00RF07
Photo: Alkemist
Notice: 6x6, no LBN, assembly by VT
26 Monolith Pinout: no
Size: unknown
Memory: unknown
ID: unknown
Controller: unknown
Description: ---
Notice: need working flash for make pinout
Photo: Alkemist
27 Monolith Pinout: no
Size: unknown
Memory: unknown
ID: unknown
Controller: unknown
Description: ---
Notice: need working flash for make pinout
Photo: Alkemist
28 Monolith Pinout: under develop
Size: 2GB
Memory: I29F16G08ACMD1
ID: 89 48 04 46
Controller: UT165
Description: UMH2GU14 S1IM953A
Notice: some singals are on internal layer
29 Monolith Pinout: no
Size: 4GB
Memory: JS29F32G08AAMDA
ID: 89 68 04 46
Controller: SM3254AE
Description: FAK4GBHSMI3SH1B
Photo: Kamikaze
30 Monolith Pinout: yes
Size: 8GB, 32GB
Memory: TC58NVG6T2HTA00
ID: 98 de 98 92, 98 3a a8 92
Controller: SC908 or FC8908 or AU6989, SM3257EN
Page structure: 1144_27
Description: PI1-1, GF5AT932GB0, SYL111208T, ZP131016G LNI13107T2J019
Notice: U3x7
31 Monolith Pinout: yes
Size: 4GB, 8GB
Memory: FZBWTC58TVG5T2HTA00, FZBWTC58NVG6T2HTA00
ID: 98 d7 98 92, 98 de 98 92
Controller: SM3257EN
Page structure: 1130_27
XOR: EFE2F2
Description: 8OM4TB40T
Notice: In some cases need cut first 96bytes from every page
32 Monolith Pinout: yes
Size: 4GB, 8GB
Memory: MT29F32G08CBABA, K9HCGZ8U5D
ID: 2c 68 04 46, ec d5 94 29
Controller: UT165
Description: Lacie MU04G2001DM-u IL091208-4G MU08E2211BM-u S090706-8G
33 Monolith Pinout: yes
Size: 32GB
Memory: MT29F32G08CBABA
ID: 2c 68 04 46
Controller: SK6211
Description: MM832GK139
34 Monolith Pinout: yes
Size: 4GB, 8GB
Memory: FZBWTC58TVG5T2HTA00, FZBWTC58NVG6T2HTA00, SDTNPNAHEM-004G
ID: 98 d7 98 92, 98 de 98 92, 45 d7 98 92
Controller: SM3257EN
Page structure: 1130_27, 1136_27
XOR: EFE2F2
Description: HTTGSDBG20111125, HTTHSDEG 2011GMK50, HTTHSDDG OM1108961, 4YM4DB41T
Notice: In some cases need cut first 96bytes from every page
35 Monolith Pinout: yes
Size: 4GB, 16GB
Memory: SDTNPNAHEM-004G, TC58NVG6T2HTA00
ID: 45 d7 98 92, 98 de 98 92
Controller: DM8261, YS8231
Description: AYD1TD04T, 4YD1DC49T
36 Monolith Pinout: yes
Size: 8GB, 32GB
Memory: TC58NVG6T2HTA00
ID: 98 de 98 92
Controller: PS2251-67
Page structure: 1137_1133, 1138_1134
XOR: FA9E80
Description: N67BBTG19108G-561B, 2324425-039.A00LF 2501202, N67BDTG19232G-561B
37 Monolith Pinout: no
Size: 2GB, 4GB
Memory: Samsung K9GAG08U0E, JS29F32G08AAMD2
ID: ec d5 84 72, 89 d7 94 3e
Controller: SM3252
Description: 2OM2SA19M, KA01G0911 8230-19091381-4209
Donor: yes
38 Monolith Pinout: yes
Size: 8GB
Memory: Toshiba/Sandisk
ID: 45 de 98 92
Controller: SM3257
Page structure: 1136_27
XOR: EFE2F2
Description: 8OM4DB41T
39 Monolith Pinout: yes
Size: 4GB
Memory: K9ABG08U0B
ID: ec d7 98 ce
Controller: SM3257EN
Page structure: 1130_27
Description: 317301301D
Notice: problem chip, bad dump quality
40 Monolith Pinout: yes
Size: 8GB
Memory: K9ACGD8U0M
ID: ec de 98 ce
Controller: SM3257EN
Page structure: 1130_27
XOR: 4C912A
Description: BSA08GCAH59UF SSK SFD216 ZL201239947443.8
Notice: traces was cut by producent
Problem chip, bad dump quality
41 Monolith Pinout: yes
Size: 4GB
Memory: Samsung
ID: ec d7 94 76
Controller: SM3257AA
Page structure: 1094_26
XOR: F33F63
Description: 4OM4SA43M
42 Monolith Pinout: yes
Size: 4GB
Memory: K9ABG08U0A
ID: ec d7 98 ca
Controller: SM3255AA
Page structure: 1066_26
XOR: dynamic BN
Description: 4OM3SA16T
43 Monolith Pinout: no
Size: 2GB
Memory: unknown
ID: unknown
Controller: unknown
Description: ---
Photo: Alkemist
44 Monolith Pinout: yes
Size: 4GB, 8GB
Memory: Samsung K9ABG08U0A
ID: ec d7 98 ca
Controller: SM3254/SM3257
Page structure: 1066
XOR: FFF9FF
Description: STS08GS3255-1046, Lacie-4GB SMI-714755 2033462
45 Monolith Pinout: yes
Size: 4GB
Memory: FZBWTC58TVG5T2HTA00
ID: 98 d7 98 92
Controller: SM3257EN
Page structure: 1146_27
XOR: 4C912A
Description: 4G257EN0DT124410088
46 Monolith Pinout: yes
Size: 4GB, 8GB, 16GB
Memory: TF15G2JAHA
ID: 98 d7 98 92 72 56, 98 de 98 92
Controller: PS2251-61
Page structure: 1137_1133
XOR: FA9E80
Description: Toshiba THNU28L00PH07, THNU38N00PH07, THNU48N00PH07, THNU3HN00OM07, 2324543-001.A00LF M27N02629-00 M2AN01291-00, 2324500-008.A00LF M20195315.00
Notice: 6x6
47 Monolith Pinout: under develop
Size: 4GB
Memory: Sandisk
ID: 45 d7 98 92
Controller: DM8261
Description: 4OD1DC17T
48 Monolith Pinout: yes
Size: 32GB
Memory: Toshiba
ID: 98 de 98 92
Controller: PS2251-V
Page structure: 1151_1_1143_1
XOR: FA9E80
Description: K03BBTG19432G-0201
Notice: some connections are under layer (4th)
49 Monolith Pinout: no
Size: 8GB
Memory: unknown
ID: unknown
Controller: unknown
Description: PA0J60048G01DJA4AC
50 Monolith Pinout: yes
Size: 8GB
Memory: unknown
ID: unknown
Controller: unknown
Description: FAB8GBHSTT19SP1B
51 Monolith Pinout: yes
Size: 8GB, 16GB
Memory: Intel
ID: 89 88 28 5f a9
Controller: PS2251
Page structure: 1137_1131
XOR: FA9E80
Description: 2324425-017.A00LF 2159764, 2324425-018.A00LF 2163193
52 Monolith Pinout: no
Size: 8GB
Memory: unknown
ID: unknown
Controller: unknown
Description: CCEHL93257-8GB1401
Notice: U3x7
53 Monolith Pinout: no
Size: 32GB
Memory: unknown
ID: unknown
Controller: unknown
Description: N03BBTG19432G-561U 1327-130701789
Donor: yes
54 Monolith Pinout: no
Size: 8GB
Memory: Toshiba
ID: 98 de 98 92
Controller: PS2251-67
Description: N67BDTG19108G-562R 1411-140310333
Donor: yes
55 Monolith Pinout: no
Size: 8GB
Memory: Toshiba
ID: 98 de 98 92
Controller: PS2251-67
Description: K67BDTG19108G-2301 1419-D45001A31
Donor: yes
Notice: 6x6
56 Monolith Pinout: no
Size: 4GB
Memory: unknown
ID: unknown
Controller: unknown
Description: GSJM1305CXTG
Donor: yes
57 Monolith Pinout: no
Size: 4GB
Memory: unknown
ID: unknown
Controller: unknown
Description: N60BBTG24104G-5616 1121-110523140
Donor: no
58 Monolith Pinout: yes
Size: 64GB
Memory: Toshiba
ID: 98 3a a8 92
Controller: PS2251-07
Page structure: 1138_1134
XOR: FA9E80
Description: 2324615-017.A00LF 2700393
Notice: no
59 Monolith Pinout: no
Size: 16GB
Memory: Sandisk
ID: 45 de 94 93
Controller: IS903
Description: 6C05-016GR C61KF1290018
Notice: no
60 Monolith Pinout: no
Size: 32GB
Memory: unknown
ID: unknown
Controller: unknown
Description: 6C05-032GR C61LF1290014
Donor: no
61 Monolith Pinout: yes
Size: 8GB, 16GB, 32GB, 64GB
Memory: Sandisk
ID: 45 de 98 92, 45 4c 99 92, 45 3c 9a 92 7a 50
Controller: 20-82-00511-1
Page structure: 14_2048_230
XOR: C634
Description: 4164F8914065 008G, 4222CHY14113 016G, 4314F0324098 032G, 64G
Notice: 2x11
62 Monolith Pinout: no
Size: 2GB
Memory: unknown
ID: unknown
Controller: UT163
Description: BF07-2035R01 C20HF07C0002, BF07-2035R01 C20HF0810023
Donor: No
63 Monolith Pinout: yes
Size: 4GB
Memory: Intel
ID: 89 68 24 4a
Controller: IT1167
Page structure: 1086_1078
XOR: 988EE1
Description: FAB4GBHSMI2IC1K
64 Monolith Pinout: yes
Size: 32GB
Memory: unknown
ID: unknown
Controller: unknown
Description: BYM4SD30T
65 Monolith Pinout: yes
Size: 32GB, 64GB
ID: 98 3a a8 92 76 50
Controller: PS2251-68
XOR: FA9E80
Page structure: 1137_1133
Description: 2324577-030.A00LF 038.A02LF
Notice: H-line, X-line
66 Monolith Pinout: no
Size: 4GB
Memory: unknown
ID: unknown
Controller: --
XOR: --
Page structure: --
Description: GSKM1405AXTX
67 Monolith Pinout: yes
Size: 16GB
Memory: unknown
ID: unknown
Controller: Sandisk 82-00515-5
Description: 4366CST14069 016G
Notice: --
68 Monolith Pinout: yes
Size: 8GB
Memory: Intel 29F64G08AATEI
ID: 89 88 28 5f
Controller: unknown
Page structure: 1144_1136
Description: 31001077 12024217
69 Monolith Pinout: yes
Size: 64GB
Memory: Toshiba FZBWTHS8TVG8T2JTA20
ID: 98 3a a8 92
Controller: PS2251-07
Page structure: 1138_1134
XOR: FA9E80
Description: 2324615-029.A00LF 2766383
70 Monolith Pinout: yes
Size: 4GB
Memory: Sandisk
ID: 45 d7 98 82
Controller: SM3255
Page structure: 1108_26
XOR: FF7DFC
Description: 4OM3DA41T
Notice: some connections under top layer
71 Monolith Pinout: yes
Size: 8GB
Memory: Toshiba TC58NVG5D2FTAIO
ID: 98 d7 94 32
Controller: PS2233
Page structure: 1074_1070
XOR: 3A0920
Description: N50BDTE32208G-5612 1041-101004186
Notice: --
72 Monolith Pinout: yes
Size: 4GB, 8GB
Memory: Samsung K9BCG08U1A
ID: ec d7 98 ca
Controller: SM3254
Page structure: 1066
XOR: FF09FC, FDF7F3, FFF9FF
Description: FAB4GBHSTS3SI1B, FAB8GBHSTS3SI2B, BSB08GTAH55UD
Notice: --
73 Monolith Pinout: yes
Size: 2GB
Memory: Samsung
ID: ec d5 98 71
Controller: SM3255AA
Page structure: 1108_26
XOR: dynamic
Description: 2OFS941
Notice: untypical page size, 4464bytes
74 Monolith Pinout: yes
Size: 4GB
Memory: Samsung K9ABG08U0A
ID: ec d7 98 ca
Controller: SM3255AA
Page structure: 1066_26
XOR: 00F6
Description: 6051 4G 27SS2 T01
Notice: V-line, X-line
75 Monolith Pinout: yes
Size: 4GB
Memory: Toshiba TC58NVG5D2FTAIO
ID: 98 d7 94 32
Controller: AU6990
Page structure: 1078
XOR: 988EE1
Description: YL111204-1 LI1-1
Notice: U3x7
76 Monolith Pinout: yes
Size: 8GB, 16GB
Memory: Toshiba
ID: 98 de 98 92, 98 3a a8 92
Controller: SSS6697
XOR: C2C20D0D
Page structure: 1140
Description: THNU3HN00RG07, THNU4JP00RG07
Notice: 6x6, VT
77 Monolith Pinout: yes
Size: 16GB, 32GB, 64GB
Memory: Sandisk
ID: 45 4c a8 a2
Controller: 20-82-00511-1
Page structure: 14_2048_230
XOR: C634
Description: 016G, 032G, 064G
Notice: 2x11
78 Monolith Pinout: yes
Size: 64GB
Memory: Sandisk
ID: 45 4c 98 a3, 98 3a 98 a3
Controller: PS2251-07, PS2251-V
Page structure: 1151_1_1143_1
XOR: FA9E80
Description: N07CDDV15464G 1538-002877845, N07CDTV15464G, N07CDTV15232G
Notice: --
79 Monolith Pinout: no
Size: 8GB
Memory: unknown
ID: unknown
Controller: unknown
Description: 31001283 53003718 60110039 12060359
Notice: --
80 Monolith Pinout: no
Size: 32GB
Memory: unknown
ID: unknown
Controller: unknown
Description: N07CDTGA9232G 1522-002825479
Notice: --
81 Monolith Pinout: yes
Size: 16GB
Memory: Hynix
ID: ad de 94 d2
Controller: SM3257
XOR: FFF9FF
Page structure: 1066_26
Description: FAB16GHSMH2SI2B
Notice: --
82 Monolith Pinout: yes
Size: 8GB
Memory: Toshiba
ID: 98 de 94 93
Controller: SM3257EN AA, SM2685
XOR: 4C912A
Page structure: 1100_27
Description: Fxx008SE9SE3 UDP8G1D21444, UDP8G1D21350 LMSYS 01SD61
Notice: H-line, X-line, similar to UFD v191
83 Monolith Pinout: no
Size: 32GB
Memory: unknown
ID: unknown
Controller: unknown
XOR: --
Page structure: --
Description: BYD5HF43T
Notice: --
84 Monolith Pinout: yes
Size: 4GB
Memory: Intel
ID: 89 68 04 46
Controller: SM3254
XOR: no XOR
Page structure: 540_538
Description: FAB4GBHSMI3SF1B
Notice: --
85 Monolith Pinout: yes
Size: 4GB
Memory: unknown
ID: unknown
Controller: unknown
XOR: --
Page structure: --
Description: 6KA04G1404 KL4432494071455
Notice: --
86 Monolith Pinout: yes
Size: 2GB, 4GB
Memory: Toshiba, Sandisk SDTNNNAHEM-004G
ID: 98 d5 98 b2 76 54, 45 d7 98 b2 76 d5
Controller: DM8261
XOR: A45919, A683F9
Page structure: 1071, 569
Description: KA01G1012, KA02G1106 1631140542211
Notice: --
87 Monolith Pinout: yes
Size: 16GB
Memory: Sandisk
ID: 45 4c a8 92
Controller: SM
XOR: E8018F? working on it
Page structure: 1138_32
Description: M08SF6SH1
Notice: --
88 Monolith Pinout: yes
Size: 32GB
Memory: unknown
ID: unknown
Controller: unknown
XOR: --
Page structure: --
Description: X50BDSZ25832 ST832GP2210 YJGC35
Notice: --
89 Monolith Pinout: yes
Size: 8GB
Memory: unknown
ID: unknown
Controller: unknown
XOR: --
Page structure: --
Description: 2324381-012.A00LF-M 2029238
Notice: --
90 Monolith Pinout: yes
Size: 4GB
Memory: Toshiba TC58TVG5T2JTA00
ID: 98 d7 98 92
Controller: SM3257ENAA
XOR: --
Page structure: --
Description: HTM8SDDG124100314 44424014CE
Notice: --
91 Monolith Pinout: no
Size: 16GB
Memory: Samsung
ID: ec de 88 bf
Controller: SM3267
XOR: --
Page structure: --
Description: BYM7SF17T
Notice: --
92 Monolith Pinout: yes
Size: 16GB, 64GB
Memory: Sandisk
ID: unknown
Controller: unknown
XOR: --
Page structure: --
Description: 016G, 064G
Notice: 3x10
93 Monolith Pinout: yes
Size: unknown
Memory: unknown
ID: unknown
Controller: unknown
XOR: --
Page structure: --
Description: LI1-1
Notice: U3x7
94 Monolith Pinout: yes
Size: 4GB
Memory: Samsung
ID: ec d7 98 ce
Controller: SM3257EN AA
XOR: 4C912A
Page structure: 1148_27
Description: 4G257ENKDT125212049
Notice: --
95 Monolith Pinout: yes
Size: 8GB
Memory: Micron
ID: 2c 88 04 4b
Controller: CBM2093
XOR: 7421FD
Page structure: 1080
Description: 4GL74A98S-1402K
Notice: --
96 Monolith Pinout: yes
Size: 4GB
Memory: Sandisk
ID: 45 d7 98 92
Controller: AU6989
XOR: 988EE1
Page structure: 1146
Description: TCWYA89LEER5040F2-1005
Notice: --
97 Monolith Pinout: yes
Size: 4GB
Memory: Samsung
ID: ec d7 94 32
Controller: unknown
XOR: B1BABB or E88A31, not sure
Page structure: 1116_1124
Description: 4ZD5SG25M
Notice: --
98 Monolith Pinout: yes
Size: 64GB
Memory: Toshiba
ID: 98 3a 98 a3
Controller: PS2251-V
XOR: FA9E80
Page structure: 1137_1129
Description: K68ACTV15464G 1603-A61042A02
Notice: 6x6
99 Monolith Pinout: yes
Size: 8GB
Memory: Sandisk
ID: 45 de a4 82
Controller: AU6983
XOR: 988EE1
Page structure: 1104
Description: HTX5AUAG1808W 130417HTX589W_MIT
Notice: --
100 Monolith Pinout: yes
Size: 16GB
Memory: Samsung
ID: ec 1a 88 1f
Controller: AU
XOR: unknown
Page structure: unknown
Description: FHTLD89SXX
Notice: --
101 Monolith Pinout: yes
Size: 4GB
Memory: sAMSUNG
ID: ec d7 98 ca
Controller: SM3257
XOR: 1D3507
Page structure: 1066_26
Description: DEDS4G3257ENAA 2228382-979268, 4OM4SB31T
Notice: --
102 Monolith Pinout: yes
Size: 4GB
Memory: Sandisk
ID: 45 d7 98 92
Controller: 82-00605-1
XOR: C634
Page structure: 14_2048_230
Description: 004G
Notice: 2x11

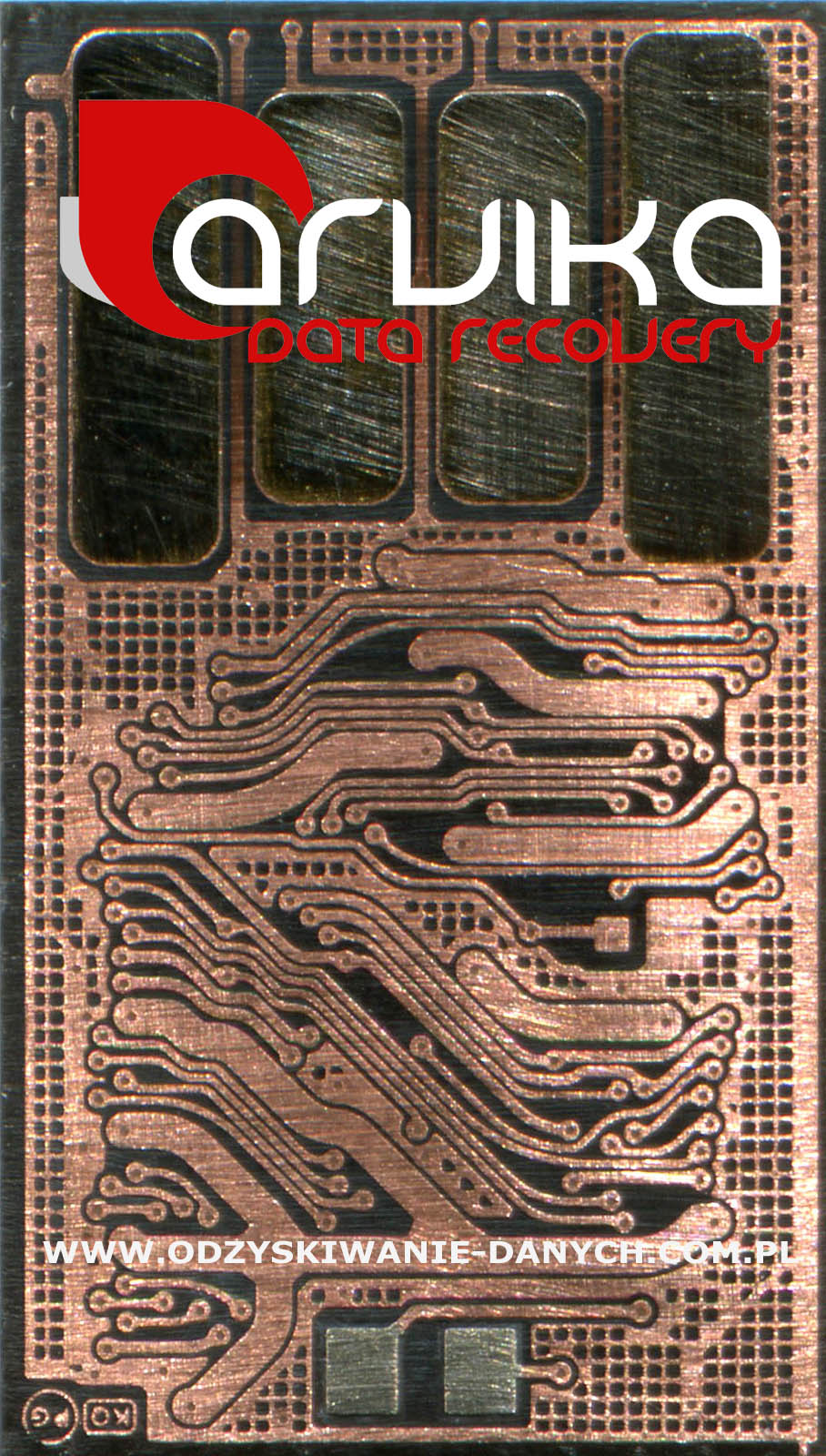

103 Monolith Pinout: yes
Size: 8GB
Memory: Samsung
ID: ec d7 98 ca
Controller: SM3257
XOR: 1D3507
Page structure: 1066_27
Description: 8OM4SB04T
Notice: --
104 Monolith Pinout: no
Size: unknown
Memory: unknown
ID: unknown
Controller: unknown
XOR: --
Page structure: --
Description: 4YD1DC24T
Notice: --
105 Monolith Pinout: yes
Size: 8GB
Memory: Hynix
ID: ad de 94 eb
Controller: AU6989
XOR: 988EE1
Page structure: 1104
Description: SYA1339C1
Notice: --
106 Monolith Pinout: no
Size: 8GB
Memory: unknown
ID: unknown
Controller: unknown
XOR: --
Page structure: --
Description: BSA08GCDHA3UP 3715 CQD3 19A0301
Notice: --
107 Monolith Pinout: yes
Size: 16GB
Memory: Intel
ID: 89 a4 64 32
Controller: 89 a4 64 32
XOR: E8018F
Page structure: 1150_31
Description: YFL06B3259A-16GB1608
Notice: U3x7
108 Monolith Pinout: yes
Size: 16GB, 64GB, 128GB
Memory: Sandisk
ID: 45 4c a8 a2, 45 48 ab a2, 45 3e aa a2
Controller: 20-82-00515-5
Page structure: 14_2048_230
XOR: C634
Description: 016G, 064G, 128G
Notice: 3x10
109 Monolith Pinout: yes
Size: 16GB, 32GB, 64GB, 128GB, 256GB
Memory: Sandisk
ID: 45 3a 98 b3 76 72, 45 3c 98 b3 76 6b, 45 3c 99 b3 7a 72, 45 3e 99 b3 7a 72, 45 48 9a b3 7e 72, 45 48 9a b3 7e 79, 45 48 99 b3 7a 6b
Controller: 20-82-00515-5
XOR: C634
Page structure: 14_2048_230
Description: 016G, 032G, 064G, 128G, 256G
Notice: 3x10
110 Monolith Pinout: yes
Size: 32GB
Memory: Toshiba
ID: 98 3a a8 92
Controller: PS2251
XOR: FA9E80
Page structure: 1138_1134
Description: N68AATGA9232G-5637 1420-140506185
Notice: similar to UFD v65
111 Monolith Pinout: no
Size: 16GB
Memory: unknown
ID: unknown
Controller: unknown
XOR: --
Page structure: --
Description: 3KA16G1610 ML633101368421621
Notice: --
112 Monolith Pinout: no
Size: 32GB
Memory: unknown
ID: unknown
Controller: unknown
XOR: --
Page structure: --
Description: N07CFTV15232G 1739-003235271
Notice: --
113 Monolith Pinout: yes
Size: 32GB, 64GB
Memory: Micron
ID: 2c 88 04 4b
Controller: IT1167
XOR: --
Page structure: --
Description: MIKI 32GB 22 474A JUN 2011
Notice: 2 channels
114 Monolith Pinout: yes
Size: 32GB, 128GB
Memory: Hynix
ID: ad 3a 19 03
Controller: SM3267AES
XOR: D7AF47
Page structure: 1150_27
Description: --
Notice: --
115 Monolith Pinout: yes
Size: 16GB
Memory: Sandisk
ID: 45 3a 94 93
Controller: SM2685
XOR: 4C912A
Page structure: 1102_27
Description: AYM8DF07M
Notice: --
116 Monolith Pinout: yes
Size: 32GB
Memory: Toshiba
ID: 98 3a a8 92
Controller: SSS6697
XOR: C20DC3
Page structure: 1140
Description: 2324465-034.A00LF 2581599
Notice: No LBN, assembly by VT
117 Monolith Pinout: yes
Size: 32GB, 64GB
Memory: Samsung
ID: ec 3a 98 bf 94 c6
Controller: SM3257_41
XOR: 7F6090
Page structure: 1150_27
Description: 32GB 060105 2830129, 64GB 070186 2848266
Notice: V-line, X-line
118 Monolith Pinout: yes
Size: 16GB
Memory: Toshiba
ID: 98 3a 94 93
Controller: SSS6696
XOR: 80809E9E
Page structure: 1098
Description: THNU4KJ00RH07
Notice: 6x6, No LBN, assembly by VT
119 Monolith Pinout: yes
Size: 8GB
Memory: Hynix
ID: ad 3a 18 a3
Controller: SM3259
XOR: 17FE70
Page structure: 1146_31
Description: 8KA08G1510 N86510820473415
Notice: XOR modified by BB
120 Monolith Pinout: yes
Size: 16GB
Memory: Hynix
ID: ad de 94 da
Controller: PS2251
XOR: FA9E80
Page structure: 1109_1103
Description: 2324577 019.A01LF 2677330
Notice: --
121 Monolith Pinout: no
Size: ?
Memory: --
ID: --
Controller: --
XOR: --
Page structure: --
Description: HTTXSKDG1507001 9215324801
Notice: --
122 Monolith Pinout: no
Size: 8GB
Memory: Samsung
ID: ec de 98 de
Controller: FC1178
XOR: 043743 ?
Page structure: 1154_1150
Description: GMT78J2KT6L
Notice: U3x7
123 Monolith Pinout: yes
Size: 64GB
Memory: Sandisk
ID: 98 de 98 92
Controller: SM3257
XOR: 4C912A
Page structure: 1144_27
Description: FAB64GHSTT2SM8B
Notice: 8CE, some connections on internal layer.
124 Monolith Pinout: yes
Size: 16GB, 32GB
Memory: Hynix
ID: ad 3a 18 03
Controller: PS2251-V
XOR: FA9E80
Page structure: 1158_1150
Description: 2324715-122.A00LF 3065661.07 2324715-123.A02LF
Notice: --
125 Monolith Pinout: yes
Size: 32GB
Memory: Intel
ID: 89 a4 64 32
Controller: AU6998
XOR: 988EE1
Page structure: 1138
Description: TX32G-1805A
Notice: U3x7
126 Monolith Pinout: yes
Size: 8GB, 32GB
Memory: Toshiba
ID: 98 de 88 a3 72 51, 98 3a 98 a3
Controller: PS2251-V
XOR: FA9E80
Page structure: 1137_1129
Description: THNU3NN00PM07, THNU5PP00PM07
Notice: 6x6, similar to UFD v199
127 Monolith Pinout: no
Size: 8GB
Memory: --
ID: --
Controller: --
XOR: --
Page structure: --
Description: FAB8GBHSTS3SI2K
Notice: --
128 Monolith Pinout: no
Size: 8GB
Memory: --
ID: --
Controller: --
XOR: --
Page structure: --
Description: 8ZD3SD48T
Notice: --
129 Monolith Pinout: no
Size: 8GB
Memory: --
ID: --
Controller: SSS
XOR: --
Page structure: --
Description: 2324525-004.A00LF 2661268
Notice: --
130 Monolith Pinout: no
Size: 4GB
Memory: Toshiba TC58NVG5T7FLA19
ID: 98 d7 98 82
Controller: PS2251-60
XOR: --
Page structure: --
Description: I60BBTG32104G-031A 1111-110300310 THNU27LA0PG1UT1MB
Notice: --
131 Monolith Pinout: no
Size: 8GB
Memory: --
ID: --
Controller: --
XOR: --
Page structure: --
Description: TPFFK8327117078GB - not sure
Notice: --
132 Monolith Pinout: no
Size: 8GB
Memory: Sandisk
ID: 45 4c 98 a3
Controller: SM3271AD
XOR: --
Page structure: --
Description: YF8GBM FFK871AD
Notice: --
133 Monolith Pinout: no
Size: 8/16GB
Memory: Toshiba
ID: 98 3a 98 a3
Controller: SM3259AA
XOR: --
Page structure: --
Description: TPFFK83259AB-8GB1607
Notice: --
134 Monolith Pinout: no
Size: 8GB
Memory: Sandisk
ID: 45 de 94 93
Controller: SM3267AES
XOR: --
Page structure: --
Description: WF8GBAM FKB767AE
Notice: --
135 Monolith Pinout: yes
Size: 128GB
Memory: Hynix
ID: ad 3c 19 a3
Controller: SM3267AES
XOR: D7AF47
Page structure: 1150_27
Description: ATDHJSMREK0 1638B049630
Notice: --
136 Monolith Pinout: yes
Size: 256GB
Memory: Samsung
ID: ec 1e 98 3f
Controller: SM3280
XOR: E8018F
Page structure: 32_1146_2_32
Description: 256GB 070071 3337762
Notice: 2 channels
137 Monolith Pinout: yes
Size: 8GB
Memory: Samsung
ID: ec d5 14 b6 74
Controller: AU6986
XOR: no XOR
Page structure: 528
Description: 6961 8G 27QS1
Notice: some connections on internal layer
138 Monolith Pinout: yes
Size: 16GB
Memory: --
ID: --
Controller: --
XOR: --
Page structure: -
Description: 016G
Notice: 3x10, VCC-GND short
139 Monolith Pinout: yes
Size: unknown
Memory: --
ID: --
Controller: --
XOR: --
Page structure: -
Description: 2335384-003.A00LF 1767881
Notice: --
140 Monolith Pinout: yes
Size: 64GB
Memory: Sandisk
ID: 45 3e 99 b3 7a 72
Controller: --
XOR: C634
Page structure: 14_2048_230
Description: 064G
Notice: 3x10
141 Monolith Pinout: no
Size: 8GB
Memory: Samsung
ID: ec de 88 bf
Controller: SK
XOR: 011C6B?, adaptive?
Page structure: 1140
Description: --
Notice: --
Photo: Datasave
142 Monolith Pinout: yes
Size: 32GB, 64GB
Memory: Intel
ID: 89 a4 08 32, 89 c4 08 32
Controller: --
XOR: 02013E?
Page structure: 37empty_1157_1152?
Description: B17A2024179H
Notice: U3x7
Photo: Datasave
143 Monolith Pinout: yes
Size: 16GB
Memory: Toshiba
ID: 98 de a4 82
Controller: SSS6696
XOR: 809E9C
Page structure: 1098
Description: THNU4BH00RG07
Notice: 6x6, VT, similar to UFD v25
144 Monolith Pinout: no
Size: 64GB
Memory: Toshiba
ID: 98 3c 98 b3
Controller: PS2251-09
XOR: --
Page structure: --
Description: 2324715-156.B01LF 3392503.05
Notice: --
145 Monolith Pinout: yes
Size: 64GB
Memory: Hynix
ID: ad 5e 28 22
Controller: SM3281
XOR: E8018F
Page structure: 32_1144_32
Description: YDM5HA64936
Notice: --

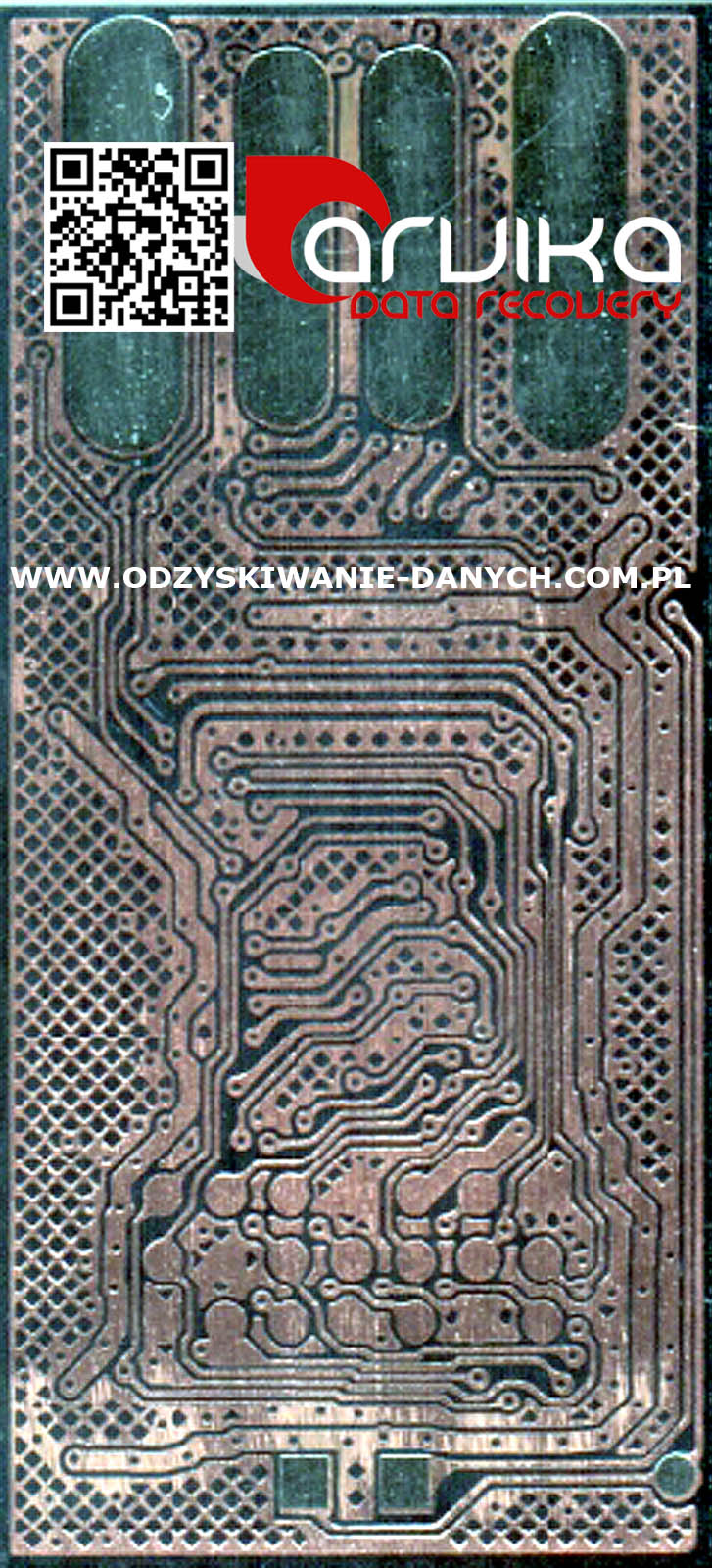

146 Monolith Pinout: yes
Size: 16GB
Memory: Hynix
ID: ad 3a 18 03
Controller: --
XOR: --
Page structure: --
Description: YF882B3259AA-16GB1610
Notice: U3x7
Photo: Datasave
147 Monolith Pinout: yes
Size: 8GB, 32GB
Memory: Samsung
ID: ec de 98 de 94 c5
Controller: SM3257EN
XOR: 4C912A
Page structure: 1130_27
Description: 8YM4SD48T, 31001276 12063505
Notice: H-line, X-line
148 Monolith Pinout: yes
Size: 16GB, 32GB
Memory: Sandisk
ID: 45 3a 94 93, 45 3c 98 b3 76 72
Controller: AU6983
XOR: 988EE1
Page structure: 1104
Description: CCAE1904-H
Notice: similar to UFD v159, SLC?
149 Monolith Pinout: yes
Size: 32GB
Memory: --
ID: --
Controller: --
XOR: --
Page structure: --
Description: DI9HE2A01032GS
Notice: similar to UFD v180, v181, v182
150 Monolith Pinout: yes
Size: 32GB
Memory: Samsung
ID: ec 1a a8 de
Controller: SM3267
XOR: 7F2490?
Page structure: 1148_27
Description: 6C10-032GR C20LF 1510020, ATDSJSMK7I0
Notice: --
151 Monolith Pinout: yes
Size: 32GB
Memory: Sandisk
ID: 45 3c 98 b3 76 72
Controller: SM3269AB
XOR: --
Page structure: 1144_27
Description: WF32GBAM FRN168AB
Notice: --
152 Monolith Pinout: no
Size: 32
Memory: Sandisk
ID: 45 3c 98 b3 76 71
Controller: FC1179
XOR: F00444
Page structure: 1146_1142
Description: --
Notice: --
Photo: Multi-com
153 Monolith Pinout: yes
Size: 16GB
Memory: Hynix
ID: ad 3a 18 03
Controller: CBM2098
XOR: C32E
Page structure: 1144
Description: --
Notice: 4x4
Photo: JeremyB
154 Monolith Pinout: yes
Size: 64GB
Memory: --
ID: --
Controller: --
XOR: --
Page structure: --
Description: --
Notice: --
Photo: JeremyB
155 Monolith Pinout: yes
Size: 32GB
Memory: Micron
ID: 2c a4 08 32
Controller: --
XOR: --
Page structure: --
Description: --
Notice: U3x7
Photo: JeremyB
156 Monolith Pinout: yes
Size: 32GB
Memory: Hynix
ID: ad 3a 18 03 00 50
Controller: PS2251-07 (PS2307), PS2251-V
XOR: FA9E80
Page structure: 1158_1150
Description: 2324615-053.A01LF 3105699.12 A02LF
Notice: bad dump quality
Photo: JeremyB
157 Monolith Pinout: no
Size: 4GB
Memory: Samsung
ID: ec d7 98 ce
Controller: SM3257EN AA
XOR: --
Page structure: --
Description: HTSASDBG115000106
Notice: --
158 Monolith Pinout: yes
Size: 4GB
Memory: --
ID: --
Controller: AU6989SN-GTC
XOR: --
Page structure: --
Description: AB6TDKXG
Notice: --
XRAY: yes
159 Monolith Pinout: yes
Size: 32GB, 64GB
Memory: Sandisk
ID: 45 3c 98 b3 76 72, 45 3e 98 b3 76 72
Controller: FC1178BC
XOR: 21CDD8
Page structure: 1148_1144
Description: WIFR191132N1, CYAJ1911
Notice: similar to UFD v148
160 Monolith Pinout: yes
Size: 32GB
ID: 45 3c 98 b3 76 6b
Controller: FC1179
XOR: 21cd
Page structure: 1148_1144
Description: B110T432L
Notice: --
161 Monolith Pinout: yes
Size: 128GB
ID: ec 1c d9 1f 88
Controller: SM3257_41
XOR: 71C2DB
Page structure: 1150_27
Description: 128GB 022156 3136667
Notice: --
162 Monolith Pinout: yes
Size: 32GB
ID: 98 3c 98 b3 76 72
Controller: TC58NC6626
XOR: 80809e9e
Page structure: 1218
Description: THNU5RQ00RJ07
Notice: 6x6
Photo: JeremyB
163 Monolith Pinout: yes
Size: 8GB
ID: 98 de 88 a3 72 51
Controller: PS2251-68
XOR: FA9E80
Page structure: 1137_1129
Description: 2324577-064.A00LF 2312891
Notice: H-line, X-line
164 Monolith Pinout: yes
Size: 64GB
ID: 2c c4 18 32 a2 00
Controller: CBM2199
XOR: EEBB0C
Page structure: 1152
Description: LSB27A2199-64G
Notice: U3x7
165 Monolith Pinout: yes
Size: 32GB
ID: 98 3a a8 92 76 d7
Controller: SM3257
XOR: 4C912A
Page structure: 1142_27
Description: OS2T212360658 SCN32GC2T
Notice: --
166 Monolith Pinout: yes
Size: 1TB - 1024GB
ID: 45 40 9b b3 7e 6b
Controller: Sandisk 20-82-00515-5
XOR: C634
Page structure: 14_2048_230
Description: 1T00, SDDDC4
Notice: 2CE, 3x10
167 Monolith Pinout: yes
Size: 32GB
ID: 45 3c 98 b3 76 6b
Controller: SM3281
XOR: E8018F
Page structure: 32_1142_32 / 32_1140_32
Description: WF32GBAM FST081BB
Notice: --
168 Monolith Pinout: yes
Size: 32GB
ID: 45 3c 98 b3 76 6b
Controller: PS2251-70
XOR: FA9E80
Page structure: 1144_1140
Description: AUDD0PP06I1
Notice: --
169 Monolith Pinout: no
Size: 32GB
ID: ad 5c 28 2a
Controller: SM3259
XOR: E8018F
Page structure: 1130_31
Description: --
Notice: Xor modified by BB, H-line
Photo: Bolo
170 Monolith Pinout: yes
Size: 32GB
ID: ad de 94 d2
Controller: SM3254
XOR: FFF9FF
Page structure: 1066_26
Description: FAB32GHSMH2SI4B
Notice: V-line
171 Monolith Pinout: yes
Size: 32GB
ID: 45 3c 98 b3 76 72, ad 5c 28 ba 00 80
Controller: FC, AU6998
XOR: 988EE1
Page structure: 1146_1142, 1138
Description: JY7923
Notice: U3x7, can be SLC chip
172 Monolith Pinout: yes
Size: 64GB
ID: ad 5a 28 22
Controller: SM3281_BN
XOR: E8018F
Page structure:32_1144_32
Description: YDM5HA64951
Notice: X-line
173 Monolith Pinout: yes
Size: 16GB, 64GB
ID: 45 4c 98 a3, 45 3e 9a a3
Controller: unknown
XOR: --
Page structure: --
Description: --
Notice: 3x10, LDPC
Photo: PCImage
174 Monolith Pinout: no
Size: 32GB
ID: 45 3c 98 b3
Controller: SM3259
XOR: E8018F
Page structure: 602_31, 600_31, 1128_31?
Description: --
Notice: can be SLC chip, V-line, need cut layer
Photo: Bolo
175 Monolith Pinout: yes
Size: 32GB
ID: 89 a4 64 32 aa 01
Controller: SM3259
XOR: E8018F
Page structure: 1150_31
Description: YF32GB B0KB71AB
Notice: U3x7
176 Monolith Pinout: no
Size: 16GB
ID: 98 3a a8 92
Controller: SM3257
XOR: 4C912A
Page structure: 1130
Description: --
Notice: V-line, X-line
Photo: Datasave
177 Monolith Pinout: yes
Size: 16GB
ID: 45 3a 94 93
Controller: AU6998
XOR: 0B99
Page structure: 1096
Description: refurbished device
Notice: V-line
Photo: Datasave
178 Monolith Pinout: yes
Size: 32GB
ID: 45 3c 98 b3 76 72
Controller: SM3259, SM3271AD
XOR: E8018F
Page structure: 1140_31, 1144_31
Description: HFCBGSMI-2P FRN1
Notice: H-line, X-line, U-short, different sector at planes
179 Monolith Pinout: yes
Size: 16GB
ID: 45 4c 98 a3
Controller: FC1178
XOR: 21cd
Page structure: 1148_1144
Description: HZCX-1016
Notice: H-line, X-line
Photo: Datasave
180 Monolith Pinout: yes
Size: 32GB
ID: 45 3c 98 b3 76 6b
Controller: FC1178
XOR: 21cd
Page structure: 1148_1144
Description: --
Notice: H-line, X-line, similar to UFD v149
Photo: Visok
181 Monolith Pinout: yes
Size: 16GB, 32GB
ID: ad 3a 14 03, ad 5c 28 2a
Controller: FC1178
XOR: 21cd
Page structure: 1154_1150
Description: --
Notice: H-line, X-line, similar to UFD v180, v149
Photo: Datasave
182 Monolith Pinout: yes
Size: 32GB
ID: ad 5c 28 2a
Controller: FC1178
XOR: 21cd
Page structure: 1154_1150?
Description: DI9HE2A026-27G
Notice: H-line, X-line, similar to UFD v180, v149
Photo: Datasave
183 Monolith Pinout: yes
Size: --
ID: --
Controller: --
XOR: --
Page structure: --
Description: HZCX-1016
Notice: H-line, X-line, similar to UFD v179
Photo: Bolo
184 Monolith Pinout: yes
Size: 16GB
ID: ad 3a 18 03
Controller: SM3257
XOR: EFE2F2
Page structure: 1150_27
Description: --
Notice: H-line, X-line
Photo: JeremyB
185 Monolith Pinout: yes
Size: 16GB
ID: 45 4c a8 92
Controller: AU6998
XOR: 67711E
Page structure: 1138
Description: ZX120706
Notice: H-line, X-line, similar to UFD v96
186 Monolith Pinout: no
Size: 8GB
ID: --
Controller: SM3257ENLT
XOR: --
Page structure: --
Description: 31001291 12061541
Notice: H-line, X-line
187 Monolith Pinout: yes
Size: 16GB
ID: 45 4c a8 92 76 50
Controller: 82-00515-5
XOR: C634C7
Page structure: 14_2048_230
Description: 016G
Notice: 2x11
188 Monolith Pinout: yes
Size: 8GB
ID: 98 de 88 a3
Controller: DM
XOR: 1775CE
Page structure: 1144_1152
Description: 8ZD5TG21T
Notice: H-line, X-line, short, cut layer
189 Monolith Pinout: yes
Size: 64GB
ID: 45 3e 98 b3
Controller: FC1178
XOR: 21CDD8
Page structure: 1148_1144
Description: KGC2111IT9T24A
Notice: H-line, X-line
Photo: JeremyB
190 Monolith Pinout: yes
Size: 64GB
ID: 45 3e 98 b3 76 6b
Controller: SM3271AD, SM3259
XOR: E8018F
Page structure: 1140_31
Description: --
Notice: H-line, X-line
Photo: JeremyB
191 Monolith Pinout: yes
Size: 16GB
ID: 45 4c a8 92 76 50
Controller: SM3259
XOR: E8018F
Page structure: 1138_31, 1142_31
Description: 04FSEASH1
Notice: H-line, X-line, similar to UFD v82
192 Monolith Pinout: yes
Size: 2GB
ID: ec d5 84 72
Controller: AU6998
XOR: 988EE1
Page structure: 1070
Description: B2G6998SKDT132205144
Notice: H-line, X-line
193 Monolith Pinout: yes
Size: 8GB
ID: 98 de 98 92 72 d7
Controller: PS2251
XOR: FA9E80
Page structure: 1138_1134
Description: 2324674-001.A00LF 2615204
Notice: H-line, X-line
194 Monolith Pinout: yes
Size: 128GB
ID: 98 3c 99 a3 7a 51
Controller: PS2251-07
XOR: FA9E80
Page structure: 1151_1_1143_1
Description: 2324615-062.A01LF 3054133.02
Notice: H-line, pads, vias
195 Monolith Pinout: yes
Size: 32GB
ID: 45 3c 98 b3 76 72
Controller: FC1179
XOR: FC adaptive
Page structure: 1148_1144
Description: JI79D4H-16G1904 NC004678
Notice: H-line, X-line, some signals are on internal layer
196 Monolith Pinout: yes
Size: 16GB
ID: ad 5a 14 f3 00 70
Controller: DM
XOR: 1775CE
Page structure: 1102
Description: 3KA16G1612 O86C31201675016
Notice: H-line, X-line
197 Monolith Pinout: yes
Size: 2GB
ID: ec d5 84 72 50 42
Controller: SM3257AA
XOR: F33F63
Page structure: 1066_27
Description: --
Notice: H-line, X-line
198 Monolith Pinout: yes
Size: 16GB
ID: ec 1a a8 de 88 c5
Controller: Asolid AS3257ENLT
XOR: 5061FD
Page structure: 1150_2
Description: 2304753-001.A00LF 143702725045
Notice: H-line, V-line

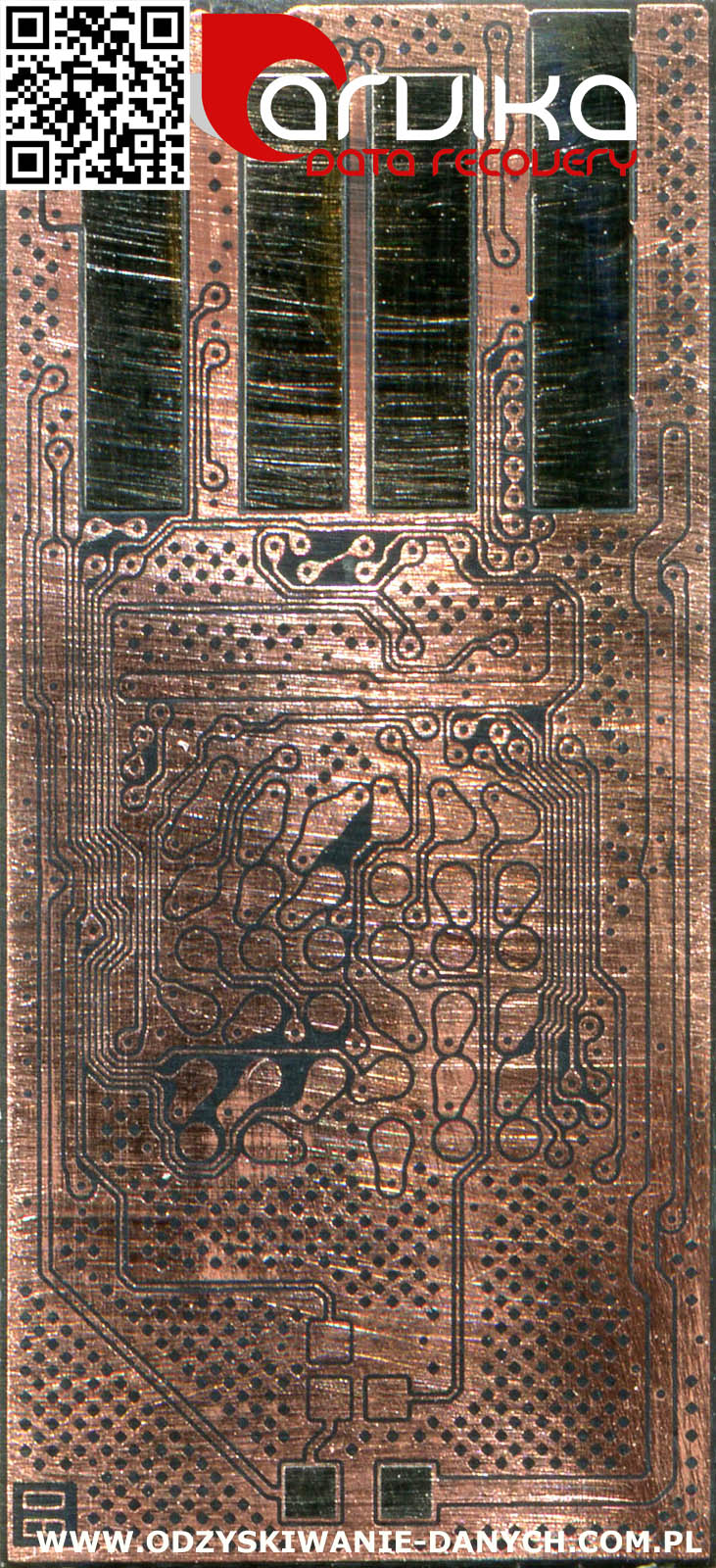

199 Monolith Pinout: yes
Size: 16GB
ID: 98 3a a8 92 76 50
Controller: Phison
XOR: FA9E80
Page structure: 1137_1133
Description: THNU4JP00PM07
Notice: 6X6, similar to UFD v126
200 Monolith Pinout: yes
Size: 128GB
ID: ec 1e 98 af 84 cd
Controller: SM
XOR: E8018F
Page structure: 32_1148_32
Description: 128GB 051080 3859040
Notice: 2 channels, pads, X-line, H-line

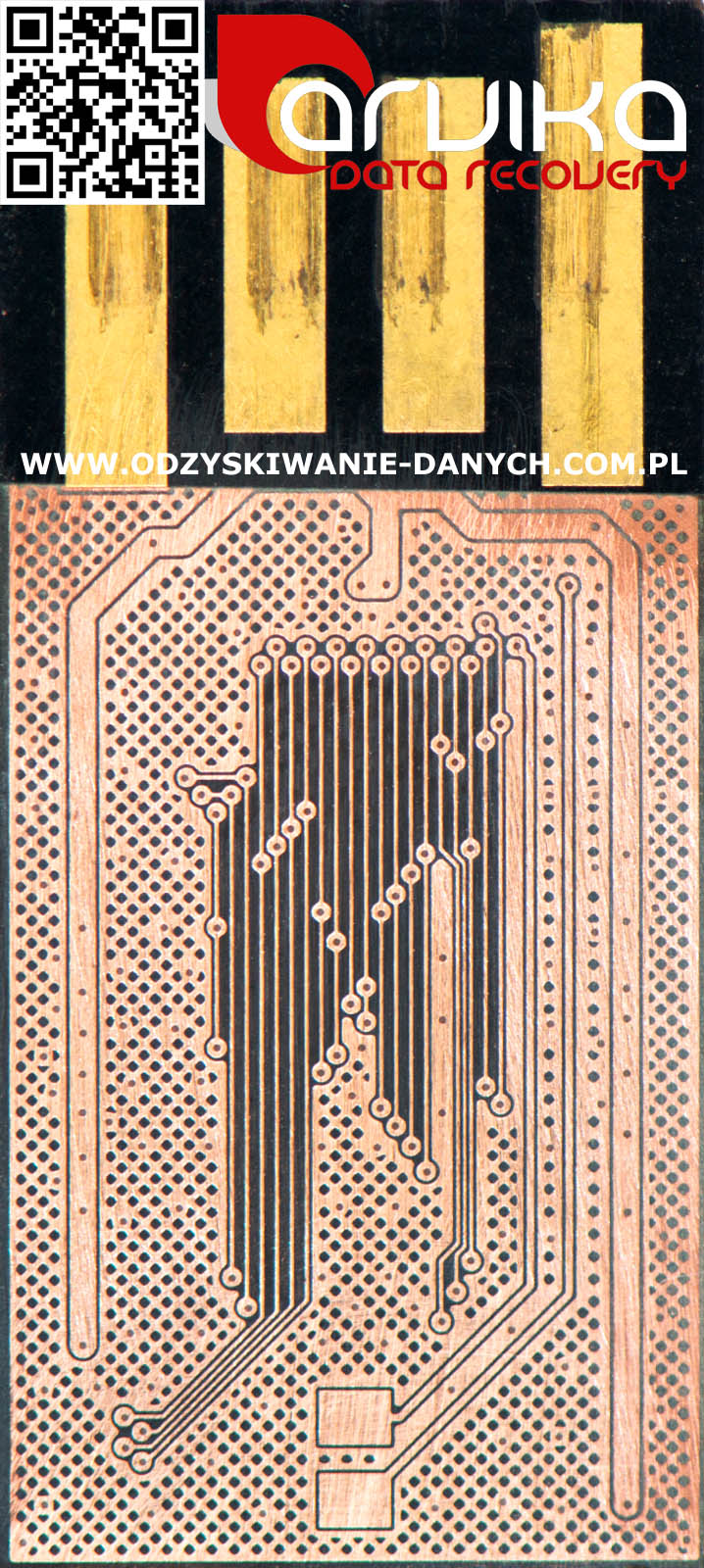

201 Monolith Pinout: yes
Size: 64GB
ID: 2c 84 48 63 a9
Controller: SM3257ENLTBB
XOR: D7AF47
Page structure: 1150_27
Description: --
Notice: HybridX3 chip, V-line, X-line
Photo: JeremyB
202 Monolith Pinout: yes
Size: 64GB
ID: ec 5e 98 af 84 cd
Controller: AU
XOR: 988EE1
Page structure: 1152
Description: ND14B1NTNA0305 CG 3B2317JPE
Notice: U3x7
203 Monolith Pinout: yes
Size: 32GB
ID: 45 3c 98 b3 76 72
Controller: FC
XOR: FC adaptive
Page structure: 1148_1144
Description: JI79D4H-32G1906 NC007003
Notice: V-line, X-line
204 Monolith Pinout: yes
Size: 64GB
ID: 45 3e 98 03 76 6c
Controller: Sandisk
XOR: C634
Page structure: 14_2048_230
Description: SDDDC3, 064G
Notice: 3x10
205 Monolith Pinout: yes
Size: 512GB
ID: 45 40 9b b3 7e 6b
Controller: Sandisk
XOR: C634
Page structure: 14_2048_230
Description: SDCZ430-512G
Notice: 3x10
206 Monolith Pinout: yes
Size: 32GB
ID: 45 3c 98 b3 76 6b
Controller: CBM2199E
XOR: C1E5B2
Page structure: 1144
Description: ZXZ099T24L1ST2D
Notice: V-line, H-line
207 Monolith Pinout: yes
Size: 64GB
ID: 89 c4 08 32 a6 00
Controller: CBM2199A
XOR: EEBB0C
Page structure: 1152
Description: JCI321908
Notice: V-line, H-line
208 Monolith Pinout: yes
Size: 64GB
ID: 45 3e 98 03 76 6c
Controller: Sandisk
XOR: --
Page structure: 14_2048_230
Description: 064G on flash, SDCZ430-032G on the casing
Notice: 3x10
209 Monolith Pinout: yes
Size: 64GB, 128GB
ID: ad 7e 28 0b 00 c0, (32) 89 d3 ac 32 c6 00
Controller: FC1178BC, FC
XOR: FC xor
Page structure: 1154_1150
Description: RMB2279 382301 9C
Notice: V-line, H-line, X-line, 6th byte addressing
210 Monolith Pinout: yes
Size: 4GB
ID: ad d7 14 9e 34 4a
Controller: FC
XOR: FC xor
Page structure: 1104_1100
Description: --
Notice: H-line, V-line
Photo: JeremyB
211 Monolith Pinout: yes
Size: 128GB
ID: ad 7e 28 53 02 b0
Controller: SM
XOR: E8018F
Page structure: 32_1148_32, 32_1132_32, 32_1136_32
Description: H128G-2209-8A1B 3281-B4P, Integral
Notice: H-line, X-line, vias
212 Monolith Pinout: yes
Size: 32GB
ID: 98 3c 98 b3 76 e3
Controller: PS2251
XOR: FA9E80
Page structure: 1144_1140
Description: N70CCTX3D132G 1947-003528535
Notice: H-line, X-line






MICRO SD MONOLITHS

NR Monolith photo Info
1 Monolith Pinout: yes
Size: 1GB
Memory: K9G8G08U0B
ID: ec d3 14 a5
Controller: SK6281
Description: MM8GR01GUACA-NA
2 Monolith Pinout: yes
Size: 4GB, 8GB, 16GB
ID 4GB: ec d7 98 ca, ec de d9 ca, ec de d9 ca
Controller: --
Page structure: 2138_30
Description:MMB3R04GUACA-GE, MMB3R08GUACA-GE, MMB3R16GUACA-GE
Notice: 2x15
3 Monolith Pinout: yes
Size: 2GB
Memory: SDTNMNAHSM_002G
ID: 45 c5 98 b2
Controller: Sandisk
Description: 1019004442D8W, 09314044518389
Notice: 3x7
4 Monolith Pinout: yes
Size: 1GB
Memory: unknown
ID: unknown
Controller: unknown
Description: Kingston 0811G21590V SD-C01G
Notice: 6x4
5 Monolith Pinout: yes
Size: 4GB
Memory: unknown
ID: unknown
Controller: unknown
Description: Silicon Power E304G1041 TMPT0M2041063
Notice: 6x4
6 Monolith Pinout: yes
Size: 8GB
Memory: Spectec
ID: 2c 68 04 4a
Controller: SD_20
Page structure: 1074_1070
Description: Kingston SDC4/8GB N0346-001.A00LF
Notice: CE1 in untypical place
7 Monolith Pinout: yes
Size: 2GB
Memory: Toshiba
ID: 98 d5 84 32, 45 d5 88 82 72 55
Controller: PS2251, SD_20, 20-82-00511-1
Description: SD-C02G 1215CA7497P
Page structure: 1109_1103, 14_2048_230
XOR: C634
Notice: 6x4
8 Monolith Pinout: yes
Size: unknown
Memory: unknown
ID: unknown
Controller: unknown
Notice: 6x4
9 Monolith Pinout: yes
Size: 4GB
Memory: TH58NVG5T2ETA00
ID: 98 d7 98 b2
Controller: unknown
Description: WS3AQ94096111050
10 Monolith Pinout: yes
Size: 4GB
Memory: K9ABG08U0A
ID: ec d7 98 ca
Controller: SM3254
Description: BWSS4G100811
Notice: problem chip, not so good dump quality
11 Monolith Pinout: yes
Size: 8GB
Memory: Toshiba
ID: 98 d7 99 b2
Controller: SD_20 (Phison)
XOR: 3A0920
Page structure: 1074_1070
Description: Kingston C08G SDC4/8GB
Notice: 6x4
12 Monolith Pinout: yes, for 8-bit
Size: 8GB
Memory: TH15G3GAFA
ID: 98 c7 98 92
Controller: unknown
Description: E308G1032 TMPI100701326, Kingston C08G
Notice: 6x4, need working card for make pinout, 16-bit bus
13 Monolith Pinout: yes
Size: 4GB
Memory: SDTNPNAHEM-004G
ID: 45 d7 98 92
Controller: unknown
Description: Sandisk 113240817CD1J
Notice: 3x7
14 Monolith Pinout: yes
Size: 16GB, 32GB
Memory: K9ACGD8U0M-SCB0
ID: ec de 98 ce
Controller: unknown
Description: Platinet MF16GMIESM KN12T42, class 6
Transcend class 4, Y32GD03 MAS1011186, Y32GD02 MAS1011052, Y32GD11 MAS1030088
Notice: problem chip, bad dump quality
Photo: Alkemist
15 Monolith Pinout: yes
Size: 32GB
Memory: K9ACGD8U0M-SCB0
ID: ec de 98 ce
Controller: unknown
Description: 020016D0832G, 011087D0232G, PSF32GMCSDHC4-NT-1239, 032GC32 MAS1071261, class 4
Notice: 2x15
16 Monolith Pinout: yes
Size: 2GB
Memory: K9GAG08U0E
ID: ec d5 84 72
Controller: SK6221
Description: MMAGR02GUECA-MB
Notice: 2x15
17 Monolith Pinout: yes
Size: 4GB
Memory: K9ABG08U0A
ID: ec d7 98 ca
Controller: SM3254
Description: GF3AK1409609533
18 Monolith Pinout: yes
Size: 16GB
Memory: Toshiba
ID: 98 de 84 93
Controller: SK6213
Description: Kingston 16GB SDC10
Notice: 6x4
19 Monolith Pinout: yes
Size: 32GB, 64GB
Memory: Sandisk
ID: 45 3c 9a 92, 45 3e 9b 92
Controller: Sandisk
Page structure: sector 4584
Description: Sandisk Ultra 64GB XCI 3045DGS8C0ET, 3465PGSC94SJ, 3052DGUK604H
Notice: 3x7, crypted
20 Monolith Pinout: yes
Size: 8GB, 16GB, 32GB
Memory: Toshiba
ID: 98 de 84 93, 98 d7 98 92, 98 de 98 92
Controller: PS2251
Page structure: 1138_1132, 1152_1146
XOR: 5061, adaptive
Description: Sony SR-8C4, SR-16C4, SR-32UY, Class 4, E316G1234 TPSI120800823, E516G1308 TP2I130200262, E308G1234 TPSI120800683, E532G1303 TF2I130100013, E516G1245 TM2I121001103, E532G1250 TP2I121200299
Notice: 6x4, Dynamic XOR
Photo: Alkemist
21 Monolith Pinout: yes
Size: 32GB
Memory: unknown
ID: unknown
Controller: unknown
Description: ---
22 Monolith Pinout: yes
Size: 8GB, 16GB
Memory: Toshiba
ID: 98 de 84 93, 98 de 98 92
Controller: SD_20, PS2251 1138_1132, 1108_1102
Description: E416G1308 TF2T0M2C08185, PQI E516G1241 TP2T0M2B41142, E508G1314 TF2T0M2C14007 class 4, U1
Notice: 6x4, Dynamic XOR
23 Monolith Pinout: yes
Size: 2GB, 4GB, 8GB
Memory: Toshiba, Sandisk
ID: 98 d5 94 32, 45 c7 95 32 16, 45 ce 96 32
Controller: SN
Page structure: 6_512_18
XOR: C634
Description: Sandisk, 0832303528DIK
Notice: 3x7, 4GB, 8GB - 16bit chip
24 Monolith Pinout: yes
Size: 2GB
Memory: unknown
ID: unknown
Controller: unknown
Description: ---
Notice: 6x4
Photo: Alkemist
25 Monolith Pinout: yes
Size: 32GB
Memory: unknown
ID: unknown
Controller: unknown
Description: 032GC06MAD0020056TW
26 Monolith Pinout: yes
Size: 32GB
Memory: FZBWTC58NVG6T2HTA00
ID: 98 de 98 92
Controller: unknown
Description: E432G1217 TPSI12040088
Notice: 6x4
27 Monolith Pinout: no
Size: 32GB
Memory: unknown
ID: unknown
Controller: unknown
Description: ADATA G32G1204473928
28 Monolith Pinout: yes
Size: 16GB, 32GB
Memory: Micron
ID: 2c 64 44 4b
Controller: SM3257
Page structure: 1112_31
XOR: F60234
Description: ADATA G32G1205802539, G32G1205359833
Notice: some connection to nand is under layer
29 Monolith Pinout: yes
Size: 8GB
Memory: K9ABG08U0B
ID: ec d7 98 ce
Controller: SK
Page structure: 24_1148_1152
XOR: dynamic BN
Description: MMBTR08GUBCA-ME
Notice: 2x15
30 Monolith Pinout: yes
Size: 16GB
Memory: Micron
ID: 2c 68 04 4a
Controller: SM3254/SM3257
Page structure: 1066_26
XOR: FE79FA
Description: G16G1202415817
Notice: can access only two banks
31 Monolith Pinout: yes
Size: 32GB
Memory: MT29F128G08CJACA
ID: 2c 88 05 ca
Controller: SK6221
Description: Kingston SDC10
32 Monolith Pinout: yes
Size: 4GB
Memory: FZBWTC58TVG5T2HTA00
ID: 98 d7 98 92
Controller: PS2251 1138_1132
Description: Toshiba C04G, class 4
Notice: 6x4, Dynamic XOR
33 Monolith Pinout: yes
Size: 8GB, 16GB, 32GB
Memory: FZBWTC58NVG6T2HTA00
ID: 98 de 98 92, 98 3a 99 92
Controller: PS2251 1138_1132
Description: Kingston C16G SDC4, class 4, C08G, C16G, C32G
Notice: 6x4, Dynamic XOR
34 Monolith Pinout: yes
Size: 16GB
Memory: ???
ID: 98 de 96 32
Controller: SD_18
Description: Goodram C16G, class 4
Notice: 6x4
35 Monolith Pinout: yes
Size: 32GB, 64GB
ID: ec 3a d9 ce 78 c4
Controller: Unknown
Page structure:32_1144, 44_1144
XOR:BN ff_00
Description: Samsung MB-MPBGC MBMPBGVEQAFA-XH DHJFN22GB329, MB-MGCGB MBMGCGVF0AGA-XH, SR-64UY, class 10
Notice: 2x15, need align two planes for assembly
36 Monolith Pinout: yes
Size: 8GB
Memory: K9ABG08U0A
ID: ec d7 98 ca
Controller: SM3255Q
Description: Samsung MMB3R08GUACA-MG, class 2
Notice: 2x15
37 Monolith Pinout: yes
Size: 2GB
Memory: H27UAG8T2ATR
ID: ad d5 94 25
Controller: PS8000
Description: H24U2GTH1BRH
38 Monolith Pinout: yes
Size: 4GB
Memory: K9ABG08U0A
ID: ec d7 98 ca
Controller: IT/PS Xor 267f
Description: Sandisk HSP04GM3SSM
39 Monolith Pinout: yes
Size: 2GB, 4GB
Memory: TC58NVG4T2ETA00
ID: 98 d5 98 b2 76 54
Controller: SD_20
Page structure: 1074_1070
XOR: 3A0920
Description: SD-C02G, C04G
Notice: 6x4
40 Monolith Pinout: yes
Size: 8GB
Memory: Sandisk
ID: 45 ce 99 82 7a
Controller: Sandisk
Description: Class 2
Notice: 3x7, 16bit pinout
41 Monolith Pinout: yes
Size: 8GB, 16GB
Memory: Sandisk
ID: 45 de 98 92, 45 4c 99 92
Controller: Sandisk
Page structure: sector 4584
Description: SilverHT 3034DGNP004D, Class 4, Sandisk Ultra, 3072DGWMS0N7, 3406DGCRQ0RT
Notice: 3x7, crypted
42 Monolith Pinout: yes
Size: 64GB
Memory: unknown
ID: unknown
Controller: CBM3088
Description: MMB3D08BUACA-GE Class 10
Notice: Need cut layer
43 Monolith Pinout: yes
Size: 4GB, 8GB, 16GB
Memory: Sandisk
ID: 45 c7 98 b2, 45 ce 99 b2
Controller: Sandisk
Description: Class 4
Notice: 3x7, 16bit NAND, can't recover
44 Monolith Pinout: yes
Size: 2GB, 4GB
Memory: unknown
ID: unknown
Controller: unknown
Description: SD-C02G
Notice: 6x4
45 Monolith Pinout: yes
Size: 16GB, 32GB, 64GB
Memory: Sandisk
ID: 45 4c 99 92, 45 3c 9a 92, 45 3e 9b 92
Controller: 20-82-00511-1
Page structure: 14_2048_230
Description: Sandisk Class 4
Notice: 3x7
46 Monolith Pinout: yes
Size: 16GB
Memory: unknown
ID: unknown
Controller: unknown
Description: Kingston SDC10 Class 10
Notice: 6x4
47 Monolith Pinout: yes
Size: 2GB
Memory: HVPE3
ID: 98 d5 95 ba
Controller: PS8000
Description: Kingston SD-C02G
Notice: 6x4
48 Monolith Pinout: yes
Size: 64GB
Memory: Toshiba
ID: 98 3a 99 92
Controller: PS2251 1152_1146
Description: Kingston SDCX10
Notice: 6x4, Dynamic XOR
49 Monolith Pinout: yes
Size: 4GB
Memory: unknown
ID: unknown
Controller: unknown
Description: Kingston SDC4, class 4
Notice: 6x4
50 Monolith Pinout: yes
Size: 16GB, 32GB
Memory: SDTNPNCHEM-032G
ID: 45 3c 9a 92
Controller: 20-82-00511-1 14_2048_230 Xor C634_32I_WL
Page structure: 14_2048_230
Description: Sandisk Ultra Plus, 4151CMHEH1KP, 4174PM01N 1CT, 4324CM16T1UC Class 4
Notice: 3x7
51 Monolith Pinout: yes
Size: 8GB, 16GB, 32GB
Memory: Toshiba
ID: 98 de 98 92, 98 3a 99 92
Controller: unknown
Page structure: 1146
XOR: 6C9C6C, 936393, adaptive?
Description: Kingston SDC4, Class 4, C08G
Notice: 6x4
52 Monolith Pinout: yes
Size: 2GB
Memory: Hynix
ID: ad d5 94 9a
Controller: SD_20 (Phison)
Page geometry: 1074_1070
XOR: 3A0920
Description: H24U2GTM1DRH
53 Monolith Pinout: yes
Size: 32GB
Memory: Intel
ID: 89 88 24 4b
Controller: CBM2098
Page structure: 1103
XOR: 7421FC
Description: PYK 20131188MB, class 10
54 Monolith Pinout: yes, need verify
Size: 2GB
Memory: unknown
ID: unknown
Controller: unknown
Description: Samsung MMAGR02GUFCA-MN
Notice: 2x15
55 Monolith Pinout: yes
Size: 64GB
Memory: Sandisk
ID: unknown
Controller: Sandisk
Description: Sandisk Extreme Plus
Notice: 3x7
56 Monolith Pinout: yes
Size: 8GB
Memory: FZBWTC58NVG6T2HTA00
ID: 98 de 98 92
Controller: Phison
XOR: F71636
Description: C08G class 4
Notice: 6x4
57 Monolith Pinout: yes
Size: 4GB, 16GB
Memory: Samsung
ID: ec d7 98 ce, ec de 98 ce
Controller: unknown
XOR: 67711E
Description: HTSMUABG123500206 4374828740, class 4, 6
Notice: 3x7
58 Monolith Pinout: yes
Size: 8GB
Memory: unknown
ID: unknown
Controller: unknown
XOR: unknown
Description: AUMTDSMN6G1 1448B756125 class 6
59 Monolith Pinout: yes
Size: 64GB
Memory: Toshiba
ID: 98 3a 95 93
Controller: PS8210
Page structure: 1106_1102
XOR: FA9E80
Description: SDCA10 class 10 N0475-002.A00LF
Notice: 6x4, 2 channels
60 Monolith Pinout: yes, need verify
Size: 64GB
Memory: unknown
ID: unknown
Controller: unknown
Description: SDCA10 class 10 N0475-004.A00LF
Notice: 6x4
61 Monolith Pinout: yes
Size: 8GB
Memory: Toshiba FZBWTC58NVG6T2HTA00
ID: 98 de 98 92
Controller: PS2251
Page structure: 1138_1132
XOR: dynamic
Description: SDC4 class 4 31417-005.A00LF, TP2K112110019 E408G1244
Notice: 6x4
62 Monolith Pinout: yes
Size: 8GB
Memory: Toshiba
ID: 98 de 98 92
Controller: Phison
Description: C08G, SDC4 Class 4
Notice: 6x4
63 Monolith Pinout: no
Size: 8GB
Memory: unknown
ID: unknown
Controller: unknown
Description: MMCG8GQGC-SD Class 10, IMRO
Notice: --
64 Monolith Pinout: yes
Size: 1GB
Memory: unknown
ID: unknown
Controller: unknown
Description: SD-C01G
Notice: 6x4
65 Monolith Pinout: yes
Size: 2GB
Memory: Samsung
ID: ec d5 94 76
Controller: EN2683
Page structure: 1075_26
XOR: FF09FD (DA) + GRID (full page)
Description: --
Notice: 2x15, remove grid, make ECC, than XOR
66 Monolith Pinout: yes
Size: 4GB
Memory: Toshiba
ID: 98 d7 94 32
Controller: SD_20 v2
Page structure: 1109_1103
XOR: FA9E80
Description: E304G1116 TESKOM1102623, E404G1141 TESKOM1107391
Notice: --
67 Monolith Pinout: no
Size: 8GB, 64GB
Memory: unknown
ID: unknown
Controller: unknown
Description: ASHCFAY8GB 1550, MMB3D08BUACA-GE
Notice: --
68 Monolith Pinout: no
Size: 64GB
Memory: unknown
ID: unknown
Controller: unknown
Description: Lexar 300x 7226181001C 31485-C10-64GBBM B 3914B
Notice: Connections under top layer
69 Monolith Pinout: yes
Size: 16GB
Memory: unknown
ID: unknown
Controller: unknown
Description: GF AHAI133650, MMB3RO8BUACA-GE
Notice: --
70 Monolith Pinout: yes
Size: 8GB, 16GB, 32GB
Memory: Samsung
ID: ec de 98 de, ec de 98 ce
Controller: SM3257, PS
Page structure: 1148_27, 1134
XOR: 4C912A, F7B031, 5061FD
Description: 1426B695043 31503-002.A00LF, SR-8C4, SR-16C4, SR-32UY
Notice: --
71 Monolith Pinout: no
Size: 1GB
Memory: unknown
ID: unknown
Controller: unknown
Description: --
Notice: --
72 Monolith Pinout: yes
Size: 8GB
Memory: unknown
ID: unknown
Controller: unknown
Description: TC58-6D2H-DA61 15091801
Notice: --
73 Monolith Pinout: no
Size: 4GB
Memory: unknown
ID: unknown
Controller: unknown
Description: --
Notice: --
74 Monolith Pinout: yes
Size: 64GB, 128GB
Memory: Toshiba
ID: 98 3a 95 93, 98 3c 96 93 7e 51
Controller: PS8210
Page structure: 1106_1102
XOR: FA9E80
Description: N0572-002.A00LF SDCA3/64GB, N0572-002.A01LF, N0593-001.A01LF SDCA3
Notice: 6x4, two data channels
75 Monolith Pinout: yes
Size: 16GB, 32GB 64GB
Memory: Sandisk
ID: 45 4c a8 a2, 45 3c a9 a2, 45 3e aa a2 7e 51
Controller: 20-82-00511-1
Page structure: 14_2048_230
XOR: C634
Description: 5131DR25T131, 5171DRT0704F, 5083DR16T02S, Class 10
Notice: 3x7
76 Monolith Pinout: yes
Size: 4GB
Memory: Toshiba
ID: 98 d7 98 92
Controller: unknown
Page structure: --
XOR: C634
Description: 1227PV7569N, Class 4
Notice: 6x4
77 Monolith Pinout: yes
Size: 64GB
Memory: unknown
ID: unknown
Controller: unknown
Page structure: --
XOR: --
Description: Sony SR-64UX, Class 10
Notice: --
78 Monolith Pinout: no
Size: 512MB
Memory: unknown
ID: unknown
Controller: unknown
Page structure: --
XOR: --
Description: N0018-001.A00LF
Notice: --
79 Monolith Pinout: yes, need verify
Size: 64GB
Memory: unknown
ID: unknown
Controller: unknown
Page structure: --
XOR: --
Description: E464G1425 TP2KE46184A11
Notice: --
80 Monolith Pinout: yes, need verify
Size: 16GB
Memory: unknown
ID: unknown
Controller: unknown
Page structure: --
XOR: --
Description: E516G1523 TF4N002824241 UV5EA067414
Notice: 6x4, similar to MicroSD v60
81 Monolith Pinout: yes
Size: 16GB, 32GB
Memory: Toshiba
ID: 45 4c 98 a3 76, 98 3a 98 a3, 45 4c 98 a3
Controller: SM3257
Page structure: 1146, 1144_31, 1138
XOR: 67711E, 2384C9
Description: SDC10G2 N0591-003.A00LF, 1721W052201 BSTDJAM26H1, BSTDJALJ6H1
Notice: --
82 Monolith Pinout: yes
Size: 32GB, 64GB
Memory: Toshiba
ID: 98 de 94 93, 98 3a 95 93
Controller: PS8210
Page structure: 1106_1102
XOR: FA9E80
Description: Sony SR-32UX2, SR-64UX2, E532G1619 TF4N002985136, E564G1541 TF4N00289023S
Notice: 6x4, 2 channels
83 Monolith Pinout: no
Size: 4GB
Memory: unknown
ID: unknown
Controller: unknown
Page structure: --
XOR: --
Description: C04G 1237RL9401R
Notice: --
84 Monolith Pinout: no
Size: 32GB
Memory: unknown
ID: unknown
Controller: unknown
Page structure: --
XOR: --
Description: HAGC94A04 21008-C10-32GBBS B 4915B
Notice: --
85 Monolith Pinout: yes
Size: 8GB, 16GB, 32GB
Memory: Toshiba
ID: 98 de 88 a3, 98 3a 98 a3
Controller: SD_20 v2
Page structure: 1148_1142
XOR: adaptive
Description: E516G1604 TWLN002936738, E532G1536 TWLN002869358, E532G1541 TWLN002888910, CLASS 10, SDC10G2, CG08G, SR-8C4
Notice: 6x4
86 Monolith Pinout: no
Size: 128GB
Memory: unknown
ID: unknown
Controller: unknown
Page structure: --
XOR: --
Description: CQDX45-E 21004-C10-128GBJS B 2415J, CLASS 10
Notice: --
87 Monolith Pinout: yes
Size: 8GB
Memory: unknown
ID: unknown
Controller: unknown
Page structure: --
XOR: --
Description: N0490-005.A00LF, CLASS 10
Notice: 6x4
88 Monolith Pinout: no
Size: 64GB
Memory: unknown
ID: unknown
Controller: unknown
Page structure: --
XOR: --
Description: MMB3RO8BUACA-GE, class 10
Notice: --
89 Monolith Pinout: yes
Size: 8GB
Memory: unknown
ID: unknown
Controller: unknown
Page structure: --
XOR: --
Description: HK1512B8T2F, class 10
Notice: --
90 Monolith Pinout: yes
Size: 16GB
Memory: Sandisk
ID: 45 4c a9 92
Controller: unknown
Page structure: 14_2048_230
XOR: C634
Description: 5492YKA3H3V7, class 4, 5325YKA6C1CS, class 10
Notice: 3x7
91 Monolith Pinout: no
Size: 32GB
Memory: unknown
ID: unknown
Controller: unknown
Page structure: --
XOR: --
Description: Z32GF07 MDS4022642, class U1
Notice: --
92 Monolith Pinout: yes
Size: 16GB,32GB
Memory: Samsung
ID: ec de 98 de
Controller: unknown
Page structure: 36_2272
XOR: adaptive + grid?
Description: MB-MPBGC MBMPBGVEQBFW-B DHTI890GD343, MB-MS32D MBMSBGVEQBFW-B DHTED89GL427 class U1
Notice: 2x15
93 Monolith Pinout: yes
Size: 32GB
Memory: Samsung
ID: ec 1a 88 1f
Controller: unknown
Page structure: 36_2272
XOR: adaptive + grid?
Description: MB-MP32D MBMPBGVEDCCxxx class U1, Samsung Evo
Notice: 2x15
94 Monolith Pinout: yes
Size: 16GB, 32GB, 64GB, 128GB
Memory: Sandisk
ID: 45 4c a8 a2 76 51, 45 3c a9 a2, 45 3c 96 93, 45 3e aa a2 7e 51, 45 3e 97 93 7e 51, 45 48 ab a2
Controller: 20-82-00515-5
Page structure: 14_2048_230, 14_2048_146
XOR: C634
Description: 5505DRC7R165, 6254CRAXS23S, 6326DRDL80TH, 6416DRGQ405G, 8075DPGD317P, class U1
Notice: 3x7, sector number assembler
95 Monolith Pinout: yes
Size: 32GB, 64GB
Memory: Sandisk
ID: 45 3c 96 93, 45 3e 97 93
Controller: 20-82-00270-1
Page structure: 14_2048_146
XOR: C634
Description: 5141DL89T15F class U3, 6467DLFDK0VU, 6263PKAJY7J5
Notice: 3x7
96 Monolith Pinout: no
Size: 64GB
Memory: unknown
ID: unknown
Controller: unknown
Page structure: --
XOR: --
Description: B63107 9173BA 64G 09OS2 class U1
Notice: --
97 Monolith Pinout: 50%
Size: 16GB
Memory: unknown
ID: unknown
Controller: unknown
Page structure: --
XOR: --
Description: MB-MSAGB MBMSAGVDDACA-XF DHJIA63GA244 class 6
Notice: 2x15, similar to MicroSD v35
98 Monolith Pinout: no
Size: 4GB
Memory: unknown
ID: unknown
Controller: unknown
Page structure: --
XOR: --
Description: 94677-E01.A00LF class 4
99 Monolith Pinout: yes
Size: 32GB
Memory: unknown
ID: unknown
Controller: unknown
Page structure: --
XOR: --
Description: MMB3D08BUACA-GE CL8S161001, class 10
Notice: some connection on second layer, probably card is fake 32GB, should be 8GB
100 Monolith Pinout: yes
Size: 16GB, 32GB
Memory: unknown
ID: unknown
Controller: unknown
Page structure: --
XOR: --
Description: MBMGAGUDDCCW-B MB-MG16D DCMCK12GB418, class U1 MB-MG32D MBMGBGUEQCFW-B DCMBF26GG414, Samsung Pro
Notice: 2x15
101 Monolith Pinout: no
Size: 64GB
Memory: unknown
ID: unknown
Controller: unknown
Page structure: --
XOR: --
Description: E564G1536 TF4KE59010A06, class 10
102 Monolith Pinout: no
Size: 64GB
Memory: unknown
ID: unknown
Controller: unknown
Page structure: --
XOR: --
Description: MMB3D08BUACA-GE, class 10
103 Monolith Pinout: no
Size: 128GB
Memory: unknown
ID: unknown
Controller: unknown
Page structure: --
XOR: --
Description: E5X281603 TWLKE61088A05, class U1
Notice: 6x4
104 Monolith Pinout: no
Size: 8GB
Memory: unknown
ID: unknown
Controller: unknown
Page structure: --
XOR: --
Description: --, class 6
105 Monolith Pinout: no
Size: 64GB
Memory: Sandisk (fake?)
ID: unknown
Controller: unknown
Page structure: --
XOR: --
Description: MMSCGS16SJRSS-T0, class 10
106 Monolith Pinout: yes
Size: 32GB
Memory: Toshiba
ID: 98 3a 98 a3
Controller: PS
Page structure: 4564_4644
XOR: 5061FD? adaptive?
Description: class U3
Notice: 6x4, LDPC
107 Monolith Pinout: yes
Size: 64GB
Memory: Samsung
ID: ec de 98 ce
Controller: SMxxxx
Page structure: 1148_31
XOR: F00020
Description: 064GD45 M9S1102605, class U1
108 Monolith Pinout: yes
Size: 128GB
Memory: Sandisk
ID: 45 3e 9b 92
Controller: 20-82-00511-1
Page structure: 14_2048_230
XOR: C634
Description: 4306DMT2708N, class 10
Notice: 3x7, 2CE
109 Monolith Pinout: yes
Size: 8GB
Memory: Toshiba
ID: 98 de 88 a3
Controller: SD_20 v2
Page structure: 1148_1142
XOR: 5061 adaptive
Description: C08G, class 4
Notice: 6x4
110 Monolith Pinout: no
Size: 8GB
Memory: unknown
ID: unknown
Controller: unknown
Page structure: --
XOR: --
Description: 1642W102010 BSTHDAM26GC class 10
Notice: --
111 Monolith Pinout: yes
Size: 64GB
Memory: unknown
ID: unknown
Controller: unknown
Page structure: --
XOR: --
Description: MMDGSD ZKW-T0 AU 1703 32B FFK8
Notice: --
112 Monolith Pinout: yes
Size: unknown
Memory: unknown
ID: unknown
Controller: unknown
Page structure: --
XOR: --
Description: was removed
Notice: --
113 Monolith Pinout: no
Size: 32GB
Memory: unknown
ID: unknown
Controller: unknown
Page structure: --
XOR: --
Description: MMB3R08BULCZ-GE
Notice: --
114 Monolith Pinout: no
Size: 4GB
Memory: unknown
ID: unknown
Controller: unknown
Page structure: --
XOR: --
Description: N0043-012.A00LF
Notice: --
115 Monolith Pinout: yes
Size: 16GB, 32GB
Memory: Micron
ID: 2c 84 c5 4b, 2c 64 44 4b
Controller: SD_20 v2, SD_20
Page structure: 1102_1096, 1108_1102
XOR: FA9E80
Description: SDC10/16GB N0501-001.A00LF, SDC10/32G 94749-E01.A00LF
Notice: 6x4
116 Monolith Pinout: yes
Size: 16GB, 32GB
Memory: Toshiba
ID: 98 de 98 92
Controller: PS2251
Page structure: 1152_1146
XOR: adaptive
Description: Class 10
Notice: 6x4
117 Monolith Pinout: no
Size: 32GB
Memory: unknown
ID: unknown
Controller: unknown
Page structure: --
XOR: --
Description: Class 10
Notice: --
118 Monolith Pinout: yes
Size: 64GB
Memory: Toshiba
ID: 98 3a 95 93
Controller: PS2251
Page structure: 1106_1102
XOR: FA9E80
Description: SDCA10/64GB N0475-005.A00LF Class U1
Notice: 6x4
119 Monolith Pinout: yes
Size: 8GB
Memory: unknown
ID: unknown
Controller: unknown
Page structure: --
XOR: --
Description: C08G SDC4/8GB
Notice: 6x4
120 Monolith Pinout: yes
Size: 64GB
Memory: Toshiba
ID: 98 3a 98 a3
Controller: SD_20 v2
Page structure: 1148_1142
XOR: 5061 adaptive
Description: E564G1541 TWLN002888510 5414TSGGA040
Notice: 6x4
121 Monolith Pinout: yes
Size: 16GB
Memory: Samsung
ID: ec de 98 ce
Controller: SM3257_41
Page structure: 1148_31
XOR: 00F002
Description: Y16GD39 MDS1091660
Notice: --
122 Monolith Pinout: yes
Size: 8GB
Memory: unknown
ID: unknown
Controller: unknown
Page structure: -
XOR: --
Description: Class 10
Notice: 6x4
123 Monolith Pinout: yes, need verify
Size: 8GB
Memory: unknown
ID: unknown
Controller: unknown
Page structure: -
XOR: --
Description: Class 2
Notice: similar to MicroSD v25
124 Monolith Pinout: no
Size: 128GB
Memory: unknown
ID: unknown
Controller: unknown
Page structure: -
XOR: --
Description: UDX128U11R85SHTC8T15B DP1110619A05 2717
Notice: --
125 Monolith Pinout: yes
Size: 32GB
Memory: Dynet
ID: ad de 14 ab
Controller: unknown
Page structure: 1104 v2
XOR: 8855F9
Description: C32G class 10
Notice: --
126 Monolith Pinout: yes
Size: 8GB
Memory: Samsung
ID: ec de 94 f3
Controller: SM3259
Page structure: 1118_31
XOR: 17FE70
Description: MRO class 10, BGI38MFB26A10 2D1639DI #12016102008M 08C4M10 160706G RGF25MFB03A02 2D1625DI
Notice: --
127 Monolith Pinout: yes
Size: 128GB
Memory: unknown
ID: unknown
Controller: unknown
Page structure: --
XOR: --
Description: MMB3D08BUACA-GE CL8H12F1712
Notice: --
128 Monolith Pinout: yes
Size: 4GB
Memory: Toshiba
ID: 98 d7 98 92
Controller: PS2251
Page structure: 1138_1132
XOR: 5061 adaptive
Description: Class 4
Notice: 6x4
129 Monolith Pinout: yes
Size: 64GB, 256GB
Memory: Samsung
ID: ec 1c 98 3f 84, ec 1e d9 3f 88
Controller: Samsung
Page structure: 36_2272
XOR: --
Description: MB-MC64G MBMCCGVFDACW-T KND406ZJB742, MB-MC256G MBMCEGVH0AGW-T KNGH27NCA947, MBMCBGVEGAAW-T , Class U3, Samsung Evo Plus
Notice: 2x15, grid, LDPC or other algorithm
130 Monolith Pinout: yes
Size: 8GB
Memory: Micron
ID: 2c 64 44 4b
Controller: SD_20 v2
Page structure: 1108_1102
XOR: FA9E80
Description: E408G1404 MF2KE41122A10, Class 10
Notice: --
131 Monolith Pinout: yes
Size: 8GB, 32GB
Memory: Toshiba
ID: 98 de 94 93 76 50
Controller: unknown
Page structure: 1088
XOR: 8855F9
Description: MMBWB08BCKYT-T0, MMCGS08EH6DK-T0, HL8A1612J, Class 10
Notice: 256GB fake card
132 Monolith Pinout: yes
Size: 64GB
Memory: Toshiba
ID: 98 4c 98 a3
Controller: unknown
Page structure: --
XOR: --
Description: MMBGS08BEHFK8-T0 BKN8C1801T, Class 10
Notice: only 1CE, could be fake card
133 Monolith Pinout: yes
Size: 2GB
Memory: Sandisk
ID: 45 c5 94 32
Controller: SD_20
Page structure: 1074_1070
XOR: 988EE1
Description: E2E6TN02GI0BB 0902081201238
Notice: 6x4
134 Monolith Pinout: yes
Size: 16GB, 32GB
Memory: Sandisk
ID: 45 3a 98 b3 76 72, 45 3c 98 b3 76 72
Controller: PS
Page structure: 1146
XOR: 5061FD
Description: TUSDH32GCL10BK TTM70-180705010-1 Class 10, TUSDH16GCL10BK TM70-180705008-1, MMDY32GAHH-TO
Notice: sector number assmebler
135 Monolith Pinout: yes
Size: 4GB
Memory: unknown
ID: unknown
Controller: unknown
Page structure: --
XOR: --
Description: A0FZGC5DKH09, Class 4
Notice: --
136 Monolith Pinout: yes
Size: 32GB
Memory: Sandisk
ID: 45 3c 98 b3
Controller: PS
Page structure: 1146
XOR: 5061
Description: AP1812DK03E032K, Class 10
Notice: 3x7
137 Monolith Pinout: yes
Size: 32GB, 64GB, 128GB
Memory: Sandisk
ID: 45 3c 98 b3, 45 3e 99 b3, 45 48 9a b3 7e 72
Controller: Sandisk 20-82-00515-5
Page structure: 14_2048_230
XOR: C634
Description: 7475XV1322VH, 7494DVFT20DR, Class 10
Notice: 3x7, sector number assembler
138 Monolith Pinout: yes
Size: 16GB
Memory: Hynix
ID: ad 3a 18 03
Controller: PS
Page structure: 1150_2
XOR: 5061FD
Description: Class 10
Notice: --
139 Monolith Pinout: yes
Size: 16GB, 32GB, 64GB
ID: 45 3a 98 b3 76 72, 45 3c 98 b3 76 72
Controller: PS
Page structure: 1146
XOR: 5061FD
Description: Class U1, PNY
Notice: X-line
140 Monolith Pinout: yes
Size: 32GB
Memory: --
ID: 45 3c 98 b3 76 72
Controller: PS
Page structure: 1146, 1144_2
XOR: 5061FD
Description: SDCS 31626-007.A00LF, 1818B312445 BSTT0ALJ6I1, Class 10, U1
Notice: some connection on second layer
141 Monolith Pinout: yes
Size: 4GB
Memory: Toshiba
ID: 98 d5 98 b2
Controller: SD_20
Page structure: 1074_1070
XOR: 3A0920
Description: C04G, Class 4 1023W06522F
Notice: 6x4
142 Monolith Pinout: yes
Size: 16GB
Memory: Toshiba
ID: 98 3a 98 a3, but at reader shows 98 4c 90 a3
Controller: unknown
Page structure: --
XOR: --
Description: E516G1608 TWLI160200439
Notice: 6x4
143 Monolith Pinout: yes
Size: 32GB, 64GB
Memory: Toshiba
ID: 98 3c 98 b3 76 e3
Controller: PS probably
Page structure: 4568_4632
XOR: unknown
Description: CG32G1846 TVHN003386322, CG64G1846 TVHN003388100, CG32G1850 TVHI181200034
Notice: 6x10, LDPC
144 Monolith Pinout: yes
Size: 1GB
Memory: Samsung
ID: ec 00 00 00
Controller: unknown
Page structure: --
XOR: --
Description: MM8GR01GUCCA-MB
Notice: 2x15, internal problem, can't read full ID
145 Monolith Pinout: yes
Size: 4GB
Memory: Toshiba
ID: 98 d7 98 92 72 d6
Controller: unknown
Page structure: 1146
XOR: 6C9C6C, 936393, not sure, adaptive?
Description: 1152W42454N
Notice: 6x4
146 Monolith Pinout: yes
Size: 16GB
Memory: --
ID: --
Controller: --
Page structure: --
XOR: --
Description: CG16G1707 TVLN003129890
Notice: 6x4
147 Monolith Pinout: yes
Size: 32GB
Memory: Toshiba
ID: 98 de 98 92
Controller: SM2685 bb
Page structure: 1142_27
XOR: 4C912A
Description: --
Notice: --
148 Monolith Pinout: yes
Size: 32GB
Memory: Sandisk
ID: 45 3c 98 b3 76 72
Controller: PS 1146
Page structure: 1146
XOR: 5061FD
Description: Class 4
Notice: 3x7
149 Monolith Pinout: yes
Size: 16GB
Memory: Hynix
ID: ad 5a 14 f3
Controller: PS
Page structure: 1104 (1098)
XOR: 5061FD
Description: GMT03L1A16-TA JFST180417-32
Notice: sector number assembler
150 Monolith Pinout: no
Size: 8GB
Memory: --
ID: --
Controller: --
Page structure: --
XOR: --
Description: H-MF40503D
Notice: --
151 Monolith Pinout: no
Size: 8GB
Memory: --
ID: --
Controller: --
Page structure: --
XOR: --
Description: Y08GE01 MBS2011580
Notice: --
152 Monolith Pinout: no
Size: 4GB
Memory: --
ID: --
Controller: --
Page structure: --
XOR: --
Description: --
Notice: short between VCC and GND
153 Monolith Pinout: yes
Size: 4GB, 16GB
ID: 45 4c 98 a3
Controller: PS?
Page structure: 1146
XOR: 0A86BF
Description: EMMCTBC6RM-BY FKB7AX215 1812
Notice: X-line
154 Monolith Pinout: yes
Size: 64GB
Memory: --
ID: --
Controller:
Page structure: --
XOR: --
Description: SDCX10 31461-006.A00LF E464G1340 TP2KE3A051A01
Notice: 6x4
155 Monolith Pinout: yes
Size: 16GB, 32GB
Memory: Toshiba
ID: 98 3a 98 a3 76
Controller: PS
Page structure: 1138_1134
XOR: 5061FD
Description: CG16G1718 TV4N003180717 A1
Notice: 6x4, sector number assembler, 2 channels
156 Monolith Pinout: yes
Size: 16GB, 32GB
Memory: Samsung
ID: ec 3a 98 bf 94
Controller: --
Page structure: --
XOR: --
Description: Y32GF24 SAS3060281
Notice: --
157 Monolith Pinout: yes
Size: 200GB
Memory: Sandisk
ID: 45 48 ab a2 + 45 3e aa a2
Controller: 20-82-00511-1
Page structure: 14_2048_230
XOR: C634
Description: 6041DREVH0AC, 6426DRGPQ0VT
Notice: 3x7, 2CE, first 128GB, second 64GB
158 Monolith Pinout: yes
Size: 32GB
Memory: Hynix
ID: ad 3a 18 03
Controller: PS
Page structure: 1150_2
XOR: 5061FD
Description: BHBHBGCBHAAY1 0117 1UXQ877SA02
Notice: --
159 Monolith Pinout: yes
Size: 32GB, 64GB
Memory: Hynix
ID: ad 5c 28 2a
Controller: PS
Page structure: 1150_2
XOR: 5061FD
Description: Y32GI20 L3H6051040, G64G121208467B08A03
Notice: --
160 Monolith Pinout: yes
Size: 16GB
Memory: --
ID: --
Controller: --
Page structure: --
XOR: --
Description: TC58-7D2H-HKA1 17021002
Notice: some singals on second layer
161 Monolith Pinout: yes
Size: 16GB
Memory: Toshiba
ID: 98 3a 98 a3
Controller: PS?
Page structure: 1146
XOR: 6CBB6C, 934493, adaptive?
Description: C16G 1532RA7383N
Notice: 6x4
162 Monolith Pinout: yes
Size: 32GB
Memory: --
ID: --
Controller: --
Page structure: --
XOR: --
Description: SDCS 31663-015.A00LF CG32G1844 TVHKE8B020A02, TVHKE8B020A17, CG64G1910
Notice: 6x10, LDPC
163 Monolith Pinout: yes
Size: 256GB
Memory: Sandisk
ID: 45 48 9a b3 7e 72
Controller: Sandisk
Page structure: 4576
XOR: --
Description: Sandisk Extreme PRO
Notice: 3x7, LDPC + encryption
164 Monolith Pinout: yes
Size: 128GB
Memory: Sandisk
ID: 45 48 9a b3 fe 6b
Controller: Sandisk
Page structure: 4576
XOR: --
Description: --
Notice: 3x7, LDPC + encryption
Photo: JeremyB
165 Monolith Pinout: no
Size: 128GB
Memory: --
ID: --
Controller: --
Page structure: --
XOR: --
Description: Lexar 633x
Notice: --
166 Monolith Pinout: yes
Size: 16GB
Memory: Toshiba
ID: 98 de 98 92 72 d7
Controller: PS2251
Page structure: 1138_1132
XOR: adaptive
Description: E416G1220 TPSN002234286, TPSN002230973
Notice: 6x4, similar to MicroSD v48
167 Monolith Pinout: yes, need verify
Size: 8GB
Memory: --
ID: --
Controller: --
Page structure: --
XOR: --
Description: C08G
Notice: 6x4
168 Monolith Pinout: yes
Size: 64GB, 128GB
Memory: Toshiba
ID: 98 3c 98 b3 76 72
Controller: --
Page structure: 4568_4632
XOR: --
Description: SDCR B0700-003.A00LFTS
Notice: 6x4, LDPC
169 Monolith Pinout: yes
Size: 128GB
Memory: Samsung
ID: ec de 88 bf 90 c6
Controller: SM2702
Page structure: 1150_31
XOR: B0F7A0
Description: MB-MC128D MBMCDGVGHDJW-2 DCQBH60GI624, Samsung Evo Plus
Notice: 4x10, 2 channels, sometimes can't read all banks
170 Monolith Pinout: 50%
Size: 64GB
Memory: --
ID: --
Controller: --
Page structure: --
XOR: --
Description: Transcend Premium 300x
Notice: --

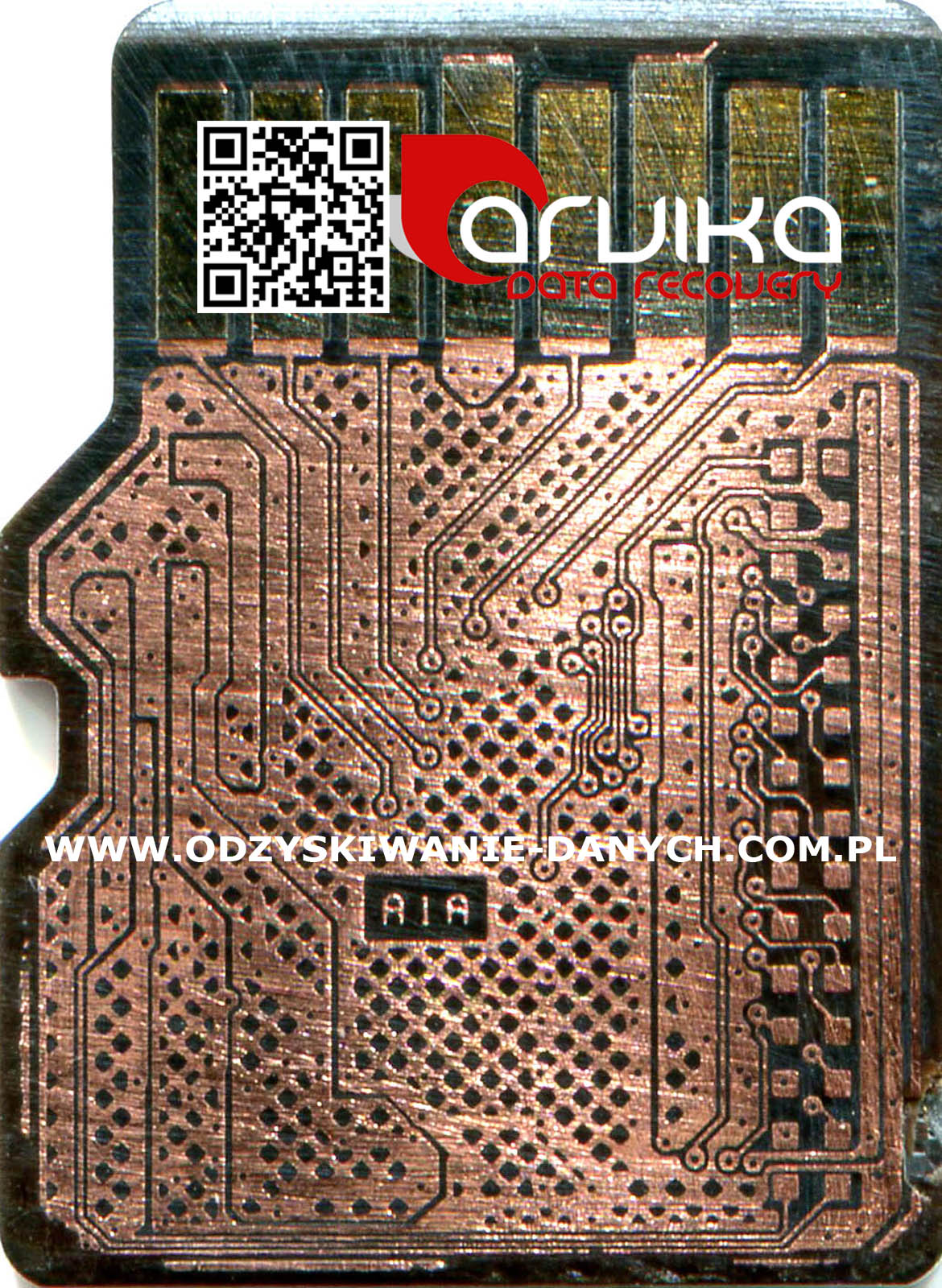

171 Monolith Pinout: yes
Size: 32GB
Memory: --
ID: --
Controller: --
Page structure: --
XOR: --
Description: MB-MC32G MBMCBGVEGAAW-L APKBM138X913
Notice: 2x15, Samsung Evo Plus
172 Monolith Pinout: 80%
Size: 32GB
Memory: Intel
ID: 89 a4 08 32 a1
Controller: --
Page structure: --
XOR: --
Description: OEMDLC32G180226001
Notice: --
173 Monolith Pinout: yes
Size: 16GB
Memory: --
ID: --
Controller: --
Page structure: --
XOR: --
Description: --
Notice: --
174 Monolith Pinout: yes
Size: 2GB
Memory: Toshiba
ID: 98 d5 94 32
Controller: SD_20
Page structure: 1074_1070
XOR: 3A0920
Description: 1022805992DPN
Notice: 6x4, 6x5
175 Monolith Pinout: yes
Size: 128GB, 400GB
ID: 45 49 9b b3 7e 72
Controller: 20-82-00515-5
Page structure: 14_2048_230
XOR: C634
Description: 8014DVGL93ZK, 400G
Notice: 3x7, similar to MicroSD v137
176 Monolith Pinout: yes
Size: 16GB
Memory: Toshiba
ID: 98 de 98 92
Controller: PS2251
Page structure: 1138_1132
XOR: AF9E02
Description: E516G1225 TP2K112060773
Notice: 6x4, similar to MicroSD v61
177 Monolith Pinout: yes
Size: 64GB
Memory: Samsung
ID: ec 3a d9 de
Controller: --
Page structure: --
XOR: --
Description: MB-MGCGB MBMGCGVF0BGW-B SN6TFD91J352
Notice: 2x15, similar to MicroSD v93
178 Monolith Pinout: yes
Size: 16GB
Memory: Toshiba
ID: 98 de a8 92
Controller: PS
Page structure: 1138_1132
XOR: adaptive?
Description: --
Notice: 6x4
179 Monolith Pinout: yes
Size: 16GB
Memory: Hynix
ID: ad 5c 14 63
Controller: PS
Page structure: 1116_12, 1128
XOR: 5061FD
Description: --
Notice: --
Photo: JeremyB
180 Monolith Pinout: yes
Size: 128GB, 256GB
Memory: Micron
ID: 2c c4 18 32 a2
Controller: SM
Page structure: 1150_32_32
XOR: E8018F
Description: N0698-006.A00LF, Gigastone Ultra Plus
Notice: 3x7, up to 4xCE
181 Monolith Pinout: yes
Size: 16GB
Memory: Toshiba
ID: 98 3a 98 a3 76 51
Controller: PS
Page structure: 1146
XOR: 5061FD
Description: Sandisk Ultra
Notice: --
182 Monolith Pinout: yes
Size: 32GB
Memory: Sandisk
ID: 45 3c 99 b3 7a 72
Controller: --
Page structure: 4576
XOR: --
Description: 8463DVKT90SW 58935-032G
Notice: 3x7, LDPC + encryption
183 Monolith Pinout: yes
Size: 32GB
Memory: Samsung
ID: ec 3a 98 bf 94
Controller: PS
Page structure: 1150_2
XOR: 5061FD
Description: --
Notice: --
184 Monolith Pinout: yes
Size: 8GB
Memory: Sandisk
ID: 45 de 98 a2
Controller: 20-82-00515-5
Page structure: 14_2048_230
XOR: C634
Description: 5494DTAXG0FF
Notice: 3x7, similar to MicroSD v94
185 Monolith Pinout: yes
Size: 2GB
Memory: Toshiba
ID: 98 d5 84 32 72
Controller: SD_20 v2
Page structure: 1109_1103
XOR: FA9E80
Description: SD-C02G
Notice: 6x4
186 Monolith Pinout: yes
Size: 64GB
Memory: Sandisk
ID: 45 3c 98 b3 76 72
Controller: SM, DM2702
Page structure: 40_1130
XOR: FF09FD
Description: Adata, PNY Elite
Notice: Similar to MicroSD v134
Photo: JeremyB
187 Monolith Pinout: no
Size: 128GB
Memory: Toshiba
ID: 98 3c 98 b3
Controller: --
Page structure: 2280
XOR: --
Description: Kingston Canvas
Notice: LDPC, 5x8
Photo: Multi-com
188 Monolith Pinout: yes
Size: 64GB
Memory: Toshiba
ID: 98 3e 98 b3 76 e3
Controller: SM
Page structure: 1144_31
XOR: 2384C9
Description: 2036W090401 BSTTRSM26J1
Notice: X-line
Photo: Multi-com
189 Monolith Pinout: yes
Size: 32GB
Memory: Sandisk
ID: 45 3c 98 b3 76 72
Controller: --
Page structure: 1180
XOR: E8056A?
Description: --
Notice: 15 sectors
Photo: JeremyB
190 Monolith Pinout: yes
Size: 32GB
Memory: Sandisk
ID: 45 3c 98 b3 76 72
Controller: ?
Page structure: 1146
XOR: A6ED8D
Description: MMCAX16A8T23-TO
Notice: 3x7, fake card 2TB
191 Monolith Pinout: no
Size: --
Memory: --
ID: --
Controller: --
Page structure: --
XOR: --
Description: --
Notice: --
Photo: JeremyB
192 Monolith Pinout: yes
Size: 64GB
Memory --
ID: --
Controller: --
Page structure: --
XOR: --
Description: G64G121325468802A08
Notice: similar to MicroSD v213
193 Monolith Pinout: yes
Size: 32GB
Memory Toshiba
ID: 98 de 98 92
Controller: PS2251
Page structure: 1138_1132
XOR: 5061FD
Description: Toshiba Exceria
Notice: 6x4
194 Monolith Pinout: yes
Size: 32GB
Memory Sandisk
ID: 45 3c 98 b3 76 72
Controller: PS
Page structure: 1146
XOR: 5061
Description: Patriot
Notice: --
Photo: JeremyB
195 Monolith Pinout: yes
Size: 32GB, 64GB
ID: 45 3c 98 b3 76 72, 45 3e 98 b3 76 6b,
Controller: PS
Page structure: 1146
XOR: A6ED8D, 5061FD
Description: MMCAX16A8T23-TO, ZLXM9192464GC10-96, BSTDRAM1611
Notice: Fake 2TB card, V-line, X-line
196 Monolith Pinout: yes
Size: 32GB, 64GB
ID: 45 3e 98 b3 76 6b
Controller: 20-82-00515-5
Page structure: 14_2048_230
XOR: C634
Description: Sandisk Ultra, 0382ZXDQ11W8
Notice: 3x7
197 Monolith Pinout: yes
Size: 128GB
ID: 98 3c 98 b3 76 71
Controller: PS?
Page structure: 4564_4644
XOR: 5061FD? adaptive?
Description: --
Notice: 6x4, LDPC
198 Monolith Pinout: yes
Size: 32GB
ID: ad 5c 28 ba 00 80
Controller: PS
Page structure: 1150_2
XOR: 5061FD
Description: BSTH0AM46I1
Notice: H-line
199 Monolith Pinout: yes
Size: 32GB
ID: 45 3c 98 b3 76 72
Controller: PS
Page structure: 1146
XOR: 5061FD
Description: --
Notice: 3x7
200 Monolith Pinout: yes
Size: 2GB
ID: 98 d5 94 32 76 54
Controller: SD_20
Page structure: 1074_1070
XOR: 988EE1
Description: Kingston SD-C02G
Notice: 6x4
201 Monolith Pinout: yes
Size: 16GB
ID: 98 d7 94 32
Controller: SD_20
Page structure: 1109_1103
XOR: FA9E80
Description: Kingston SDC10 N0386-002.A00LF
Notice: 6x4, 2 channels
202 Monolith Pinout: yes
Size: 256GB
ID: 2c 2c d3 1c 32 c6, 2c d3 1c 32 c6
Controller: --
Page structure: 2324
XOR: --
Description: PNY PRO Elite
Notice: 5x8, LDPC
Photo: Visok
203 Monolith Pinout: yes
Size: 512GB
ID: --
Controller: --
Page structure: --
XOR: --
Description: Kingston Canvas GO! Plus SDCG3 B0839-001.A00LFTS
Notice: 5x8, LDPC?
Photo: Internet
204 Monolith Pinout: no
Size: 32GB
ID: --
Controller: --
Page structure: --
XOR: --
Description:
Notice: 4x10, very probable LDPC
205 Monolith Pinout: yes
Size: 64GB
ID: --
Controller: --
Page structure: --
XOR: --
Description: Goodram
Notice: V-line, X-line
206 Monolith Pinout: yes
Size: 256GB
ID: 2c 2c d3 1c
Controller: SM
Page structure: 1150_32_32
XOR: E8018F
Description: --
Notice: X-line, Vias
Photo: JeremyB
207 Monolith Pinout: yes
Size: 64GB
ID: ec 1e 98 af 84 cd
Controller: --
Page structure: 1148_32_32
XOR: --
Description: MBMCCGVFGBAW-5
Notice: 2x15, similar to MicroSD v208
208 Monolith Pinout: yes
Size: 64GB, 128GB
ID: ec 1e 98 bf
Controller: --
Page structure: 1148_32_32
XOR: --
Description: MBMCDGVGDACW-5, MB-MC128H
Notice: 2x15, similar to MicroSD v207
209 Monolith Pinout: yes
Size: 32GB
ID: 98 3e 98 b3 76 e3
Controller: --
Page structure: 4568_4632
XOR: ACB23E
Description: Goodram, 2109Q06719U
Notice: 6x10, LDPC
210 Monolith Pinout: yes
Size: 64GB
ID: 32 2c c3 08 (real: 2c c3 08 32)
Controller: SM
Page structure: 32_1150
XOR: 17FE
Description: Goodram, Y64GL28 53X07070409
Notice: V-line, X-line
211 Monolith Pinout: no
Size: 64GB
ID: --
Controller: --
Page structure: --
XOR: --
Description: Goodram IRDM, Y64GL26 A2K77061582
Notice: V-line, X-line
212 Monolith Pinout: yes, need verify
Size: 16GB
ID: --
Controller: --
Page structure: --
XOR: --
Description: Platinet, MMBAM016G8T2C-T0
Notice: H-line, V-line
213 Monolith Pinout: yes
Size: 64GB
ID: 89 c4 08 32 a6
Controller: SM
Page structure: 1150_32_32
XOR: E8018F
Description: --
Notice: H-line, X-line, similar to MicroSD v192
Photo: Julio
214 Monolith Pinout: yes
Size: 128GB
ID: 98 3c 98 b3 76 72
Controller: Sandisk?
Page structure: 4584
XOR: --
Description: --
Notice: 6x10, LDPC + encryption?
215 Monolith Pinout: yes
Size: 64GB
ID: ad 5e 28 33 00 aa
Controller: Phison
Page structure: 1150_2
XOR: 5061FD
Description: Klevv Neo
Notice: H-line, vias
216 Monolith Pinout: yes
Size: 32GB, 64GB
ID: 45 3c 98 b3 76 72, 98 3c 98 b3 76 72
Controller: --
Page structure: 4568_4632
XOR: --
Description: Kioxia Exceria, Kingston 1917CP1077A
Notice: 6x4, 7x4
217 Monolith Pinout: yes
Size: 64GB
ID: 45 3e 98 03 76 6c
Controller: DM
Page structure: 1144_1152
XOR: 1775CE
Description: --
Notice: Cut layer, V-line
218 Monolith Pinout: yes
Size: 16GB
ID: ec de 98 de 94 c5
Controller: unknown
Page structure: 40_1140
XOR: 50003C
Description: GFAM1A141750
Notice: V-line, X-line
219 Monolith Pinout: yes
Size: 16GB, 32GB
ID: ad 3a 18 03 00 50
Controller: PS, SM2702
Page structure: 1150_2, 1150_31
XOR: 5061FD, 2384C9
Description: Kingston, B0644-004.A00LFTS
Notice: H-line, X-line
Photo: Jeremy
220 Monolith Pinout: yes
Size: 128GB
ID: ad 7e 28 53 02 b0
Controller: DM
Page structure: 1150_1158
XOR: 1775CE
Description: --
Notice: V-line, X-line
221 Monolith Pinout: yes
Size: 32GB
ID: ec 5c 98 af 84 cd
Controller: SM
Page structure: 1148_32_32
XOR: E8018F
Description: Kingston Canvas Select Plus, 31696-003.A00LF, SDCS2, ATMSOSNE6I0 2320B962497
Notice: H-line, V-line, X-line, similar to MicroSD v235
222 Monolith Pinout: yes
Size: 8GB
ID: ad de 14 ab 42 4a
Controller: unknown
Page structure: 1088
XOR: 8855F9
Description: --
Notice: H-line, X-line
223 Monolith Pinout: yes
Size: 16GB
ID: 2c 84 44 34
Controller: PS
Page structure: 1146
XOR: 5061FD
Description: --
Notice: V-line, X-line
Photo: Jeremy
224 Monolith Pinout: yes
Size: 128GB
ID: ad 7e 28 53 02 b0
Controller: JmSD
Page structure: 1146
XOR: 0A86B5
Description: Kingston MMC64GU38A1B-T0, Sandisk Ultra - fake
Notice: 3x7
225 Monolith Pinout: yes
Size: 64GB
ID: ad 7e 28 53 02 b0
Controller: IS
Page structure: 4606
XOR: 624BBB
Description: Integral V30 U3 A1
Notice: V-line, LDPC or complicated BCH, similar to MicroSD v231
226 Monolith Pinout: yes
Size: 64GB
ID: 45 3e 98 03 76 6c
Controller: unknown
Page structure: 1144
XOR: 127254 - need verify
Description: --
Notice: 6x4
Photo: Jeremy
227 Monolith Pinout: yes
Size: 128GB
ID: 98 3c 99 a3 7a 51
Controller: PS
Page structure: 4564_4644
XOR: 5061FD
Description: Lexar 633x, CGX281705, TVUKE72004A09 21025-C10-128GBPHT
Notice: 6x4, LDPC
228 Monolith Pinout: yes
Size: 128GB
ID: ad 89 28 53 00 b0
Controller: SM
Page structure: 1148_32_32
XOR: E8018F
Description: --
Notice: 3x7
229 Monolith Pinout: yes
Size: 512GB
ID: ec 1e 98 af 84 cd
Controller: SM
Page structure: 1148_32_32
XOR: 718231?
Description: Samsung EVO Plus MB-MC512K MBMCFGVJOBJW-5
Notice: 2x15, problem with ECC for DA
230 Monolith Pinout: yes
Size: 8GB
ID: ad de 14 a7 42 4a
Controller: CBM
Page structure: 1127 - not sure
XOR: EEBB0C
Description: Intenso
Notice: --
231 Monolith Pinout: yes
Size: 128GB
ID: ad 7e 28 0b 00 c0
Controller: DM
Page structure: 1150_1158
XOR: 1775CE
Description: Turbox
Notice: V-line, similar to MicroSD v225

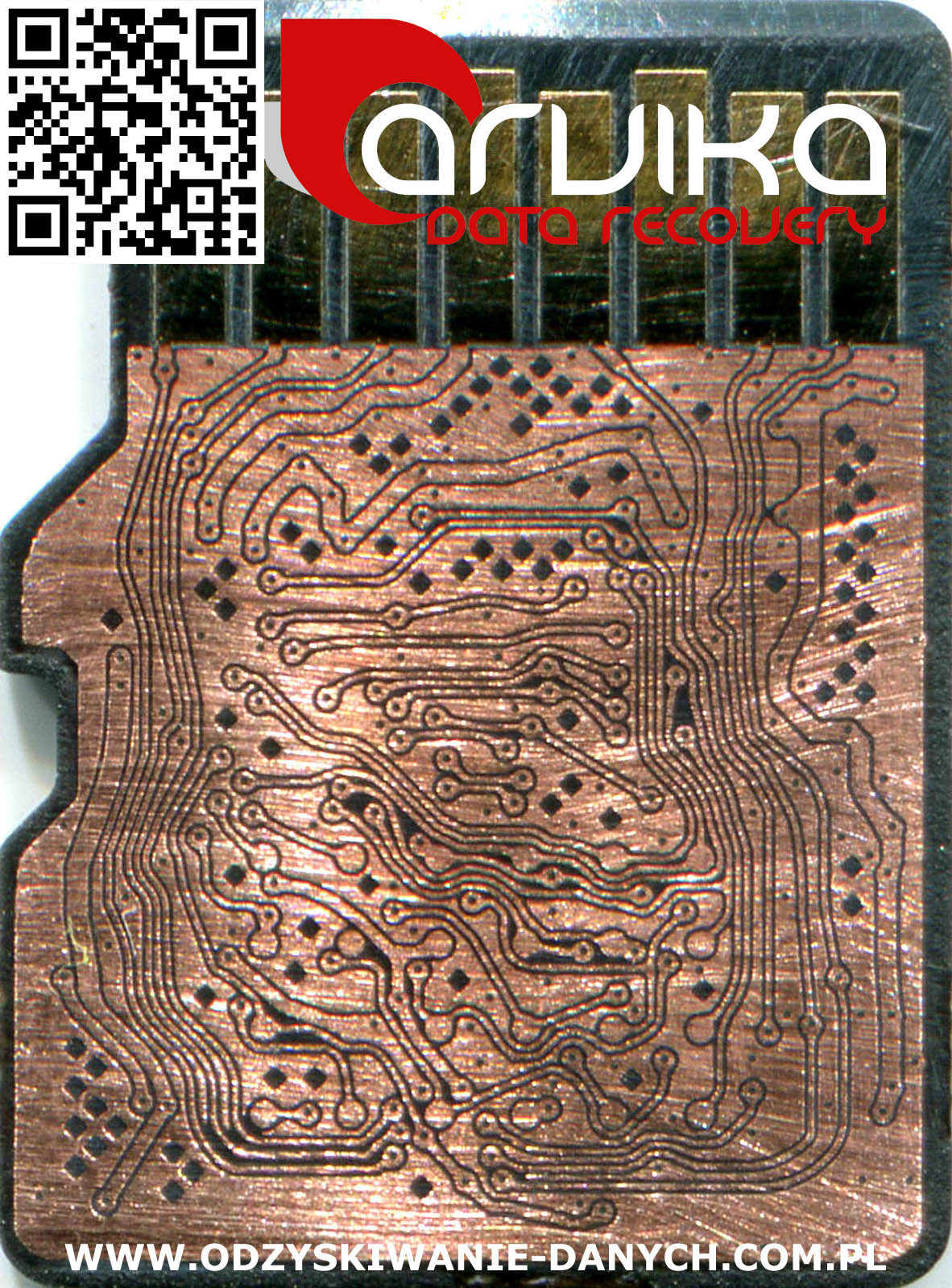

232 Monolith Pinout: yes
Size: 8GB
ID: 98 de 88 a3 72 51
Controller: PS
Page structure: 1148_1142
XOR: 5061 adaptive
Description: Verbatim, E308G1541 TPLI151000980
Notice: 6x4
233 Monolith Pinout: yes, need verify
Size: 64GB
ID: 2c c3 08 32 ea 30
Controller: --
Page structure: --
XOR: --
Description: --
Notice: V-line, X-line
234 Monolith Pinout: yes
Size: 32GB
ID: 45 3c 98 b3 f6 6b
Controller: DM
Page structure: 1144_1152
XOR: 1775CE
Description: --
Notice: V-line
Photo: JeremyB
235 Monolith Pinout: yes
Size: 64GB
ID: 2c c3 08 32 ea
Controller: IS
Page structure: 4k - need verify
XOR: 624BBB
Description: HIDISC
Notice: V-line, H-line, X-line, similar to MicroSD v221
236 Monolith Pinout: yes
Size: 32GB
ID: 45 3c 98 b3 76 72
Controller: PS
Page structure: 1146
XOR: 5061FD
Description: --
Notice: 3x7
237 Monolith Pinout: yes
Size: 8GB
ID: 98 de 98 92 72 d6
Controller: PS
Page structure: 1138_1132
XOR: adaptive
Description: E308G12222, TPSI120501592, Kingston 31311-006.A00LF
Notice: 6x4
238 Monolith Pinout: yes
Size: 32GB
ID: ec 1c 98 3f 84 cb
Controller: DM
Page structure: 1150_1158
XOR: CF7ED4
Description: MediaRange MR959
Notice: H-line, pads
239 Monolith Pinout: yes
Size: 64GB
ID: ec 3a c9 bf 94 c6
Controller: unknown
Page structure: 36_2272
XOR: adaptive + grid
Description: Samsung EVO+ MBMCCGVF0DGW-F MB-MC64D
Notice: 2x15, similar to MicroSD v92, v93, v177
240 Monolith Pinout: yes
Size: 64GB
ID: 45 3e 98 03 76 6c
Controller: SM
Page structure: 1138_32_32
XOR: E8018F
Description: fake Sandisk Utra
Notice: H-line, X-line, DuoECC?
241 Monolith Pinout: yes
Size: 64GB
ID: ad 7e 28 53 02 b0
Controller: IS
Page structure: 4606
XOR: 624BBB
Description: Verbatim Premium 32GB, TE58-8D3H-HMT1, CC05DA16
Notice: H-line, V-line
242 Monolith Pinout: yes
Size: 32GB
ID: 9b c3 48 25 10
Controller: DM
Page structure: 1150_1158
XOR: CF7ED4
Description: --
Notice: V-line, H-line
Photo: JeremyB
243 Monolith Pinout: yes
Size: 32GB
ID: 45 3e 98 03 76 6c
Controller: JmSD
Page structure: 1140
XOR: 0A86B5
Description: Intenso
Notice: 3x7
244 Monolith Pinout: yes
Size: 128GB
ID: 32 2c c3 08 32 ea 30
Controller: --
Page structure: --
XOR: --
Description: Amazon Basics
Notice: V-line, X-line, 6th byte addressing
245 Monolith Pinout: yes
Size: 64GB
ID: ad 7e 28 0b 00 c2
Controller: DM
Page structure: 1150_1158
XOR: 1775CE
Description: Goodram
Notice: 3x7




SD MONOLITHS

NR Monolith photo Info
1 Monolith Pinout: no
Size: 8GB
Memory: unknown
ID: unknown
Controller: unkonow
Description: ---
Notice: need working device for make pinout
2 Monolith Pinout: yes
Size: 4GB, 8GB
Memory: 4GB - TC58NVG5D2FTAIO, 8GB - FZBWTC58NVG6T2HTA00
ID: 4GB - 98 d7 94 32, 8GB - 98 de 98 92
Controller: 4GB - SD_20 v2, 8GB - PS2251
Description: 4GB - S504G1119 TEQI110500471, 8GB - S508G1122 TEQI110501395
3 Monolith Pinout: yes
Size: 16GB, 32GB
Memory: Hynix
ID: ad de 94 d2, ad d7 94 da
Controller: SM2702, SM3257
Page structure: 1075_31, 1100_31
XOR: 4C912A
Description: SD32G10133MMC4HB 1VJS225PVA 1312, PNY Pro Elite
Notice: 2 channels
4 Monolith Pinout: yes
Size: 8GB
Memory: TC58NVG6T2HTA00
ID: TC58NVG6T2HTA00
Controller: SD_20 v2
Description: SD-K08G 1044WX0658K
Notice: 3x13
5 Monolith Pinout: yes
Size: 4GB
Memory: unknown
ID: unknown
Controller: unknown
Description: MMAGF04GWDCA-DB
Notice: 1x40
6 Monolith Pinout: yes
Size: 2GB
Memory: unknown
ID: unknown
Controller: unknown
Description: SD-M02G 1051WX2768F
Notice: 3x13
7 Monolith Pinout: yes
Size: 2GB
Memory: TC58NVG4T2ETA00
ID: 98 d5 98 b2
Controller: SD_20
Description: SD-M02G 0952WF7052F
Notice: 3x13
8 Monolith Pinout: yes
Size: 8GB, 16GB, 32GB
Memory: SDTNPMBHEM-016G
ID: 45 4c 95 83, 45 3c 96 83
Controller: Sandisk 20-82-00192-3
Page structure: 14_2048_146
XOR: C634
Description: 2341CLG06952 016G, 2387CYR06952 016GD, 1522DNU08706 032G
Notice: 14-13
9 Monolith Pinout: yes
Size: 16GB
Memory: ???-016G
ID: 45 4c 95 82
Controller: Sandisk
Description: 2267DC206547 016G
Notice: 14-13
10 Monolith Pinout: yes
Size: 4GB
Memory: K9ABG08U0B
ID: ec d7 98 ce
Controller: SM3257
Description: SD-51 70653028
11 Monolith Pinout: yes, need verify
Size: 16GB, 32GB
Memory: ???
ID: unknown
Controller: unknown
Description: SU016GCC3H2
Notice: 3x13
12 Monolith Pinout: yes
Size: 16GB
Memory: SDTNNMCHSM-016G
ID: 45 4a 96 32
Controller: unknown
Description: D0950 04329-016G M0950MFBBC.01
Notice: 14-13
13 Monolith Pinout: yes
Size: 4GB, 64GB
Memory: Sandisk
ID: 45 d7 98 92
Controller: 20-82-00511-1
Page structure: 14_2048_230
XOR: C634
Description: 004G, 2146DVY08211 064G
Notice: 14-13
14 Monolith Pinout: yes, need verify
Size: 8GB
Memory: unknown
ID: unknown
Controller: Sandisk
Description: D0841 03255-8192 CP0161689AR M0841M8DE3.02 10 41
Notice: 14-13
15 Monolith Pinout: yes
Size: 8GB
Memory: TH58NVG6D2ELA48
ID: 98 d7 94 32, two banks
Controller: SD_20
Description: SD-K08G 0943WW2260B, 0917WW0584B
Notice: 3x13
16 Monolith Pinout: yes
Size: 1GB
Memory: K9G8G08UOM8
ID: ec d3 14 25
Controller: PS8000
Description: S466SN01GI0BB 0738070901548
17 Monolith Pinout: yes
Size: 16GB
Memory: ???
ID: 98 ce a8 82
Controller: unknown
Description: SD-K16G 1050WG8608K, 1038WG5082K
Notice: 3x13
18 Monolith Pinout: no
Size: 16GB
Memory: unknown
ID: unknown
Controller: unknown
Description: 016GA04 M8S0010128 TW
19 Monolith Pinout: no
Size: 2GB
Memory: unknown
ID: unknown
Controller: unknown
Description: ---
20 Monolith Pinout: no
Size: unknown
Memory: unknown
ID: unknown
Controller: unknown
Description: ---
Notice: need working card for make pinout
Photo: Alkemist
21 Monolith Pinout: yes
Size: 8GB, 32GB
Memory: Hynix
ID: ad de 94 da
Controller: SM3257
XOR: 4C912A
Page structure: 1100_31
Description: ---
Photo: Alkemist
22 Monolith Pinout: yes
Size: 4GB
Memory: K9GBG08U0A
ID: ec d7 94 76
Controller: unknown
XOR: GRID, adaptive
Page structure: 1084_30
Description: MMBGF04GWACA-GE
Notice: 1x40, ECC after XOR
23 Monolith Pinout: no
Size: 32GB
Memory: unknown
ID: unknown
Controller: unknown
Description: 9173BA 32G09QS2
Notice: need working card for make pinout
24 Monolith Pinout: no
Size: 1GB, 4GB
Memory: unknown
ID: unknown
Controller: unknown
Description: MM8GF01GWMCU-PA
25 Monolith Pinout: yes
Size: 8GB
Memory: Toshiba
ID: 45 de a4 82
Controller: unknown
Description: RTK228T5MD08C
26 Monolith Pinout: yes
Size: 8GB, 32GB
Memory: Samsung
ID: ec de 98 ce
Controller: unknown
Description: SF-8C4
Notice: XOR: 4C912A
Page structure: 1148_27
Photo: HaQue
27 Monolith Pinout: yes
Size: 4GB
Memory: K9GBG08U0A
ID: ec d7 94 7a
Controller: EN2683
Page structure: 1094_27
XOR: FF09FD
Description: MMBGF04GWACA-MG
Notice: 1x40
28 Monolith Pinout: yes, need verify
Size: 4GB
Memory: unknown
ID: unknown
Controller: unknown
Description: MMAGF04GWDCA-DB
Notice: 1x40
29 Monolith Pinout: yes
Size: 4GB
Memory: K9BCG08U1M
ID: ec d7 98 c6
Controller: unknown
Page structure: 1069_30
XOR: probably BN XOR + GRID
Description: MMB3F04GWMCA-GE
Notice: 1x40
30 Monolith Pinout: yes
Size: 2GB
Memory: K9GAG08U0M
ID: ec d5 14 b6
Controller: SK6281
Description: MMAGF02GWMCA-NA
Notice: 1x40
31 Monolith Pinout: yes
Size: 4GB
Memory: FZBWTC58TVG5T2HTA00
ID: 98 d7 98 92
Controller: probably Phison
Page structure: 1136_1132
XOR: dynamic
Description: SD-K04G
Notice: 3x13
32 Monolith Pinout: yes
Size: 2GB
Memory: Samsung
ID: ec d5 94 76
Controller: EN2683 / SM2707
XOR: FF09FD (DA) + GRID (all page)
Description: MMAGF02GWFCA-MN
Notice: 1x40, remove grid, make ECC, than XOR
33 Monolith Pinout: yes
Size: 8GB
Memory: K9ACGD8U0M
ID: ec de 98 ce
Controller: SM3257
Page structure: 1148_31
Description: MMCTF08GWACA-MM
Notice: 1x40
34 Monolith Pinout: yes
Size: 16GB
Memory: Samsung
ID: ec de 98 ce
Controller: SK?
Page structure: 44_1144
XOR: adaptive?
Description: MMCTF16GWACA-AC, SF-16C4, MMCTF16GWACJ-AC
Notice: 1x40
35 Monolith Pinout: yes
Size: 16GB, 64GB
Memory: unknown
ID: unknown
Controller: unknown
Description: SF-16UY, 064GD29 MDS0062488
Notice: 3x13
36 Monolith Pinout: yes
Size: 8GB
Memory: TC58NVG6D2GTA00
ID: 98 de 94 82
Controller: SD_20 v2
Page structure: 1109_1103
XOR: FA9E80
Description: SD-K08G
Notice: 3x13
37 Monolith Pinout: yes
Size: 8GB
Memory: unknown
ID: unknown
Controller: unknown
Description: S708G1305, SF-8UY
Notice: --
38 Monolith Pinout: yes
Size: 2GB, 8GB
Memory: SDTNMMAHSM-002G
ID: 45 c5 94 32
Controller: Sandisk
Description: Sandisk C0908 03440-002G, D0830 03441-008G DP0032241SS M0838M6BA6.08 10-41
Notice: 14-13, probably 16bit pinout, can't read chip properly.
39 Monolith Pinout: yes
Size: 32GB
Memory: Sandisk
ID: 45 3a 97 32
Controller: Sandisk
Description: Sandisk 032G
Notice: 14-13, problem with config
40 Monolith Pinout: no
Size: 8GB
Memory: unknown
ID: unknown
Controller: unknown
Description: ---
41 Monolith Pinout: partial, only for 8bit
Size: 8GB
Memory: TH16G3GAFA
ID: 98 ce a8 82
Controller: unknown
Description: SD-K08G
Notice: 3x13, only 8bit pinout, flash is 16-bit
42 Monolith Pinout: no
Size: 128MB
Memory: unknown
ID: unknown
Controller: unknown
Description: ---
43 Monolith Pinout: yes
Size: 16GB, 32GB, 64GB
Memory: SDTNPNCHEM-032G
ID: 45 4c 99 92, 45 3c 9a 92
Controller: Sandisk
Page structure: 4584
Description: 3267D0Y09524 032G
Notice: 14-13, crypted
44 Monolith Pinout: yes
Size: 16GB
Memory: Toshiba
ID: 98 de 84 93
Controller: PS2251-V v2 1108_1102, SD_20 v2 1108_1102
Description: S616G1221 TFSK112050701
45 Monolith Pinout: no
Size: 32GB
Memory: unknown
ID: unknown
Controller: unknown
Description: SD32G10233XMC2TK
46 Monolith Pinout: yes
Size: 8GB
Memory: K9ABG08U0B
ID: ec d7 98 ce
Controller: SKxxxx 24_1148_1153
Description: 8DK52-122ME
Notice: 1x40
47 Monolith Pinout: yes
Size: 16GB
Memory: Sandisk
ID: 45 de 94 82
Controller: EN2683 1094
Description: ---
48 Monolith Pinout: yes
Size: 32GB
Memory: Samsung
ID: ec d7 98 ce
Controller: unknown
Description: MBSSBGVEOBGA-SH MB-SSBGA DOK303000203
49 Monolith Pinout: yes
Size: 8GB, 16GB, 32GB
Memory: Sandisk
ID: 45 de 94 93, 45 4c 95 93, 45 3c 96 93, 45 3c 86 93, 45 3c aa 92
Controller: 20-82-00270-1, 20-82-00511-1
Page structure: 14_2048_146, 14_2048_230
Description: 3452DMF13340 016G, 4272D2X23057 016G, 4192D9V13344 032G, 5143CNS23272 032G
Notice: 14-13
50 Monolith Pinout: yes
Size: 1GB, 2GB
Memory: unknown
ID: unknown
Controller: unknown
Description: Sandisk CU0638 01634-1024 CP0018012, C0734 02086-2048 CP0073420
Notice: 14-13

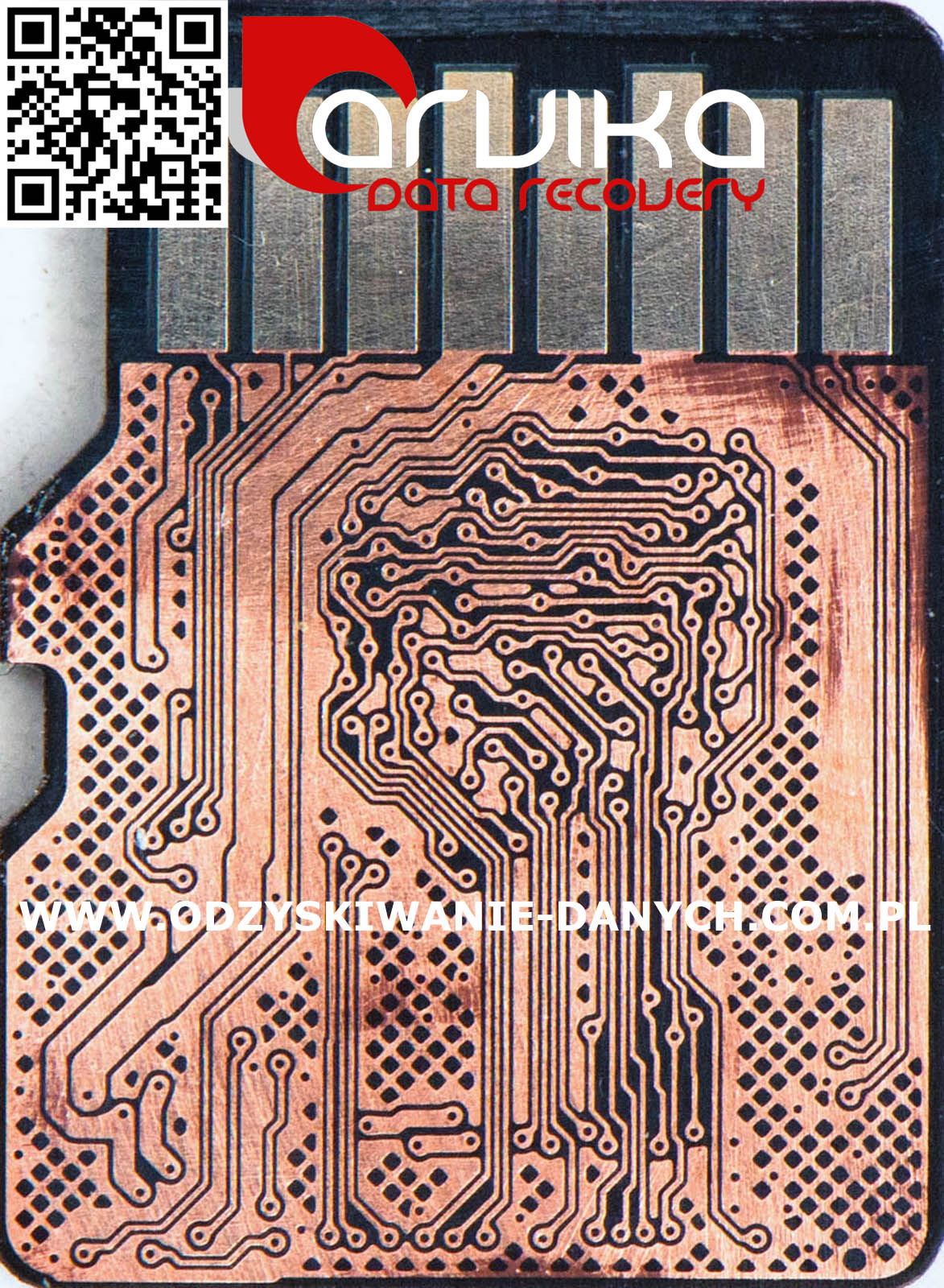

51 Monolith Pinout: no
Size: 32GB
Memory: unknown
ID: unknown
Controller: unknown
Description: 290580
Donor: yes

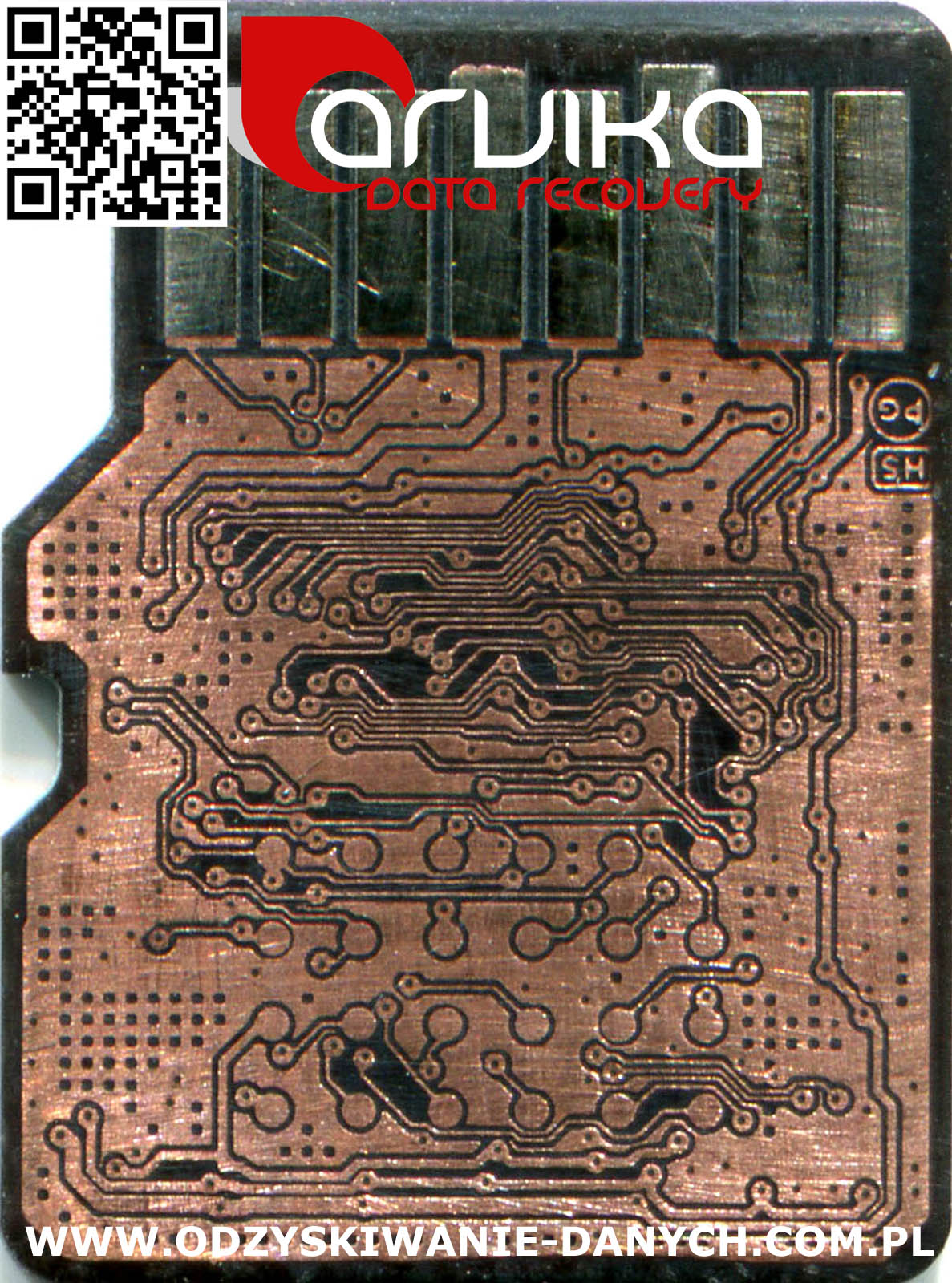

52 Monolith Pinout: yes
Size: 8GB, 32GB, 64GB
Memory: Toshiba
ID: 98 de 94 93, 98 3a 85 93
Controller: PS8210
Page geometry: 1106_1102
XOR: FA9E80
Description: Sony SF-8UX, SF-32UX2, SF-64UX, S764G1416 TF4I140400018
Notice: --
53 Monolith Pinout: yes
Size: 32GB
Memory: unknown
ID: unknown
Controller: unknown
Description: ---
Notice: similar to SD v25, internal damages - quite often in this card
54 Monolith Pinout: yes
Size: 32GB, 64GB, 128GB, 256GB
Memory: Sandisk
ID: 45 3c a5 93, 45 3c 96 83, 45 3e a6 93, 45 48 a7 93
Controller: Sandisk 20-82-00270-1
Page structure: 14_2048_146
XOR: C634C7
Description: 5265DEV23394, 256G
Notice: 14-13, 2CE
55 Monolith Pinout: yes
Size: 2GB
Memory: FOT16AL16M0
ID: 98 d5 94 32
Controller: SD_20
Page structure: 1074_1070
XOR: 3A0920
Description: SD-M02G 1036WW9653F
Notice: 3x13
56 Monolith Pinout: yes
Size: 16GB
Memory: Micron 29F64G08CBAAA
ID: 2c 88 04 4b
Controller: SM2702
Page structure: 1075_31
XOR: B36ED5
Description: 6502641A 31384-C10-16GBM
Notice: 2 channels
57 Monolith Pinout: no
Size: 8GB
Memory: unknown
ID: unknown
Controller: unknown
Description: --
Notice: card is security key, communication is blocked
58 Monolith Pinout: no
Size: 16GB
Memory: unknown
ID: unknown
Controller: unknown
Description: --
Notice: --
59 Monolith Pinout: yes
Size: 32GB
Memory: Toshiba
ID: 98 3a a8 92
Controller: Phison
Page structure: 1138_1132
XOR: dynamic
Description: --
Notice: 3x13, problem with find CE1
60 Monolith Pinout: yes
Size: 16GB, 32GB
Memory: Hynix
ID: ad de 94 d2
Controller: SM2702
Page structure: 1075_31
XOR: B36ED5
Description: SD32G10133MMC4HB 1VJBM90PVA 2812
61 Monolith Pinout: yes
Size: 32GB, 64GB, 128GB
Memory: Toshiba
ID: 98 3c a5 93, 98 3a a4 93
Controller: PS8210
Page structure: 1106_1102
XOR: FA9E80
Description: --
62 Monolith Pinout: yes
Size: 32GB
Memory: Samsung
ID: ec 3a e5 7a
Controller: SM3257
Page structure: 1100_31
XOR: F60034
Description: LWFS130542-0 1327
Notice: 1x40
63 Monolith Pinout: yes
Size: 32GB
Memory: Spectec 29F64G08CBABA
ID: ec 3a e5 7a
Controller: SM3257
Page structure: 1112_31
XOR: F60234
Description: --
64 Monolith Pinout: yes, need verify
Size: 16GB
Memory: unknown
ID: unknown
Controller: unknown
Description: --
65 Monolith Pinout: yes, need verify
Size: 4GB
Memory: unknown
ID: unknown
Controller: unknown
Description: 1263DHR06538 004G
Notice: 14-13
66 Monolith Pinout: yes
Size: 64GB
Memory: Toshiba
ID: 98 * * 82, 45 3e 97 93
Controller: Sandisk
XOR: C634
Page structure: 14_2048_146
Description: 064G
Notice: 14-13
67 Monolith Pinout: no
Size: 128GB
Memory: unknown
ID: unknown
Controller: unknown
Description: --
Notice: Traces destroyed by previous lab
68 Monolith Pinout: yes
Size: 64GB
Memory: Micron
ID: 2c 84 64 3c
Controller: SM3257
XOR: 4C912A
Page structure: 1094_31
69 Monolith Pinout: yes
Size: 32GB
Memory: Toshiba
ID: 98 3a 98 a3
Controller: SD_20 (Phison)
XOR: adaptive PS
Page structure: 1148_1142
Notice: 3x13
70 Monolith Pinout: yes
Size: 128GB
Memory: Toshiba
ID: 98 3c 95 93
Controller: PS8210-0
XOR: FA9E80
Page structure: 1106_1102
Notice: 3x13, 2 channels
71 Monolith Pinout: no
Size: 16GB
Memory: unknown
ID: unknown
Controller: unknown
Description: --
Notice: --
72 Monolith Pinout: yes
Size: 8GB
Memory: Micron
ID: 2c 88 04 4b
Controller: SM3257
XOR: no XOR
Pages structure: 1066_26
Description: --
Notice: --
73 Monolith Pinout: no
Size: 2GB,32GB
Memory: Toshiba
ID: 98 3a 98 a3
Controller: SD_20 (Phison)
XOR: 5061 (adaptive)
Page structure: 1148_1142
Description: --
Notice: 3x13
74 Monolith Pinout: yes
Size: 32GB
Memory: Toshiba
ID: 98 3a 98 a3
Controller: SD_20 (Phison)
XOR: adaptive PS
Page structure: 1148_1142
Description: --
Notice: --
75 Monolith Pinout: yes
Size: 8GB
Memory: Toshiba
ID: 98 d7 94 32
Controller: SD_20 (Phison)
XOR: 988EE1
Page structure: 1074_1070
Description: --
Notice: 3x13
76 Monolith Pinout: yes
Size: 8GB
Memory: Toshiba
ID: 98 de 94 93
Controller: Phison
XOR: FA9E80
Page structure: 1102_1096
Description: --
Notice: --
77 Monolith Pinout: no
Size: 256GB
Memory: unknown
ID: unknown
Controller: unknown
XOR: --
Page structure: --
Description: SDX256U13R95SFMCAH16BB 18M6575SA02, class U3
Notice: --
78 Monolith Pinout: yes
Size: 128GB
Memory: Micron
ID: 2c 84 64 3c
Controller: SM3257
XOR: 4C912A
Page structure: 1094_31
Description: 9173BA 128G 09OM1 MBA13" JDL130
Notice: 2 channels
79 Monolith Pinout: yes
Size: 32GB, 64GB
Memory: Samsung
ID: ec de a4 7a
Controller: SM3257
XOR: F60034
Page structure: 1100_31
Description: Sony SF-64UF2, SF-32UX2, SF-64UX
Notice: two channels
81 Monolith Pinout: no
Size: 16GB
Memory: unknown
ID: unknown
Controller: unknown
XOR: --
Page structure: --
Description: Sony SF-16UY3
Notice: --
82 Monolith Pinout: yes, need verify
Size: 64GB
Memory: unknown
ID: unknown
Controller: unknown
XOR: --
Page structure: --
Description: PEF64GSXC10333-PC S764G1538 TI4KE59046A01, class U1
Notice: 3x13
83 Monolith Pinout: yes, need verify
Size: 64GB
Memory: unknown
ID: unknown
Controller: unknown
XOR: --
Page structure: --
Description: --
Notice: 1x40
84 Monolith Pinout: yes, need verify
Size: 4GB
Memory: Sandisk
ID: 45 c7 95 32
Controller: unknown
XOR: --
Page structure: --
Description: --
Notice: 14-13, 16bit nand
85 Monolith Pinout: yes
Size: 32GB, 64GB, 128GB, 256GB
Memory: Sandisk
ID: 45 3c 95 93, 98 00 a0 82, 45 48 97 93 7e 51, 45 3e 96 93 7e 51
Controller: 20-82-00515-5, IS903 (external)
XOR: C634, 3C4691
Page structure: 14_2048_146, 1100_30
Description: 032G, 064G, 256G
Notice: 15-14, 2CE, 64GB card do not give good ID
86 Monolith Pinout: yes
Size: 128GB
Memory: Sandisk
ID: 45 48 9a b3
Controller: 20-82-00515-5
XOR: C634
Page structure: 14_2048_230
Description: 128G
Notice: 15-14
87 Monolith Pinout: no
Size: 64GB
Memory: unknown
ID: unknown
Controller: unknown
XOR: --
Page structure: --
Description: Sony SF-64UX
Notice: --
88 Monolith Pinout: yes
Size: 4GB
Memory: Micron
ID: 2c 48 04 4a
Controller: SM3254
XOR: no XOR
Page structure: 1066
Description: Sony SF-64UX
Notice: --
89 Monolith Pinout: yes
Size: 8GB
Memory: Samsung
ID: ec de 88 bf
Controller: PS2251
XOR: 5061FD
Page structure: 1150_2
Description: --
Notice: --
90 Monolith Pinout: no
Size: 256GB
Memory: unknown
ID: unknown
Controller: unknown
XOR: --
Page structure: --
Description: --
Notice: --
91 Monolith Pinout: yes
Size: 64GB
Memory: unknown
ID: 2c a4 64 32
Controller: SM2702
XOR: B36ED5
Page structure: 1150_31
Description: 819591141A03 31636-C10-64GBBM B 2217B
Notice: --
92 Monolith Pinout: yes
Size: 8GB
Memory: unknown
ID: unknown
Controller: Sandisk
XOR: --
Page structure: --
Description: 06041-008G CP0325890
Notice: 14-13
93 Monolith Pinout: yes
Size: 32GB
Memory: Spectec
ID: 2c 64 44 4b
Controller: SM2702
XOR: 17FE70
Page structure: 1112_31
Description: --
Notice: --
94 Monolith Pinout: yes
Size: 16GB
Memory: Toshiba
ID: 98 3a 98 a3
Controller: SD_20 v2
XOR: 5061, adaptive
Page structure: 1148_1142
Description: --
Notice: --
95 Monolith Pinout: yes
Size: unknown
Memory: --
ID: --
Controller: --
XOR: --
Page structure: --
Description: --
Notice: short between VCC and GND
96 Monolith Pinout: yes
Size: 16GB
Memory: Hynix
ID: ad 3a 14 03
Controller: PS
XOR: 5061
Page structure: 1126_2
Description: --
Notice: --
97 Monolith Pinout: need verify
Size: unknown
Memory: --
ID: --
Controller: --
XOR: --
Page structure: --
Description: --
Notice: 3x13, VCC-GND short
98 Monolith Pinout: yes
Size: 4GB
Memory: Samsung
ID: ec d5 14 b6
Controller: --
XOR: --
Page structure: 528
Description: --
Notice: --
99 Monolith Pinout: yes
Size: 128GB
ID: 98 3e 96 93 7e 51
Controller: PS
XOR: FA9E80
Page structure: 1118_1102, 1106_1100
Description: Sandisk Extreme Pro
Notice: 4x10, 4x13 family
Photo: JeremyB
100 Monolith Pinout: yes
Size: 32GB, 64GB
Memory: Sandisk
ID: 45 3c 96 93 7e 51
Controller: --
XOR: --
Page structure: --
Description: --
Notice: 15-14, meet VCC-GND short
101 Monolith Pinout: yes
Size: 64GB, 128GB
Memory: Toshiba
ID: 98 3a 98 b3 76 72, 98 48 99 b3 7a 72
Controller: --
XOR: --
Page structure: 4568_4632
Description: --
Notice: LDPC, possible encryption, 4x13
102 Monolith Pinout: no
Size: 32GB
Memory: --
ID: --
Controller: --
XOR: --
Page structure: 4568_4632
Description: CG32G TVHN003392664
Notice: 2x22, LDPC
103 Monolith Pinout: yes
Size: 64GB
Memory: Toshiba
ID: 98 3a 94 93 76 51
Controller: PS8210
XOR: FA9E80
Page structure: 1106_1102
Description: SD64ANZA6 CG64G1802 TR4KA81039A03
Notice: 3x13, 2 channels
104 Monolith Pinout: yes
Size: 64GB
Memory: Toshiba
ID: 98 3c 98 b3 76 72
Controller: unknown
XOR: --
Page structure: 2280
Description: 3567486.10, 3785866.05
Notice: 3x13, LDPC
105 Monolith Pinout: yes
Size: 64GB, 128GB
ID: 45 3e 9a b3, 45 48 9a b3 7e 72
Controller: unknown
XOR: --
Page structure: 4576
Description: 128G
Notice: 2x16, LDPC, possible encryption
106 Monolith Pinout: yes
Size: 32GB
ID: 45 3c 98 b3 76 72
Controller: PS
XOR: 5061FD
Page structure: 1146
Description: --
Notice: Sector assembler
107 Monolith Pinout: yes
Size: 256GB
ID: 98 3e 99 b3 7a 72
Controller: PS?
XOR: --
Page structure: 4568_4632
Description: Kingston Canvas Select Plus, N0837-001.A00LFTS, B0837
Notice: LDPC, 3x13
108 Monolith Pinout: yes
Size: 16GB
ID: 45 4c a8 a2 76
Controller: Sandisk
XOR: C634
Page structure: 14_2048_230
Description: 016G
Notice: 14-14
109 Monolith Pinout: yes
Size: 128GB
ID: 98 48 98 03 76 e4
Controller: --
XOR: --
Page structure: 4568_4632
Description: PNY EliteX-PRO90
Notice: 4x10, but belong to 4x13 family, LDPC, read chip as SLC
110 Monolith Pinout: yes
Size: 64GB
ID: 98 3e 98 b3
Controller: --
XOR: --
Page structure: 4568_4632
Description: CG64G1905 TVHKA91046A01
Notice: 2x22, LDPC
Photo: JeremyB
111 Monolith Pinout: no
Size: 32GB
ID: --
Controller: --
XOR: --
Page structure: --
Description: --
Notice: H-line, X-line
112 Monolith Pinout: yes
Size: 128GB
ID: ec 1c 98 3f 84 cb
Controller: SM
XOR: D7AF47
Page structure: 1136_31
Description: Lexar 1667x
Notice: vias, X-line, cut layer
Photo: JeremyB
113 Monolith Pinout: yes
Size: 64GB,128GB
ID: 98 3a 98 b3 76 72, 98 3c 98 b3
Controller: --
XOR: --
Page structure: 4568_4632
Description: Sony SF-M64T, SF-M128T
Notice: 4x10, but belong to 4x13 family, LDPC, plastic hard to remove from PCB
114 Monolith Pinout: yes
Size: 4GB
ID: 45 c7 98 b2
Controller: --
XOR: --
Page structure: --
Description: M0945MBA73.02 004G
Notice: 14-13

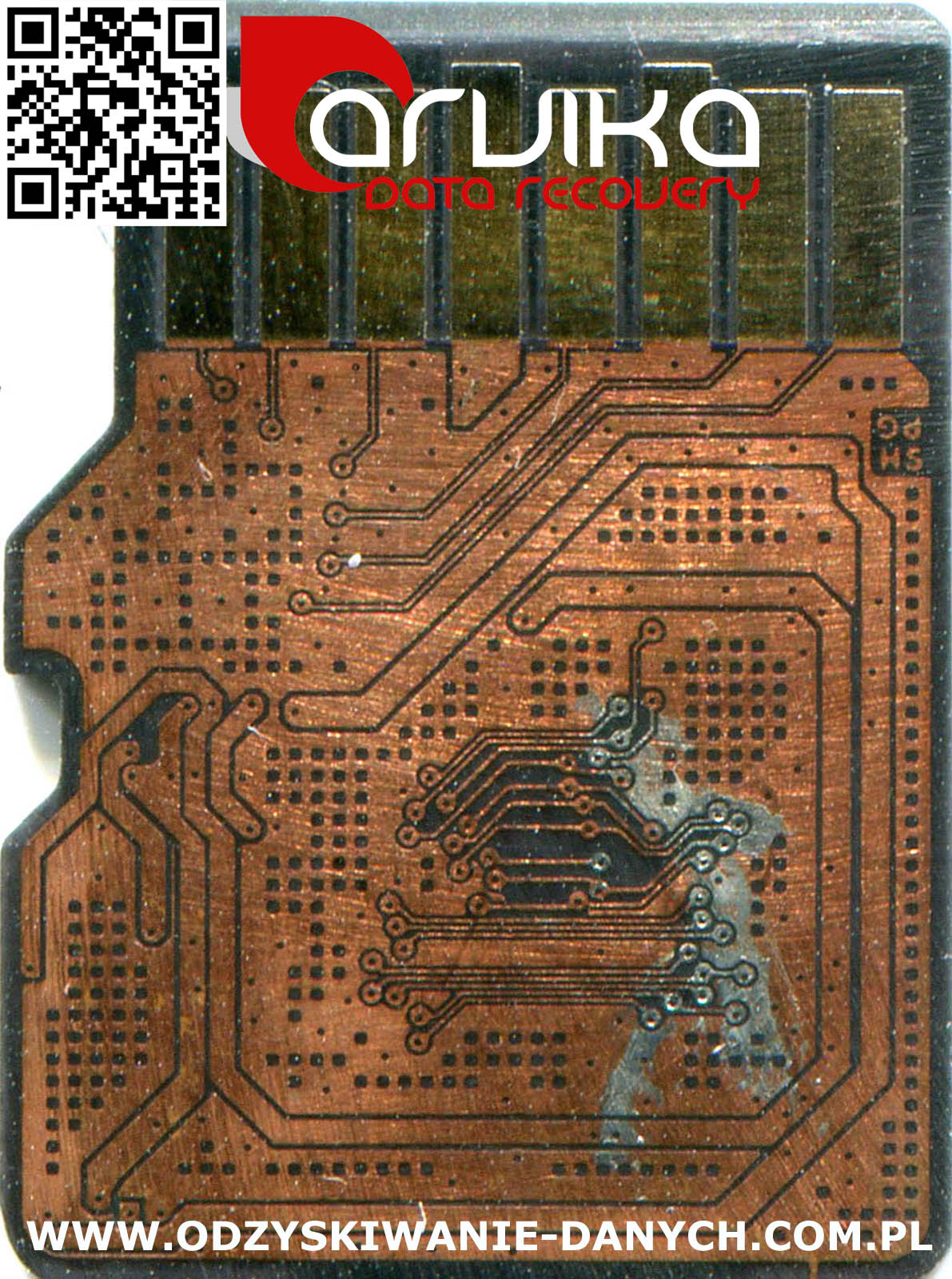

115 Monolith Pinout: yes
Size: 64GB
ID: 98 3c 98 b3 76 72
Controller: --
XOR: --
Page structure: 4568_4632
Description: Sony
Notice: 3x13, LDPC
Photo: JeremyB

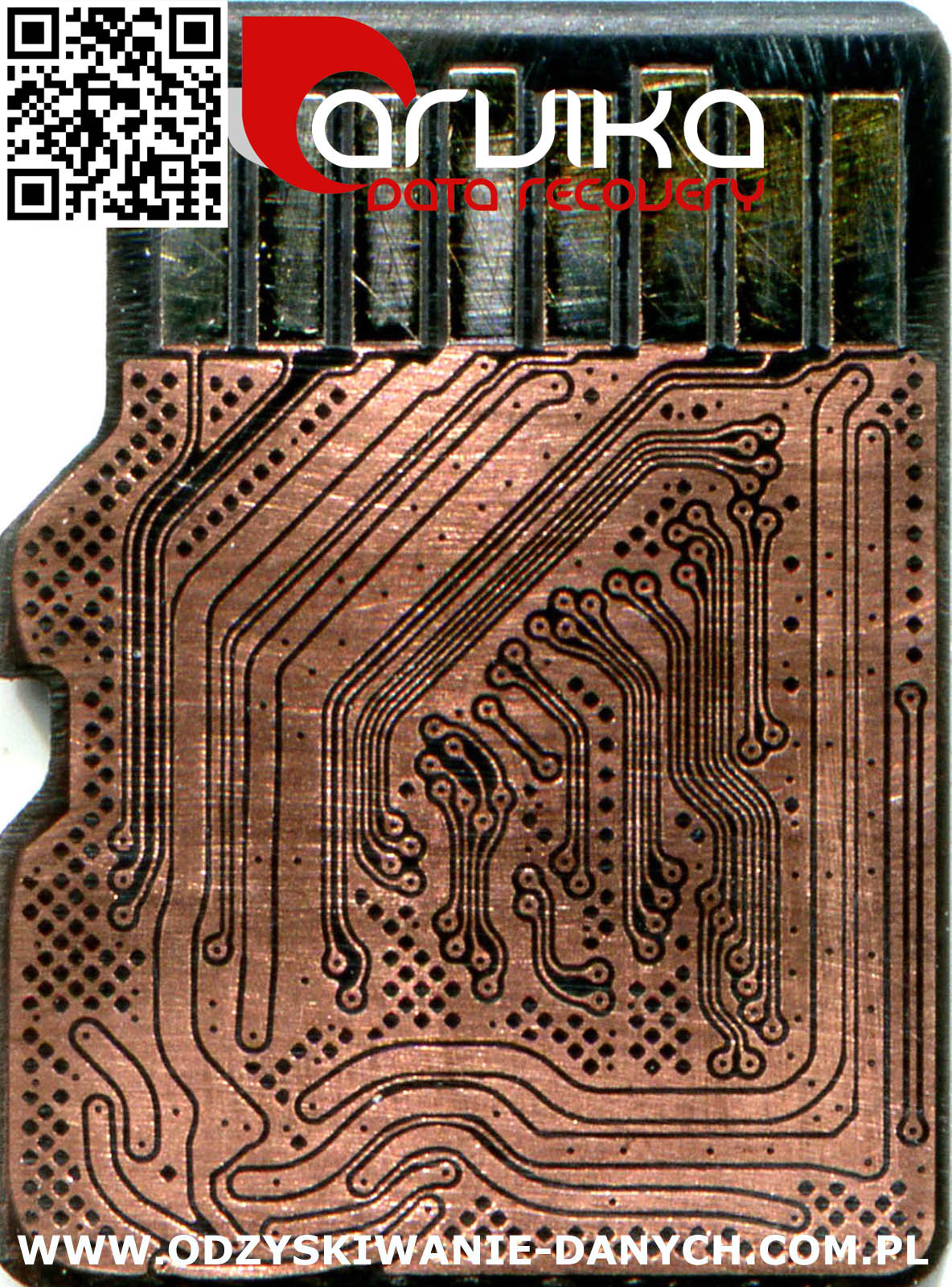

116 Monolith Pinout: yes
Size: 64GB
ID: 98 3c 95 93 7a 51
Controller: PS
XOR: FA9E80
Page structure: 1106_1100, 1118_1102
Description: Sandisk Extreme Pro
Notice: 4x10, 4x13 family

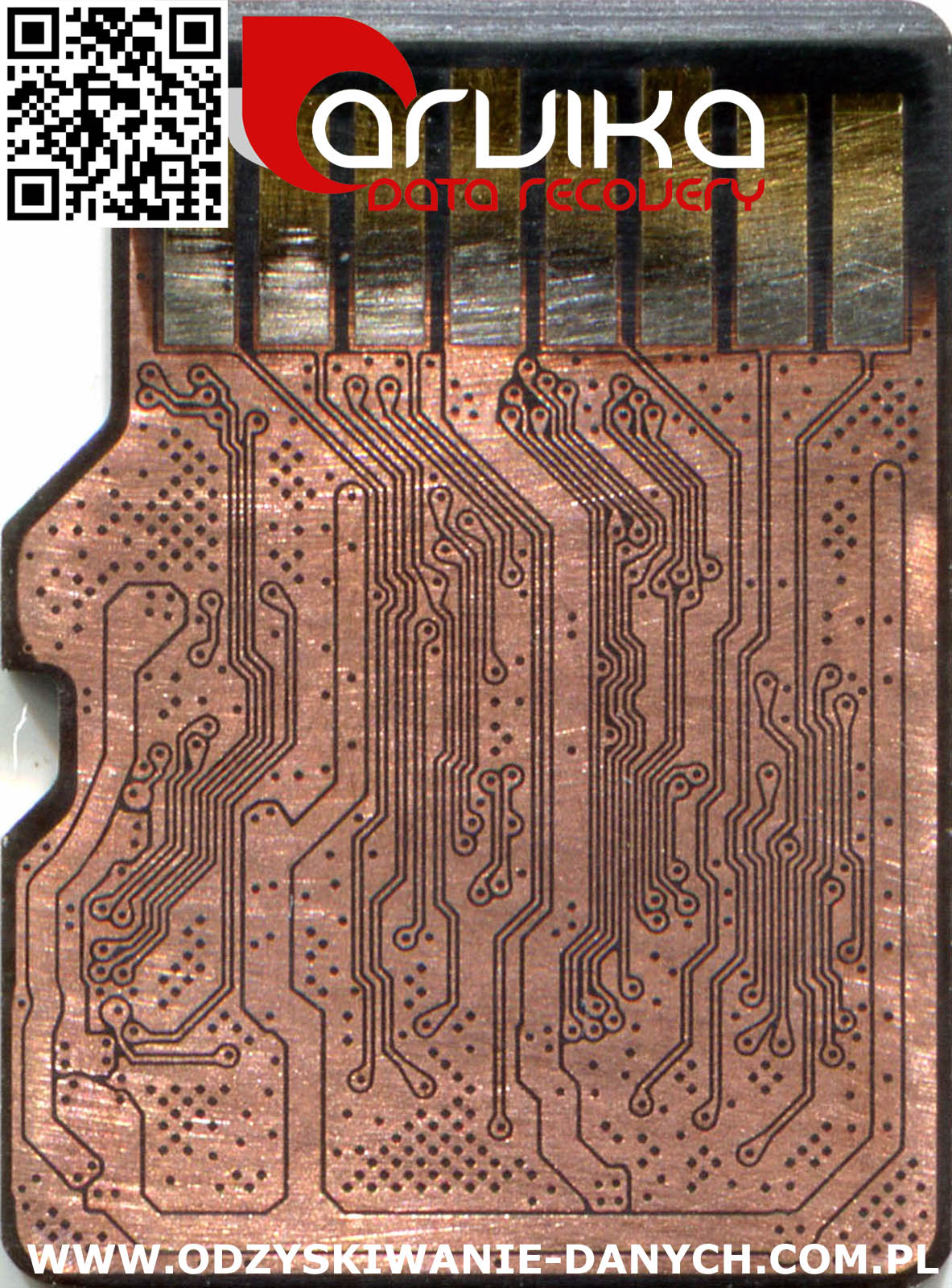

117 Monolith Pinout: yes
Size: 256GB
ID: 45 3e 98 b3 76 72
Controller: SM
XOR: E8018F
Page structure: 1142_32_32
Description: Transcend V30 U3
Notice: --

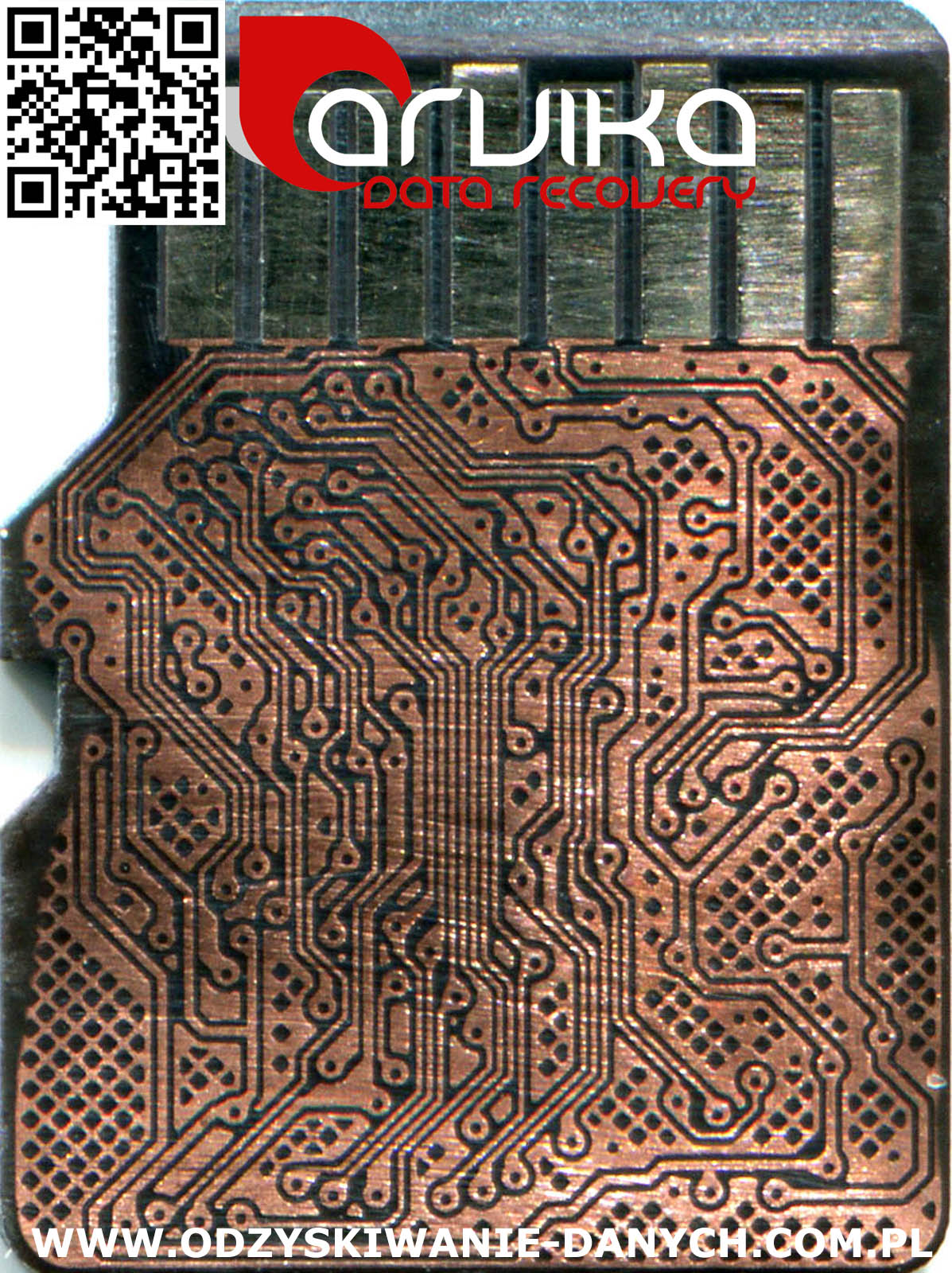

118 Monolith Pinout: yes
Size: 64GB
ID: ec 5c 98 bf 84 cc
Controller: SM
XOR: 9AF4A1
Page structure: 1148_32_32
Description: Lexar 633x 092540-V30-64GBS A, SM27xxBT, LSLX64G
Notice: DuoECC?

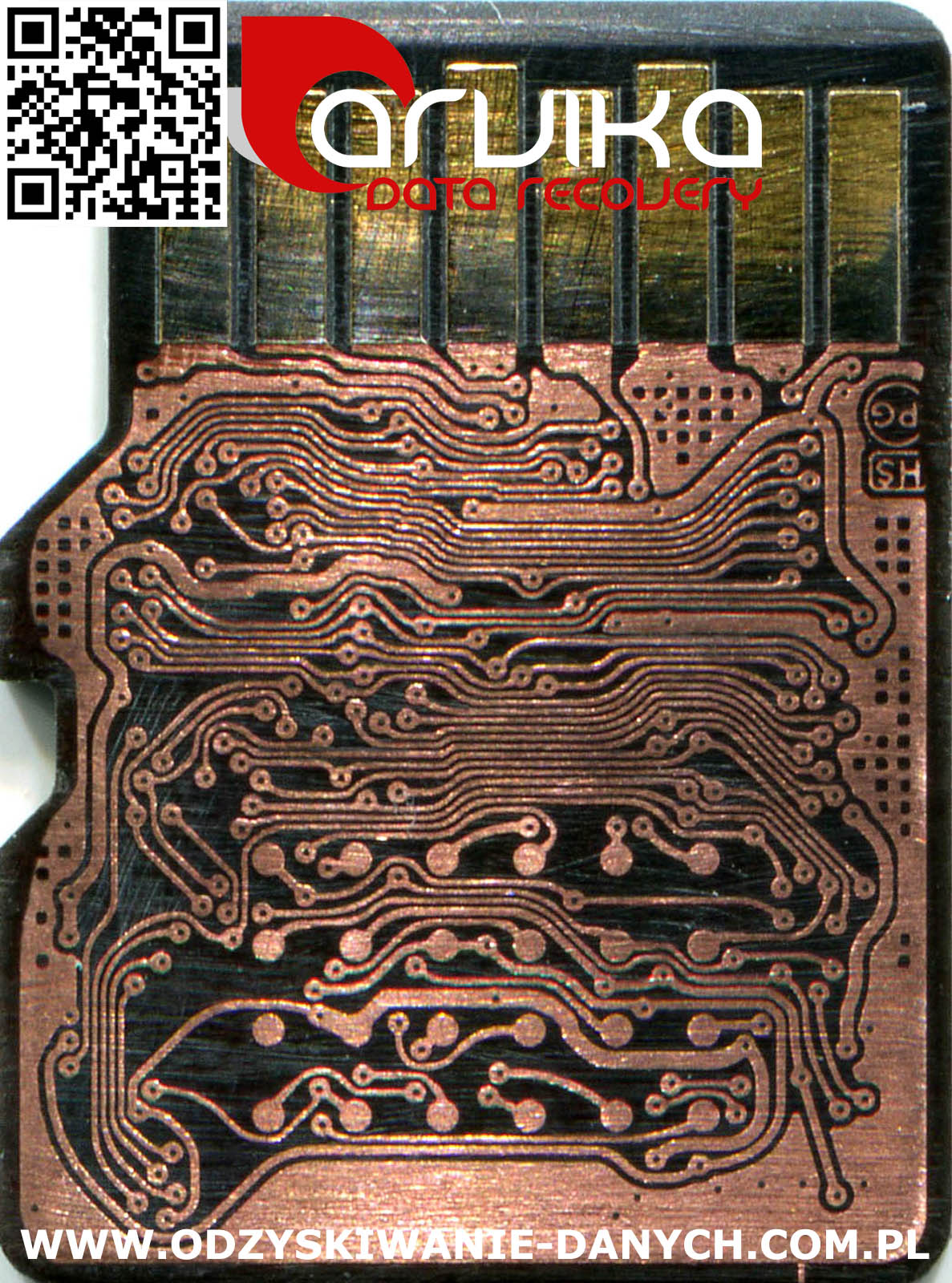

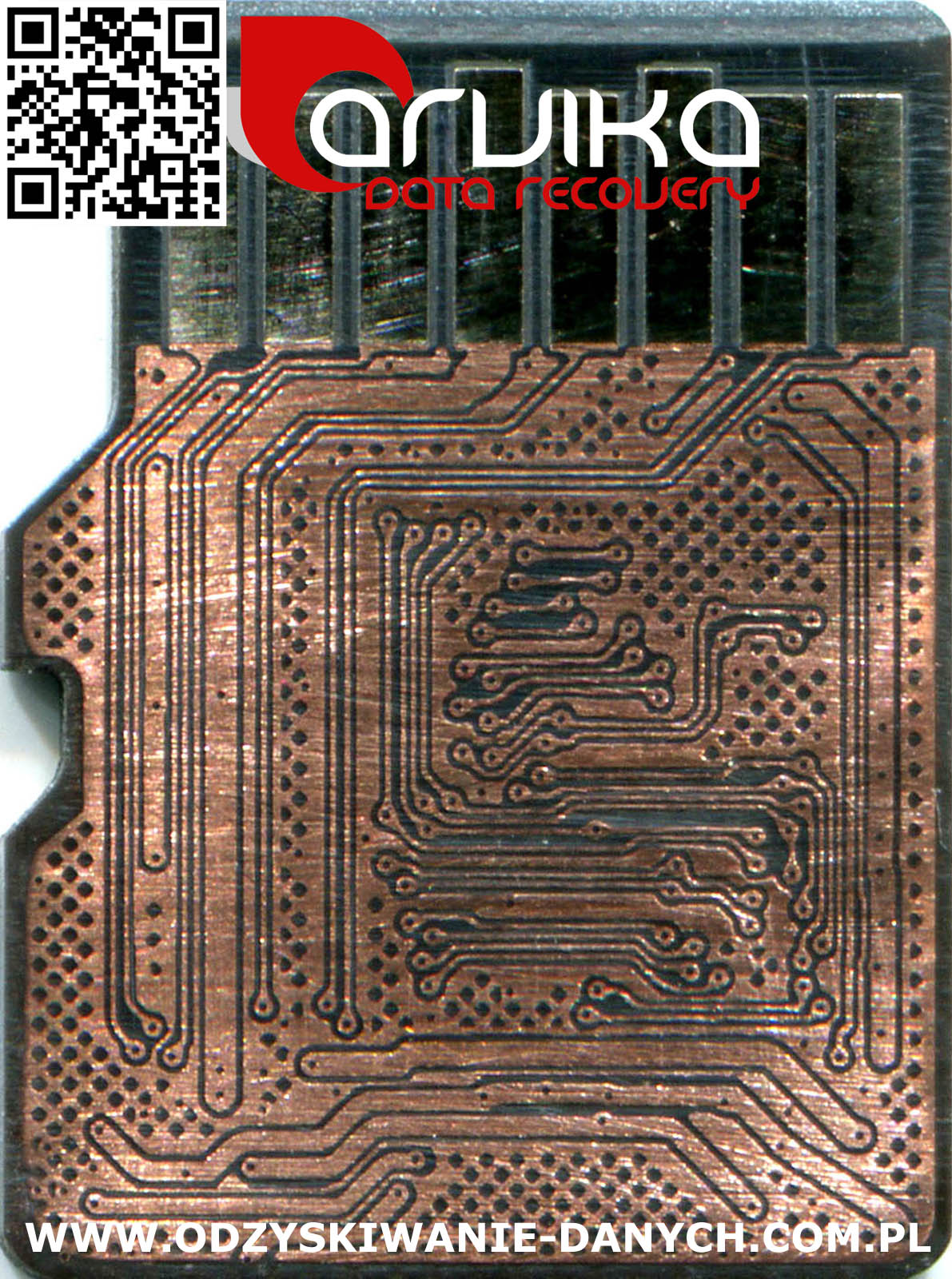

119 Monolith Pinout: yes
Size: 128GB
ID: ec 1c 98 3f 84 cb
Controller: SM
XOR: E8018F
Page structure: 1148_32_32
Description: Lexar 633x 00577-V30-128BSL A
Notice: pads

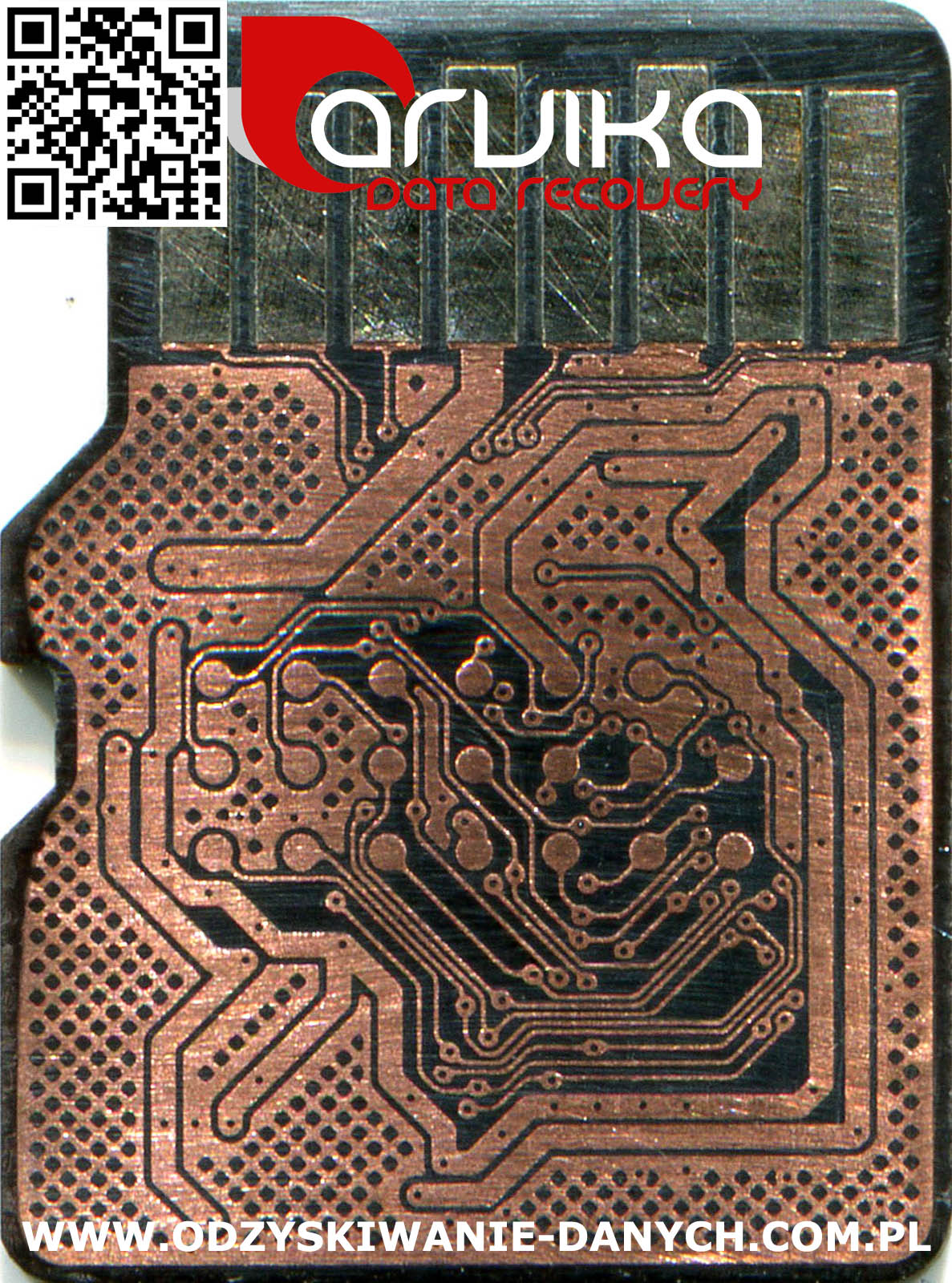

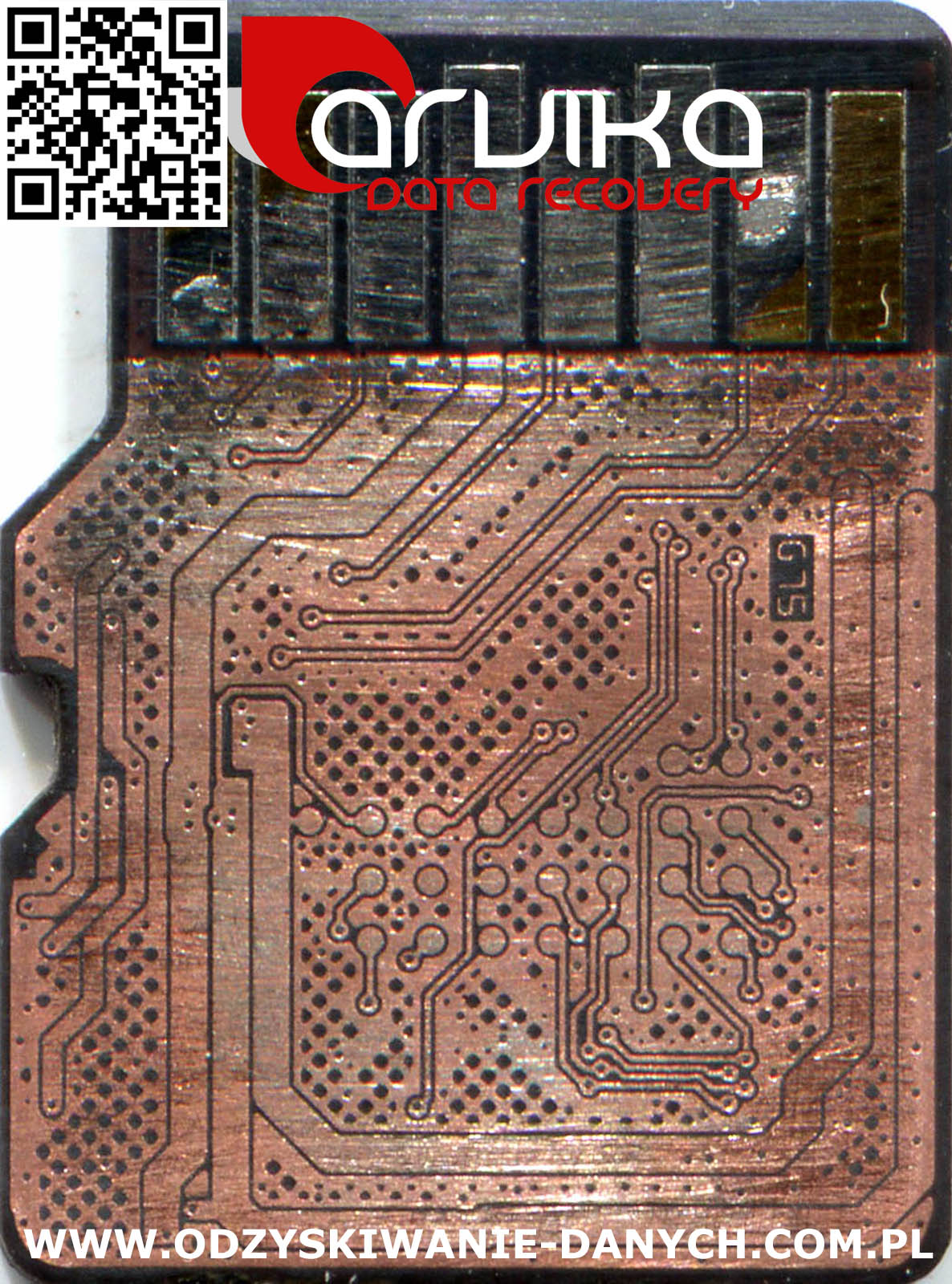

120 Monolith Pinout: yes
Size: 256GB
ID: 2c c4 08 32 a6 00 cb
Controller: SM
XOR: E8018F
Page structure: 1150_32_32
Description: Lexar 633x 00797-V30-256BML A
Notice: H-line






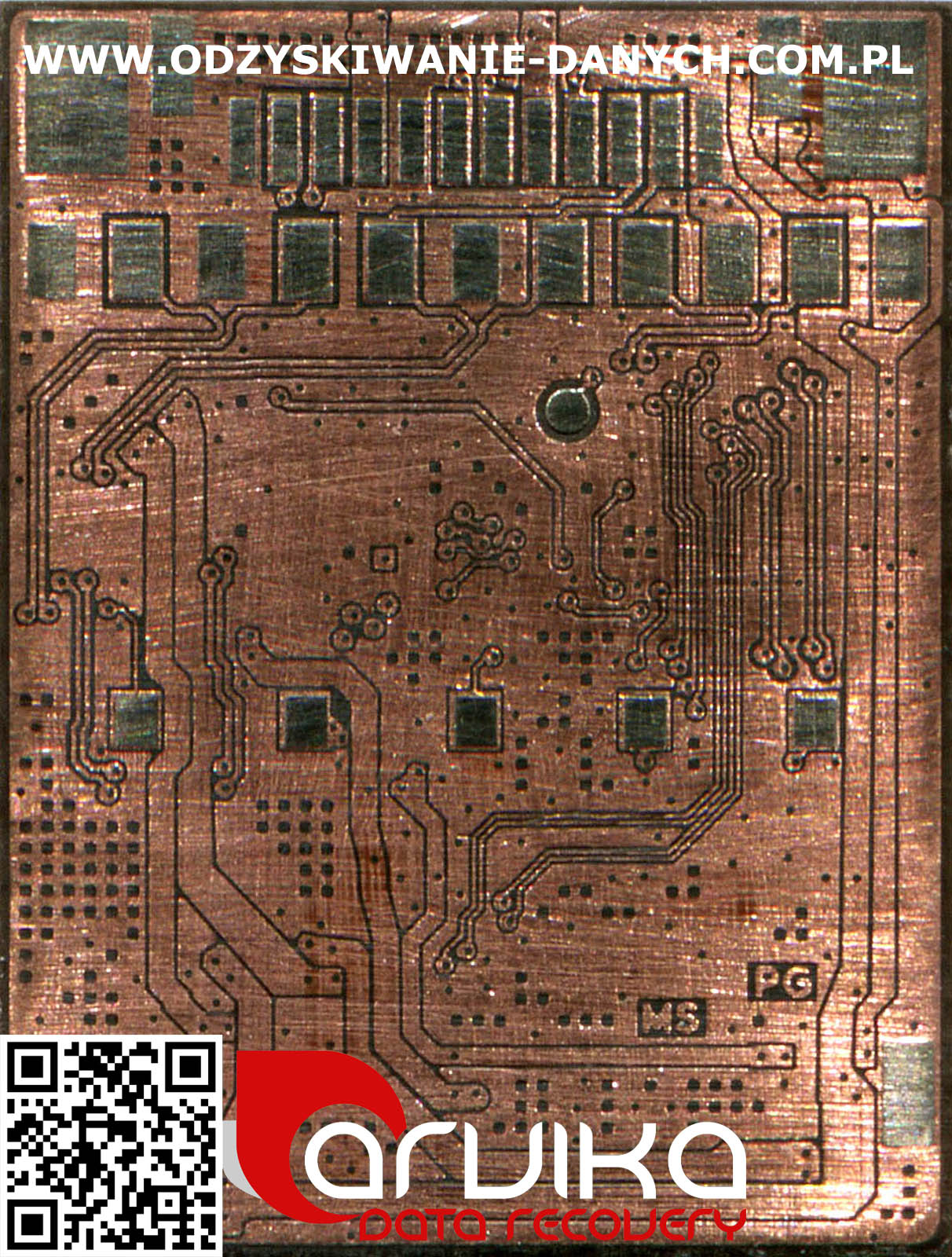

MS MONOLITHS

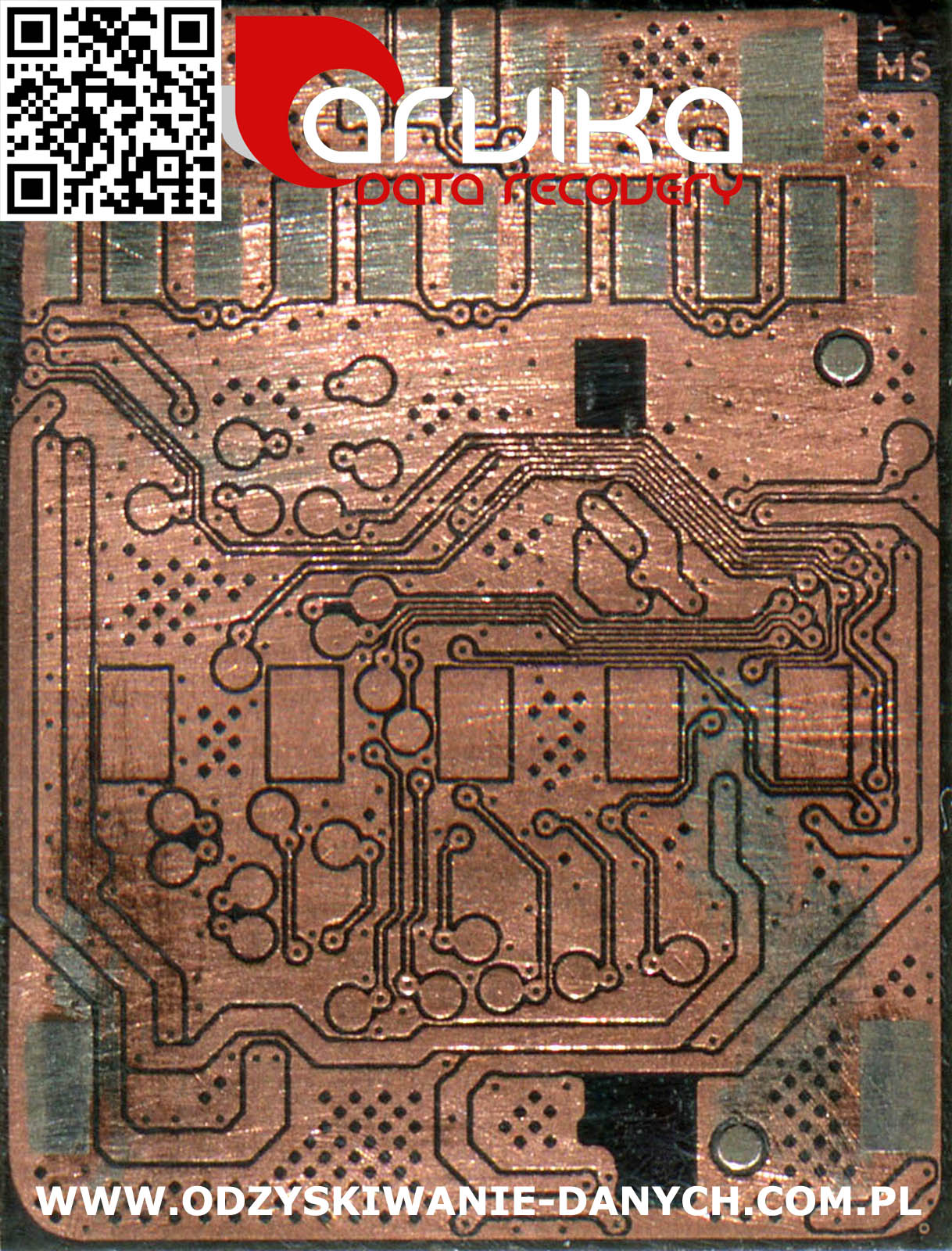

NR Monolith photo Info
1 Monolith Pinout: no
Size: 4GB
Memory: unknown
ID: unknown
Controller: unknown
Description: MS-MT4G
2 Monolith Pinout: yes
Size: 2GB
Memory: K9G8G08U0B
ID: ec d3 14 a5
Controller: MS
Description: 32114-2GBA-0609
3 Monolith Pinout: yes
Size: 2GB
Memory: 29F32G08CFABA
ID: 2c 48 04 46
Controller: MS
Description: 32142-2GBBA-0410
4 Monolith Pinout: yes
Size: 4GB
Memory: 29F32G08CFABA
ID: 2c 48 04 46
Controller: MS
Description: ---
Photo: GreyDKang
5 Monolith Pinout: yes, only 8 bit
Size: 8GB
Memory: SDTNMMCHSM-008G
ID: 45 ce 96 32
Controller: unknown
Description: Sandisk D0834 03434-008G
Notice: this flash has 16 bit pinout
6 Monolith Pinout: yes
Size: 2GB
Memory: 29F8G08MAD
ID: 2c d3 94 2d
Controller: MS
XOR: no XOR
Page structure: 528
Description: ---
Notice: can't find second bank
7 Monolith Pinout: yes
Size: 8GB
Memory: unknown
ID: unknown
Controller: MS
Description: ---
8 Monolith Pinout: yes
Size: 4GB
Memory: Sandisk
ID: 45 d7 98 92
Controller: 20-82-00511-1
Page structure: 14_2048_230
XOR: C634
Description: Sandisk 08795-004G
9 Monolith Pinout: yes, need verify
Size: 4GB
Memory: unknown
ID: unknown
Controller: MS
Description: --
10 Monolith Pinout: no
Size: 8GB
Memory: unknown
ID: unknown
Controller: MS
Description: Sandisk 03505-008G
11 Monolith Pinout: yes, only 8-bit
Size: 2GB
Memory: Sandisk
ID: 45 c5 94 32
Controller: MS
Page structure: 14_2048_80
XOR: C634C7
Description: Sandisk D1049 04531-002G
Notice: 16-bit chip
12 Monolith Pinout: no
Size: 4GB
Memory: Samsung
ID: ec d7 88 bf
Controller: SM3257
Page structure:1148_30
XOR: 498383, D7F241?
Description: MS-MT4G 0614-4-01 SN107EA
Notice: Need cut layer
13 Monolith Pinout: no
Size: 4GB
Memory: unknown
ID: unknown
Controller: MS
Page structure:--
XOR: --
Description: MS-MT4G 1009-1-13 H24U4GTD2MRA
Notice: --
14 Monolith Pinout: yes
Size: 32GB
Memory: Samsung
ID: ec d7 94 7a
Controller: SM3257
Page structure: 1094_31
XOR: 3B76D2
Description: MMBGK32GCACA-MF 142ST80556LS
Notice: 8CE
15 Monolith Pinout: yes, need verify
Size: 16GB
ID: ec d5 94 29
Controller: MS?
Page structure: 528
XOR: --
Description: --
Photo: Bolo
Notice: need special solution






eMMC chips

NR eMMC photo Info
1 Monolith Support: yes
Pinout for nand: no
Size: unknown
Memory: Toshiba THGAM0G6D4DBA14
ID: unknown
Controller: unknown
Notice: --
2 Monolith Support: yes
Pinout for nand: yes
Size: 4GB
Memory: H9TP32A4GDMC, H9TP32A8JDMC
ID: ad d7 94 da
Controller: AU blob - external controller
Description: eMMC BGA162 package, chip refurbished, connection via boundary pads
Notice: ID and size could be different
3 Monolith Support: yes
Pinout for nand: no
Size: 16GB
Memory: Samsung KMVYL000LM-B503
ID: unknown
Controller: unknown
Dimensions: 16x12mm
Notice: --
4 Monolith Support: yes
Pinout for nand: yes
Size: 16GB, 32GB
Memory: Toshiba THGBMAG7A2JBAIR, THGBM5G7A2JBAIR, THGBM5G8A4JBAIR
ID: 98 de 84 93
Controller: unknown
Page structure: 1102_1110
XOR: --
Notice: --
5 Monolith Support: yes
Pinout for nand: no
Size: 16GB
Memory: Samsung KLMAG2GE2A-A001, KLMBG4GE2A-A001
ID: unknown
Controller: unknown
Dimensions: --
Notice: --
6 Monolith Support: yes
Pinout for nand: yes
Size: 16GB
Memory: SEC KLMAG4FEAB AFEABB
ID: ec d7 94 7e
Controller: unknown
Page structure: 192empty_32_1096_32
XOR: --
Notice: --
7 Monolith Support: yes
Pinout for nand: yes
Size: 4GB
Memory: Samsung KMSJS000KA-B308
ID: ec d7 94 7e
Controller: unknown
Page structure: 42_1114
XOR: --
Notice: --
8 Monolith Support: yes
Pinout for nand: no
Size: 8GB
Memory: Samsung KLM8G4DEDD-A101 M8G4DD
ID: unknown
Controller: unknown
Page structure: --
XOR: --
Notice: --
9 Monolith Support: yes
Pinout for nand: yes
Size: 16GB
Memory: Samsung KMVTU000LM-B503
ID: ec d7 94 7e
Controller: unknown
Page structure: 24_1096_24
XOR: --
Notice: --
10 Monolith Support: yes
Pinout for nand: no
Size: 64GB
Memory: Samsung KMV1W000LA-B902
ID: unknown
Controller: unknown
Dimensions: --
Notice: --
11 Monolith Support: yes
Pinout for nand: no
Size: unknown
Memory: Micron JW244
ID: unknown
Controller: unknown
Dimensions: --
Notice: --
12 Monolith Support: yes
Pinout for nand: yes
Size: 8GB
Memory: Samsung KMCEN0000M-S998
ID: ec d7 55 b6
Controller: unknown
Page structure: 520_40
XOR: unknown
Notice: --
13 Monolith Support: yes
Pinout for nand: yes
Size: 4GB
Memory: Sandisk SD5DH26A-4G
ID: Sandisk 45 d7 94 32
Controller: 20-82-00192-3
Page structure: 14_2048_146
XOR: C634C7
Dimensions: --
Notice: --
14 Monolith Support: yes
Pinout for nand: yes
Size: 8GB
Memory: SEC KLM8G2YE4C
ID: ec d7 98 ce
Controller: unknown
Page structure: 24_1136
XOR: --
Dimensions: --
Notice: --
15 Monolith Support: yes
Pinout for nand: no
Size: 32GB
Memory: Micron JW742 MTFC32GLTDI-WT
ID: unknown
Controller: unknown
Dimensions: --
Notice: --
16 Monolith Support: yes
Pinout for nand: no
Size: 8GB
Memory: KLM8G2FEJA-A002
ID: unknown
Controller: unknown
Dimensions: --
Notice: --
17 Monolith Support: yes
Pinout for nand: yes
Size: 32GB
Memory: THGBM4G8D4GBAIE
ID: 98 3a 95 82
Controller: Phison
Page structure: 1102_1114
XOR: 61059C
Notice: --
18 Monolith Support: yes
Pinout for nand: yes
Size: 16GB
Memory: THGBMBG7D2KBAIL, THGBMBG7C2KBAIL
ID: 98 de 94 93
Controller: Phison
Page structure: 1102_1110
XOR: FA9E80
Notice: --
19 Monolith Support: yes
Pinout for nand: yes
Size: 8GB 16GB
Memory: Samsung KMQ7X000SA-B315, KMQ72000SM-B316, KMR820001M-B609
ID: ec de 98 de, ec de 88 bf
Controller: unknown
Page structure: 28empty_36_1136_36
XOR: --
Notice: BGA 221
20 Monolith Support: yes
Pinout for nand: no
Size: 8GB
Memory: Micron JY941 MT29TZZZ8D5BKFAH
ID: ec de 88 bf
Controller: unknown
Dimensions: --
Notice: BGA 221
21 Monolith Support: yes
Pinout for nand: no
Size: 32GB
Memory: Sandisk SDIN9DW4-32G
ID: unknown
Controller: unknown
Dimensions: --
Notice: --
22 Monolith Support: yes
Pinout for nand: yes
Size: 32GB
Memory: Toshiba THGBMFG8C4LBAIR
ID: unknown
Controller: unknown
Dimensions: --
Notice: --
23 Monolith Support: yes
Pinout for nand: yes
Size: 8GB, 16GB
Memory: Samsung KMQN10006M-B318, KMQ310006A-B419
ID: ec de 94 f3
Controller: unknown
Page structure: 64_1104_128_1104_64
XOR: --
Notice: --
24 Monolith Support: yes
Pinout for nand: yes
Size: 16GB
Memory: Samsung KLMAG2GEAC-B001
ID: ec de a4 32
Controller: unknown
Page structure: 96_1096
XOR: 3CD9
Dimensions: --
Notice: --
25 Monolith Support: yes
Pinout for nand: no
Size: 32GB
Memory: Toshiba THGBMBG8D4KBAIR
ID: unknown
Controller: unknown
Dimensions: --
Notice: --
26 Monolith Support: yes
Pinout for nand: no
Size: 64GB
Memory: Samsung KMK1U000VM-BA04
ID: unknown
Controller: unknown
Dimensions: --
Notice: BGA 162
27 Monolith Support: yes
Pinout for nand: yes
Size: 8GB
Memory: Samsung KLM8G1GEND-B031
ID: ec de 94 f3
Controller: unknown
Page structure: 64_1104_128_1104_64
XOR: --
Notice: --
28 Monolith Support: yes
Pinout for nand: no
Size: 8GB
Memory: Hynix H9TQ64AAETMC
ID: unknown
Controller: unknown
Dimensions: --
Notice: --
29 Monolith Support: yes
Pinout for nand: no
Size: 8GB
Memory: Kingston 08EMCP08-EL3CV100
ID: unknown
Controller: unknown
Dimensions: --
Notice: --
30 Monolith Support: yes
Pinout for nand: no
Size: 8GB
Memory: Samsung KMQN10006B-B318
ID: unknown
Controller: unknown
Dimensions: --
Notice: --
31 Monolith Support: yes
Pinout for nand: no
Size: unknown
Memory: Samsung KAV00Q009A or KAV000009A
ID: unknown
Controller: unknown
Dimensions: --
Notice: --
32 Monolith Support: yes
Pinout for nand: yes
Size: 16GB
Memory: SKhynix H9TQ17ABJTMCURKUM
ID: ad de 14 a7 42
Controller: unknown
Page structure: 32_1126
XOR: F41739, need verify
Notice: --
33 Monolith Support: yes
Pinout for nand: yes
Size: 8GB
Memory: SKhynix H26M42003GMR
ID: ad d7 94 91
Controller: SM
Page structure: 32_1094
XOR: 498383
Notice: --
34 Monolith Support: yes
Pinout for nand: yes
Size: 8GB
Memory: Samsung KLM8G1WEMB-B031, KLM8G1GEAC-B001
ID: ec de 98 de, ec de a4 32
Controller: unknown
Page structure: 66_1136_1172 (to verify)
Notice: --
35 Monolith Support: yes
Pinout for nand: yes
Size: 8GB, 32GB
Memory: Sandisk SDIN7DU2-8G, SDIN7DP4-32G
ID: 45 de 84 83
Controller: Sandisk
Page structure: 14_2048_146
Dimensions: --
Notice: --
36 Monolith Support: yes
Pinout for nand: no
Size: 32GB
Memory: SKhynix H26M64003DQR
ID: unknown
Controller: unknown
Dimensions: --
Notice: --
37 Monolith Support: yes
Pinout for nand: no
Size: 8GB
Memory: Samsung KLM8G2FE3B-B001
ID: unknown
Controller: unknown
Dimensions: --
Notice: --
38 Monolith Support: yes
Pinout for nand: no
Size: 8GB
Memory: Micron JW715
ID: unknown
Controller: unknown
Dimensions: --
Notice: --
39 Monolith Support: yes
Pinout for nand: no
Size: 8GB
Memory: Samsung KMQ7X000SA-B315
ID: unknown
Controller: unknown
Dimensions: --
Notice: --
40 Monolith Support: yes
Pinout for nand: yes
Size: 4GB
Memory: Sandisk SDIN5D2-4G
ID: unknown
Controller: unknown
Dimensions: --
Notice: --
41 Monolith Support: yes
Pinout for nand: no
Size: 2GB
Memory: Samsung K5W2G12ACB-BL50
ID: unknown
Controller: unknown
Dimensions: --
Notice: --
42 Monolith Support: yes
Pinout for nand: yes
Size: 8GB, 32GB
Memory: SKhynix H26M41103HPR, H26M64103EMR
ID: ad de 14 a7
Controller: SK?
Page structure: 32_1126
XOR: --
Dimensions: --
Notice: --
43 Monolith Support: yes
Pinout for nand: yes
Size: 16GB
Memory: Toshiba THGBMAG7B2JBAIM, THGBM5G7B2JBAIM
ID: 98 de 94 93
Controller: unknown
Page structure: 1102_1110
XOR: 05617F
Notice: --
44 Monolith Support: yes
Pinout for nand: no
Size: 16GB
Memory: Samsung KMQ310013M-B419
ID: unknown
Controller: unknown
Dimensions: --
Notice: --
45 Monolith Support: yes
Pinout for nand: yes
Size: 16GB
Memory: Toshiba THGBM5G7A4JBA4W
ID: 98 d7 84 93
Controller: unknown
Page structure: 1102_1110
XOR: 05617F
Notice: --
46 Monolith Support: yes
Pinout for nand: no
Size: 4GB
Memory: Samsung KMN5X000ZM-B209, KMK5X000YM-B314, KMK5X000VM-B314
ID: unknown
Controller: unknown
Page structure: --
XOR: --
Notice: --
47 Monolith Support: yes
Pinout for nand: yes
Size: 16GB
Memory: SKhynix H26M52103FMR
ID: ad de 14 a7
Controller: SK?
Page structure: 32_1126
XOR: F41739
Notice: --
48 Monolith Support: yes
Pinout for nand: no
Size: 16GB
Memory: SKhynix H9TQ17ABJTBCURKUM
ID: unknown
Controller: unknown
Page structure: --
XOR: --
Notice: --
49 Monolith Support: yes
Pinout for nand: no
Size: 16GB
Memory: Micron JZ011 MT29TZZZ7D6EKKFB-107
ID: unknown
Controller: unknown
Page structure: --
XOR: --
Notice: --
50 Monolith Support: yes
Pinout for nand: no
Size: 32GB
Memory: Samsung KMR210008M-A805
ID: unknown
Controller: unknown
Page structure: --
XOR: --
Notice: BGA529
51 Monolith Support: yes
Pinout for nand: yes, need verify
Size: 4GB
Memory: Hynix H9DP32A4JJACGRKEM
ID: unknown
Controller: unknown
Page structure: --
XOR: --
Notice: --
52 Monolith Support: yes
Pinout for nand: yes
Size: 4GB
Memory: Hynix H9DP32A4JJBCGRKEM
ID: ad d7 94 91
Controller: SM
Page structure: 1094_26
XOR: B63D7C
Notice: --
53 Monolith Support: yes
Pinout for nand: yes, need verify
Size: 32GB
Memory: Toshiba THGBMAG8A4JBA4R
ID: unknown
Controller: unknown
Page structure: --
XOR: --
Notice: --
54 Monolith Support: yes
Pinout for nand: yes
Size: 2GB
Memory: Sandisk SDIN5D2-2G
ID: unknown
Controller: Sandisk
Page structure: --
XOR: --
Notice: --
55 Monolith Support: yes
Pinout for nand: yes
Size: 4GB
Memory: Sandisk SDIN7DP2-4G
ID: unknown
Controller: Sandisk
Page structure: --
XOR: --
Notice: --
56 Monolith Support: yes
Pinout for nand: yes
Size: 8GB
Memory: Sandisk SDIN7DU2-8G
ID: unknown
Controller: Sandisk
Page structure: --
XOR: --
Notice: --
57 Monolith Support: yes
Pinout for nand: no
Size: 4GB
Memory: Samsung KLM4G1YEMD-B031
ID: unknown
Controller: unknown
Page structure: --
XOR: --
Notice: --
58 Monolith Support: yes
Pinout for nand: yes
Size: 16GB
Memory: Samsung KLMAG4FE4B-B002
ID: ec d7 94 7e
Controller: SK?
Page structure: 24_1096_24
XOR: adapive?
Notice: --
59 Monolith Support: yes
Pinout for nand: yes
Size: 2GB
Memory: Samsung KLM2G1DEHE-B101
ID: ec d5 84 72
Controller: unknown
Page structure: --
XOR: --
Notice: --
60 Monolith Support: yes
Pinout for nand: yes
Size: 16GB
Memory: Samsung KLMAG2GE4A-A001-A002
ID: ec de a4 7a
Controller: unknown
Page structure: --
XOR: --
Notice: --
61 Monolith Support: yes
Pinout for nand: yes
Size: 16GB
Memory: Samsung KMVIS000LM-B503
ID: ec de d5 7e
Controller: unknown
Page structure: 42_1114
XOR: adaptive?
Notice: --
62 Monolith Support: yes
Pinout for nand: yes
Size: 16GB
Memory: Samsung KMH0E0000M-Z998
ID: ec d7 55 b6
Controller: unknown
Page structure: 520_25?
XOR: no XOR
Notice: --
63 Monolith Support: yes
Pinout for nand: yes
Size: 16GB, 32GB
Memory: Hynix H26M52002EQR-229A, H26M64002DQR-243A
ID: ad de 94 da
Controller: unknown
Page structure: 1094_26
XOR: B63D7C
Notice: --
64 Monolith Support: yes
Pinout for nand: yes
Size: 4GB
Memory: Samsung KLM4G1FE3B-C001
ID: ec d7 94 7e
Controller: unknown
Page structure: 42_1114
XOR: unknown
Notice: --
65 Monolith Support: yes
Pinout for nand: yes
Size: 8GB
Memory: Kingston KE4CN3K6A
ID: 98 de 84 93
Controller: PS
Page structure: 1106_1100
XOR: FA9E80
Notice: --
66 Monolith Support: yes
Pinout for nand: yes, for one CE
Size: 4GB
Memory: Micron JW414 MTFC32GHKDN-ET
ID: 2c 48 04 4a
Controller: SD_20 v2
Page structure: 1076_1070
XOR: --
Notice: --
67 Monolith Support: yes
Pinout for nand: yes
Size: 16GB, 32GB
Memory: Samsung KMVNW000LM-B206, KMV2W000LM-B506
ID: ec de a4 32
Controller: unknown
Page structure: 64empty_32_1096_30
XOR: grid?
Notice: --
68 Monolith Support: yes
Pinout for nand: yes
Size: 4GB
Memory: SKhynix H9TP32A8JDBC
ID: ad d7 94 91
Controller: unknown
Page structure: 32_1094
XOR: 3F6262, need verify
Notice: --
69 Monolith Support: yes
Pinout for nand: no
Size: 4GB, 8GB
Memory: Kingston 04EMCP04-NL2AS100, 08EMCP08-EL2BV100
ID: unknown
Controller: unknown
Page structure: --
XOR: --
Description: 2400266-001.A00G-A, 2400306-002.A00G-A
Notice: --
70 Monolith Support: yes
Pinout for nand: no
Size: 8GB
Memory: Kingston KE4CN2L2HA8A2A
ID: unknown
Controller: unknown
Page structure: --
XOR: --
Description: 2400118-001.A00G
Notice: --
71 Monolith Support: yes
Pinout for nand: yes
Size: 4GB
Memory: Samsung KMNJS000ZM-B205, KMKJS000VM-B309
ID: ec d7 94 7e
Controller: unknown
Page structure: 42_1114
XOR: adaptive?
Notice: --
72 Monolith Support: yes
Pinout for nand: no
Size: 4GB
Memory: SKhynix H9TP32A4GDDC-PRKGM
ID: unknown
Controller: unknown
Page structure: --
XOR: --
Notice: --
73 Monolith Support: yes
Pinout for nand: no
Size: 8GB
Memory: SKhynix H9TQ64A8GTMC-URKUM
ID: unknown
Controller: unknown
Page structure: --
XOR: --
Notice: --
74 Monolith Support: yes
Pinout for nand: no
Size: 4GB
Memory: Sandisk SD7DP28C-4G
ID: unknown
Controller: unknown
Page structure: --
XOR: --
Notice: --
75 Monolith Support: yes
Pinout for nand: yes, need verify
Size: 4GB
Memory: Sandisk SDIN4C2-4G
ID: unknown
Controller: unknown
Page structure: --
XOR: --
Notice: --
76 Monolith Support: yes
Pinout for nand: no
Size: 4GB
Memory: Samsung KMK5U000VM-B309
ID: unknown
Controller: unknown
Page structure: --
XOR: --
Notice: --
77 Monolith Support: yes
Pinout for nand: yes
Size: 16GB
Memory: Samsung KMR31001M-B611
ID: ec de 94 f3
Controller: unknown
Page structure: 64_1104_128_1104_64
XOR: --
Notice: --
78 Monolith Support: yes
Pinout for nand: no
Size: 4GB, not sure
Memory: Micron JW796 MT29KZZZ4D4TGFAK-5
ID: unknown
Controller: unknown
Page structure: --
XOR: --
Notice: --
79 Monolith Support: yes
Pinout for nand: no
Size: 2GB
Memory: Samsung KAT00F00PM-S4YY
ID: unknown
Controller: unknown
Page structure: --
XOR: --
Notice: --
80 Monolith Support: yes
Pinout for nand: no
Size: 16GB
Memory: Sandisk SDIN9DS2-16G
ID: unknown
Controller: unknown
Page structure: --
XOR: --
Notice: --
81 Monolith Support: yes
Pinout for nand: yes
Size: 8GB
Memory: Toshiba THGBM4G6D2HBAIR
ID: 98 d7 94 32
Controller: PS
Page structure: 1102_1114
XOR: 61059C
Notice: --
82 Monolith Support: yes
Pinout for nand: yes, need verify
Size: 8GB
Memory: Sandisk SDIN5C2-8G
ID: unknown
Controller: unknown
Page structure: --
XOR: --
Notice: --
83 Monolith Support: yes
Pinout for nand: yes, need verify
Size: 8GB
Memory: Sandisk SDIN5C2-8G v2
ID: unknown
Controller: unknown
Page structure: --
XOR: --
Notice: --
84 Monolith Support: yes
Pinout for nand: no
Size: 4GB
Memory: Samsung KMJJS000WA-B409
ID: unknown
Controller: unknown
Page structure: --
XOR: --
Notice: --
85 Monolith Support: yes
Pinout for nand: yes
Size: 4GB
Memory: Samsung KMSJS000KM-B308
ID: ec d7 94 7e
Controller: unknown
Page structure: 42_1114
XOR: adaptive?
Notice: --
86 Monolith Support: yes
Pinout for nand: yes
Size: 4GB
Memory: Samsung KMJ5U000WB-B409
ID: ec d7 98 ce
Controller: unknown
Page structure: 24_1136
XOR: --
Notice: --
87 Monolith Support: yes
Pinout for nand: no
Size: 4GB
Memory: Samsung KMK5U000VM-B309
ID: unknown
Controller: unknown
Page structure: --
XOR:
Notice: --
88 Monolith Support: yes
Pinout for nand: yes
Size: 4GB
Memory: TYCOFH121626RA
ID: 98 d7 84 93 72 08
Controller: PS
Page structure: 1102_1110
XOR: FA9E80 mod
Notice: --






NANO NM CARD MONOLITHS

NR Monolith photo Info
1 Monolith Pinout: no
Size: 128GB
ID: --
Controller: --
Page structure: --
XOR: --
Description: M1DD018081491, Huawei NM card



NAND chips

NR NAND photo Info
1 Monolith Pinout: yes
Size: 512MB
Memory: J42P4GX16
ID: 2c bc 90 55
Controller: ---
Description: BGA137 pins
Notice: 16bit bus, ID and size could be different
2 Monolith Pinout: yes
Size: ---
Memory: ---
ID: ---
Controller: ---
Description: BGA224 pins
Notice: 16bit bus, ID and size could be different
3 Monolith Pinout: yes
Size: ---
Memory: K9GBG08U0A
ID: ec d7 94 7a
Controller: ---
Description: 20 pins, blob nand :)
Notice: ID and size could be different
4 Monolith Pinout: yes
Size: 8GB
Memory: ZDYK9ACGD8U0A
ID: ec de 98 ce
Controller: ---
Description: TSOP48 package, but completely different pinout
Notice: ID and size could be different, nands can have other description e.g. ZDYTC58NVG6T2HTA00
5 Monolith Pinout: yes
Size: 8GB, 16GB
Memory: SDTNNMBHSM-008G, SDTNNMCHSM-016G
ID: 45 ce 95 32, 45 4a 96 32
Controller: ---
Description: BGA154 package
Notice: 16-8 bit bus, ID and size could be different
6 Monolith Pinout: yes
Size: different
Memory: ---
ID: different
Controller: ---
Description: BGA130 package
Notice: ID and size could be different
7 Monolith Pinout: no
Size: different
Memory: ---
ID: different
Controller: ---
Description: BGA199 package
Notice: ID and size could be different
Photo: book14
8 Monolith Pinout: yes
Size: 4GB
Memory: DFL32GWD8S1GM1 H04G110808AA
ID: ec d7 14 76
Controller: ---
Description: TSOP56 package, but completely different pinout
Notice: ID and size could be different


Opening Hours

  • iconMonday - Friday09:00 AM - 17:00 PM
  • iconEmergency24/7

Get In Touch

  • icon+48 533 584 504For Information
  • iconEmail Addressbiuro@odzyskiwanie-danych.com.pl
